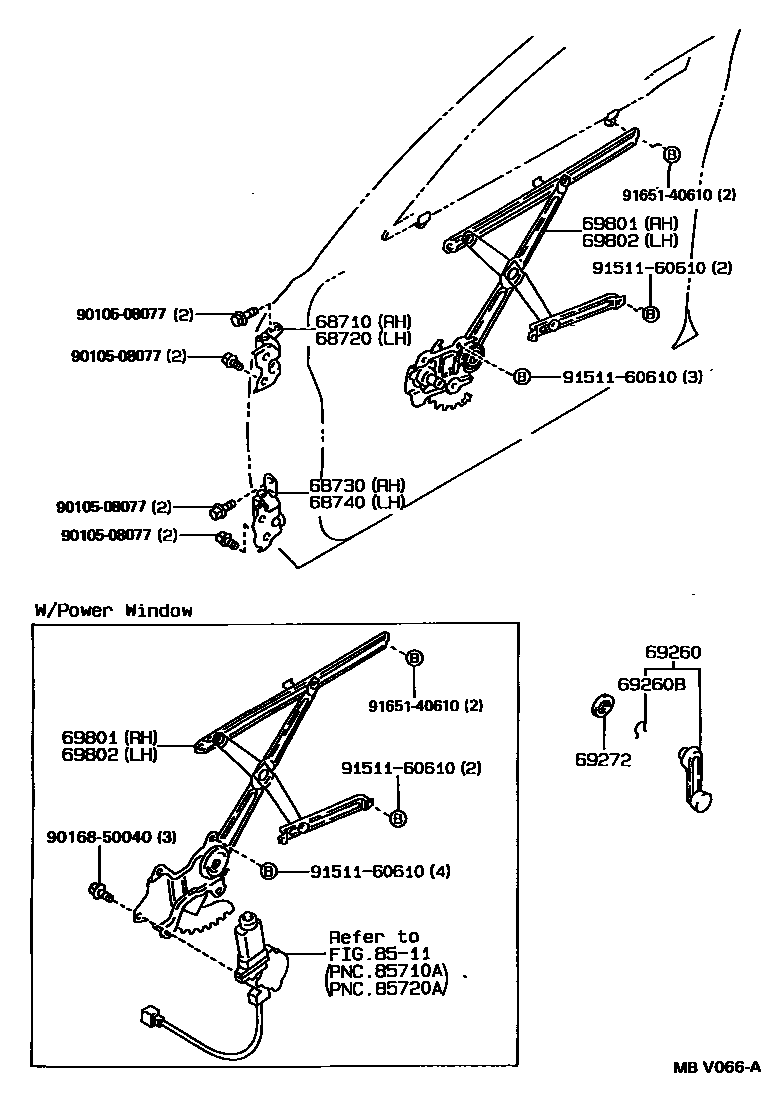

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12110iAE95¥2,990199009-199308

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12110iAE95¥2,990199009-199308

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12070iAE95¥2,980199009-199308

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12070iAE95¥2,980199009-199308

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-43iAE95..DX199009-199308

GRAY,TRIM1#

sub69260-10040¥1,610

sub69260-16010¥1,610

main69260-10040-58iAE95..DX199009-199308

DARK BLUE,TRIM8#

sub69260-10040¥1,610

sub69260-16010¥1,610

main69260-12080-03iAE95..SR5199009-199208

SHADOW GRAY,TRIM1#

sub69260-12080¥1,610

main69260-12080-04iAE95..SR5199009-199208

BLUE,TRIM8#

sub69260-12080¥1,610

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAE95..DX¥180199009-199308

sub90520-01274¥160

main90520-01005iAE95..SR5¥110199009-199208

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010iAE95..DX¥180199009-199308

sub69268-20020¥180

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12100iAE95..SR5¥7,300199009-199208

W(POWER WINDOW)

main69810-12290iAE95¥6,300199009-199308

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12100iAE95..SR5¥7,300199009-199208

W(POWER WINDOW)

main69820-12290iAE95¥6,300199009-199308

8511

9010508077

main90105-08077¥110

9016850040

main90168-50040¥70

9151160610

main91511-60610¥120

9165140610

main91651-40610¥160

14 parts on this diagram · 1 diagram in section
