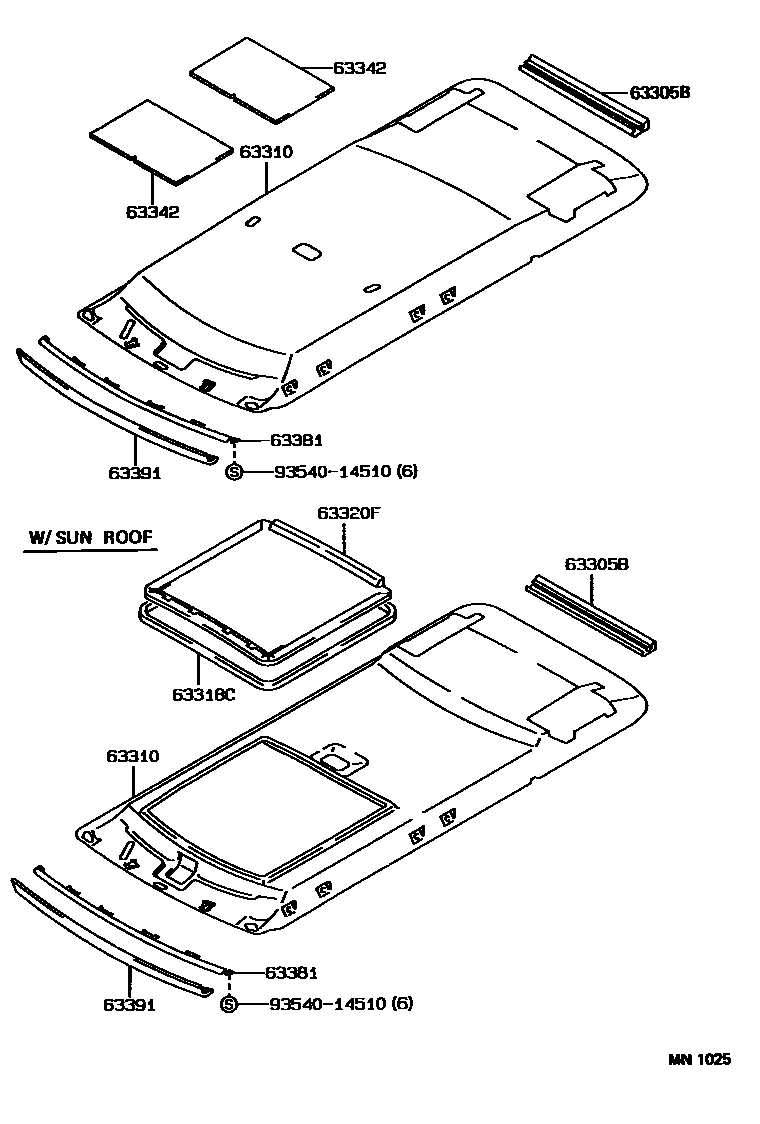

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-12130-03iAE95199009-199308

SHADOW GRAY,TRIM1#

main63305-12130-04iAE95199009-199308

DARK BLUE,TRIM8#

63310HEADLINING ASSY, ROOF

main63310-1A120-03iAE95199009-199308

LIGHT GRAY,TRIM1#

main63310-1A120-04iAE95199009-199308

LIGHT BLUE,TRIM8#

main63310-1A130-03iAE95199009-199308

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A130-04iAE95199009-199308

W(SUN ROOF),LIGHT BLUE,TRIM8#

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-12040-03iAE95199009-199308

LIGHT GRAY,TRIM1#

main63318-12040-04iAE95199009-199308

LIGHT BLUE,TRIM8#

63320FHEADLINING ASSY, SUN ROOF

main63320-12090-03iAE95199009-199308

LIGHT GRAY,TRIM1#

main63320-12090-04iAE95199009-199308

LIGHT BLUE,TRIM8#

63342PAD, ROOF SILENCER, NO.2

main63343-12050iAE95199009-199308

63381RETAINER, HEADLINING, FRONT

main63381-12150iAE95199009-199308

sub63381-12140

63391TRIM, ROOF HEADLINING, FRONT

main63391-12080-J0iAE95199009-199308

DARK BLUE,TRIM8#

sub63391-12080

9354014510

main93540-14510

8 parts on this diagram · 2 diagrams in section
