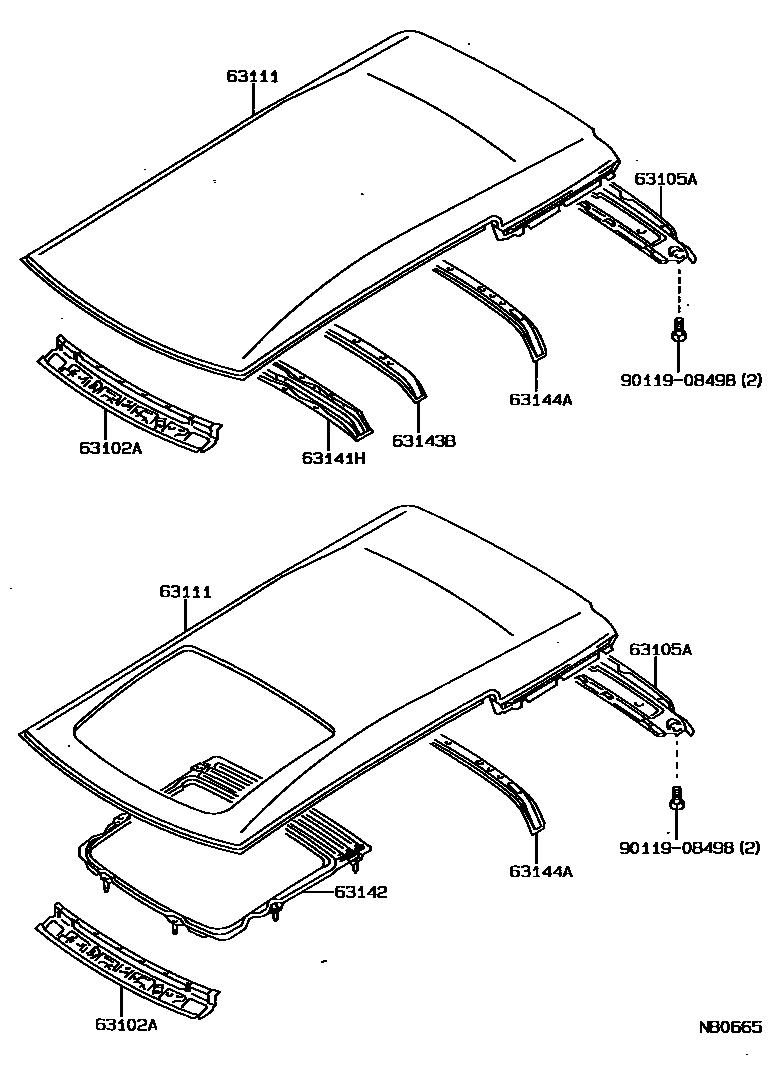

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12070iAE95199009-199308

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-12190iAE95199009-199308

63111PANEL, ROOF

main63111-12907iAE95199009-199308

W/O(REAR SPOILER)

main63111-12909iAE95199009-199308

W(SUN ROOF & REAR SPOILER)

main63111-12911iAE95199009-199308

main63111-12913iAE95199009-199308

W(SUN ROOF)

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-12150iAE95199009-199308

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-12050iAE95199009-199308

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-12050iAE95199009-199308

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-12010iAE95199009-199308

9011908498

main90119-08498

8 parts on this diagram · 2 diagrams in section
