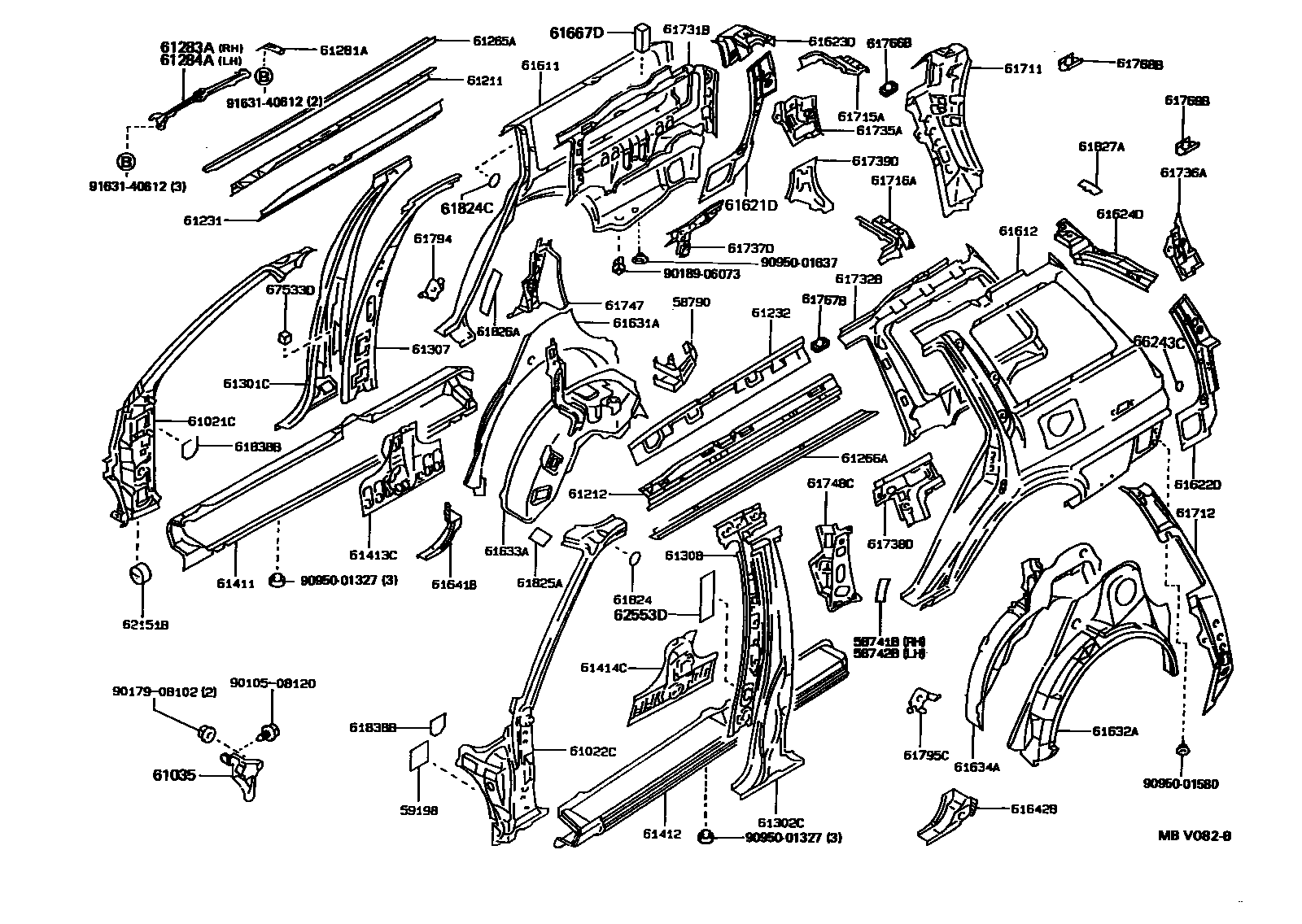

SIDE MEMBER
58741BPROTECTOR, QUARTER PANEL, RH
FRONT RH
REAR RH
58742BPROTECTOR, QUARTER PANEL, LH
FRONT LH
REAR LH
58790CARRIER ASSY, JACK
59198SEAL, NOISE SHUTTER
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61265ACHANNEL, ROOF DRIP SIDE, CENTER RH
61266ACHANNEL, ROOF DRIP SIDE, CENTER LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61623DEXTENSION, QUARTER PANEL, FRONT RH
61624DEXTENSION, QUARTER PANEL, FRONT LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61641BGUSSET, QUARTER WHEEL HOUSE, RH
61642BGUSSET, QUARTER WHEEL HOUSE, LH
61667DSEAL, QUARTER PANEL
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61715AEXTENSION, ROOF SIDE, INNER UPPER RH
61716AEXTENSION, ROOF SIDE, INNER UPPER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61738DREINFORCEMENT, ROOF SIDE, INNER LH
61739DREINFORCEMENT, JACK CARRIER SUPPORT
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
61794BRACKET, RADIO SPEAKER, NO.1
61795CBRACKET, RADIO SPEAKER, NO.2
61824PLATE, NOISE CONTROL, NO.1
61824CPAD, NOISE SHUTTER, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
61827APLATE, NOISE CONTROL, NO.4
61838BPLATE, NOISE CONTROL, NO.5
62151BPAD, COWL SIDE SILENCER
62553DPAD, PILLAR, NO.3
66243CPROTECTOR, REAR BODY, NO.1
67533DPAD, FRONT DOOR LOWER FRAME GARNISH, RH
9010508120
main90105-08120
9017908102
main90179-08102
9018906073
main90189-06073
9095001327
main90950-01327
9095001580
main90950-01580
9095001637
main90950-01637
9163140612
main91631-40612
73 parts on this diagram · 1 diagram in section
