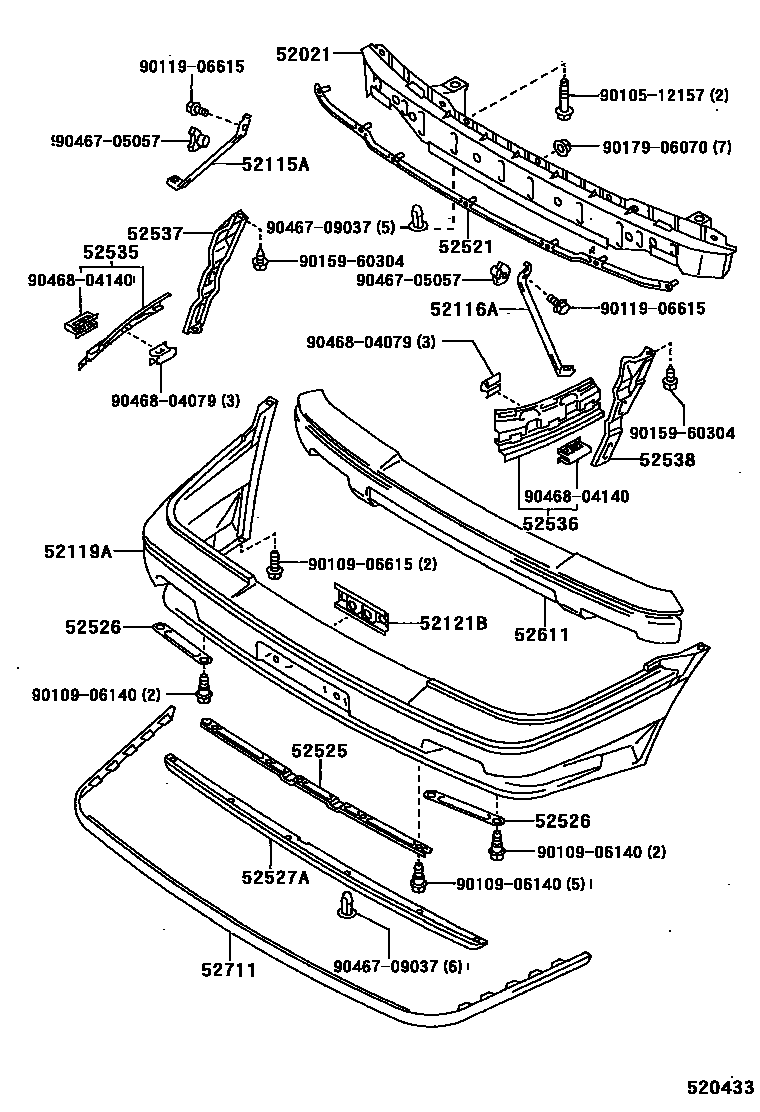

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-12170iAE95199009-199308

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12270iAE95199009-199308

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12210iAE95199009-199308

52119ACOVER, FRONT BUMPER

main52119-12350iAE95199009-199308

BLACK TYPE

main52119-12917iAE95199009-199308

COLORED TYPE

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-12110×2iAE95199009-199308

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-12091iAE95199009-199308

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-16050iAE95199009-199308

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-12030×2iAE95199009-199308

52527ARETAINER, FRONT BUMPER, LOWER CENTER NO.2

main52527-12040iAE95199009-199308

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-12040iAE95199009-199308

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-12050iAE95199009-199308

52537RETAINER, FRONT BUMPER END, RH

main52537-12030iAE95199009-199308

52538RETAINER, FRONT BUMPER END, LH

main52538-12020iAE95199009-199308

52611ABSORBER, FRONT BUMPER ENERGY

main52611-12130iAE95199009-199308

52711MOULDING, FRONT BUMPER

main52711-12160-12iAE95..CND199009-199104

RED,040 ,164 ,168 ,4K1 ,8G2

main52711-12160-13iAE95..CND199009-199108

SILVER,3E5 ,3H4 ,8E9

9010512157

main90105-12157

9010906140

main90109-06140

9010906615

main90109-06615

9011906615

main90119-06615

9015960304

main90159-60304

9017906070

main90179-06070

9046705057

main90467-05057

9046709037

main90467-09037

9046804079

main90468-04079

9046804140

main90468-04140

25 parts on this diagram · 1 diagram in section
