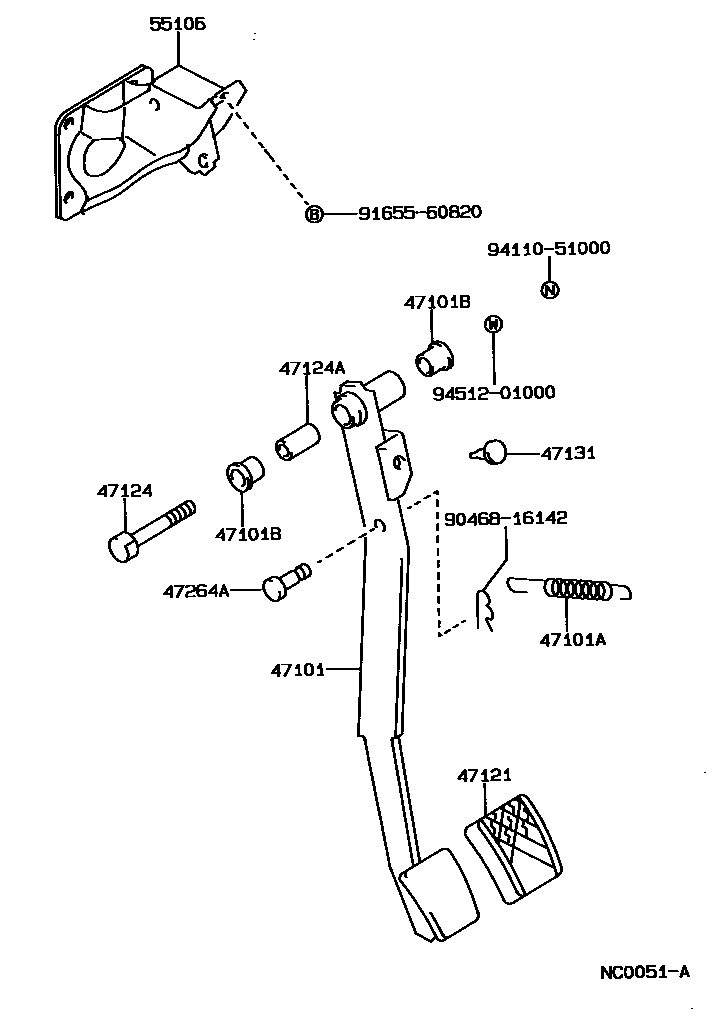

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12440iAE95..5F199009-199308

main47101-12450iAE95..4FC199009-199308

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14037iAE95199009-199308

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iAE95199009-199308

47121PAD, BRAKE PEDAL

main31321-12040iAE95..5F199009-199308

main47121-12020iAE95..4FC199009-199308

47124SHAFT, BRAKE PEDAL

main90101-10015iAE95199009-199308

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAE95199009-199308

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iAE95199009-199308

47264APIN(FOR PUSH ROD)

main90249-08051iAE95199009-199308

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12470iAE95199009-199308

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
