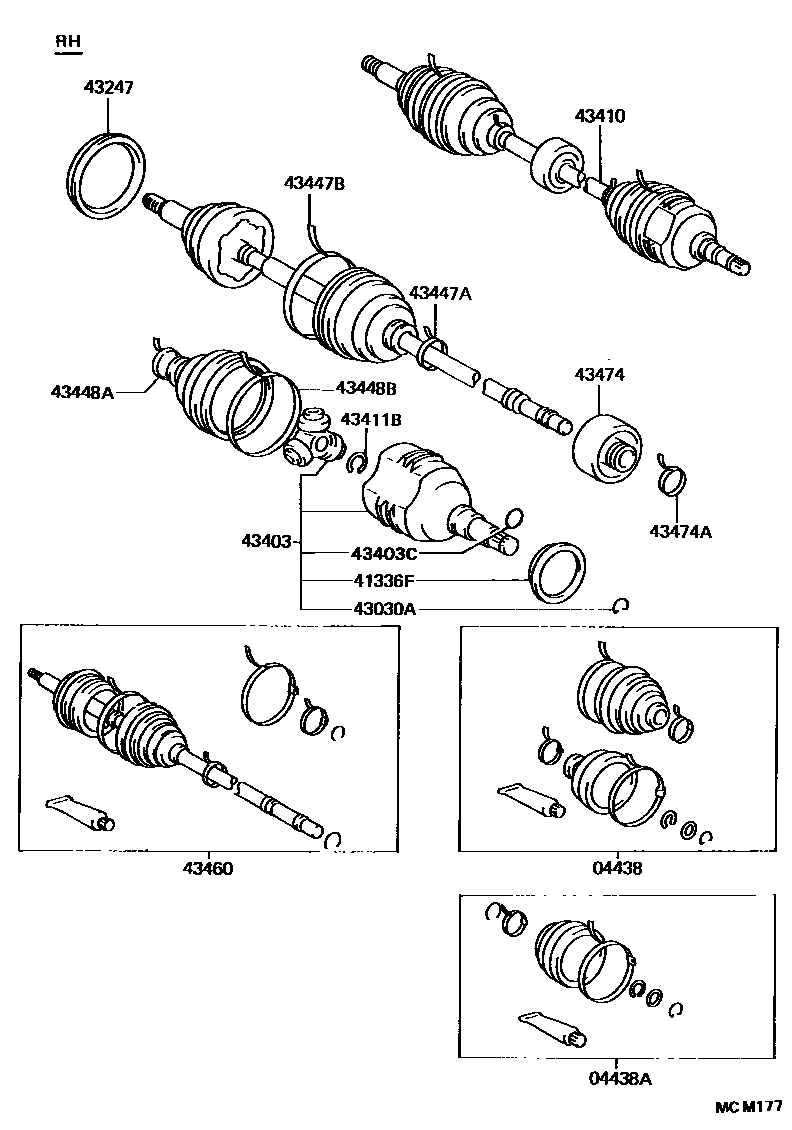

FRONT DRIVE SHAFT
04438BOOT KIT, FRONT DRIVE SHAFT
04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)
RH
LH
43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)
43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2
43403JOINT SET, FRONT AXLE INBOARD, RH
43403CRING, O (FOR FRONT DRIVE INBOARD JOINT)
43410SHAFT ASSY, FRONT DRIVE, RH
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43474DAMPER, DRIVE SHAFT
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)
16 parts on this diagram · 2 diagrams in section
