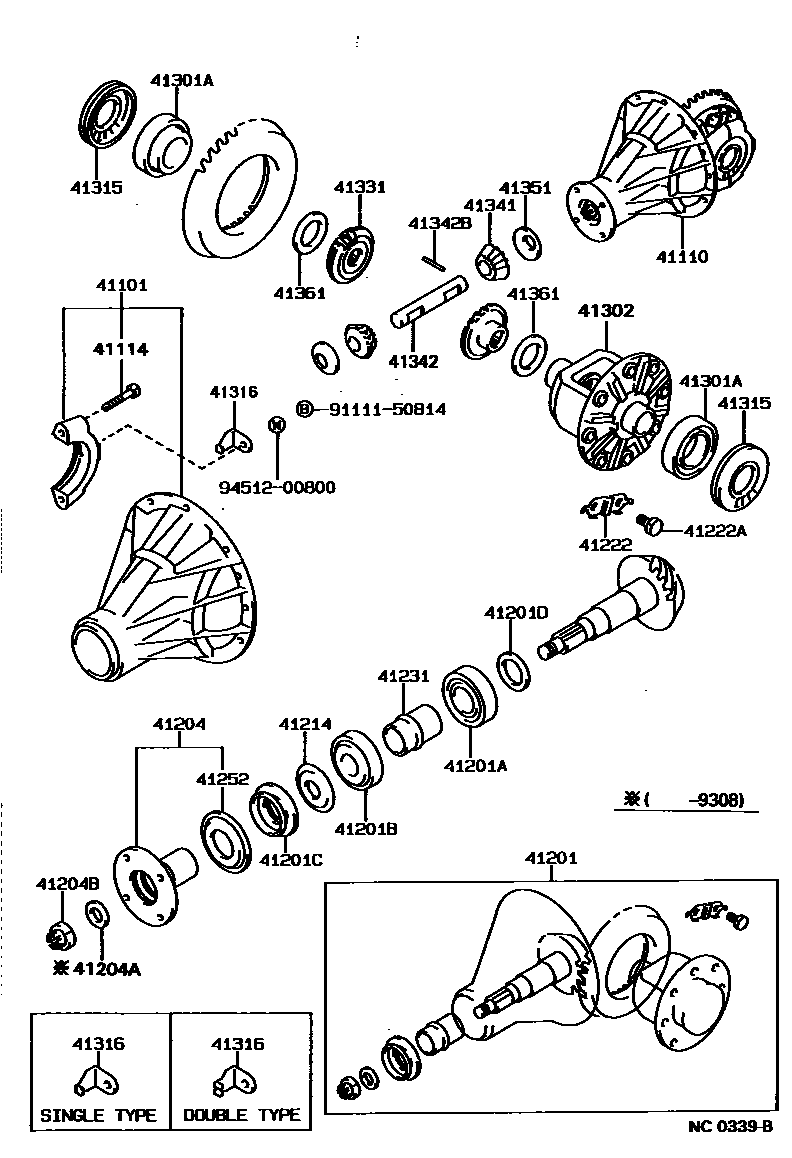

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:14=2.929
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:14=2.929
41201ABEARING (FOR REAR DRIVE PINION REAR)
sub90366-34019
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.36,MARK 05
T=2.39,MARK 06
T=2.42,MARK 07
T=2.43,MARK 08
T=2.48,MARK 09
T=2.51,MARK 10
T=2.54,MARK 11
T=2.57,MARK 12
T=2.60,MARK 13
T=2.63,MARK 14
T=2.66,MARK 15
T=2.69,MARK 16
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
41341PINION, REAR DIFFERENTIAL
sub41341-12030
41342SHAFT, REAR DIFFERENTIAL PINION
41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
9111150814
main91111-50814
9451200800
main94512-00800
28 parts on this diagram · 2 diagrams in section
