DIAPHRAGM CYLINDER & TRANSFER VACUUM ACTUATOR

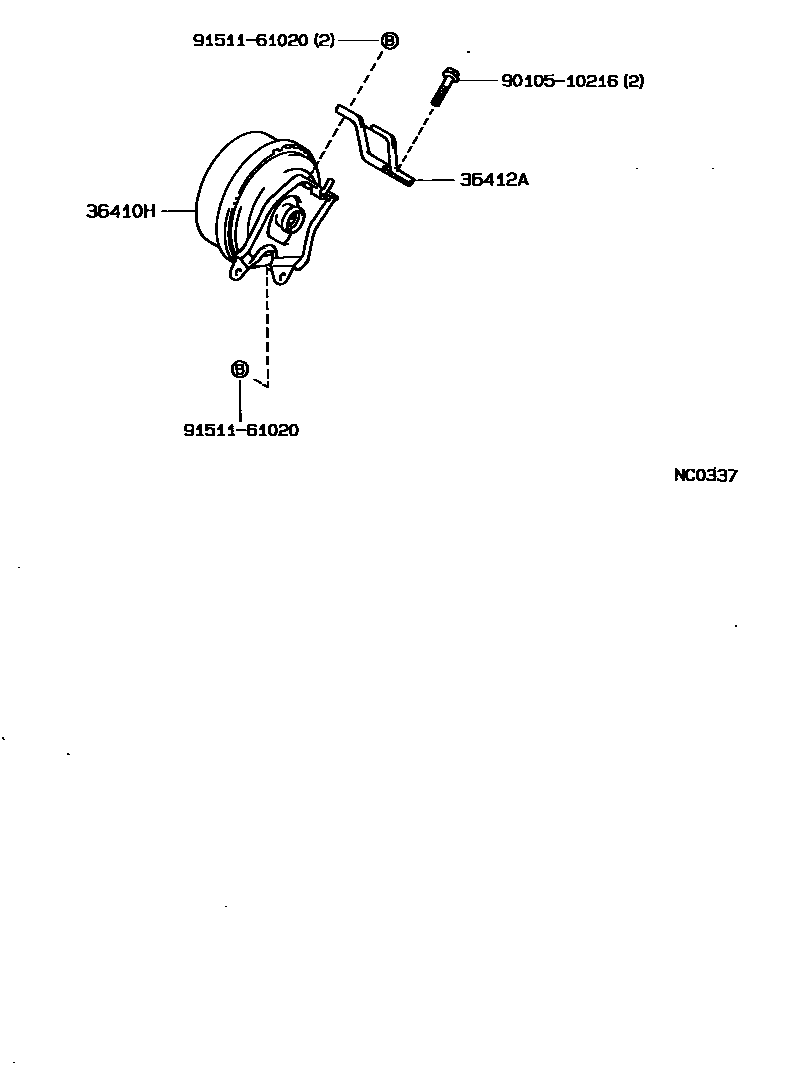

Parts diagram

36410HACTUATOR ASSY, TRANSFER VACUUM

main36410-12010i199009-199308

36412ABRACKET, TRANSFER VACUUM ACTUATOR

main36412-12010i199009-199308

9010510216

main90105-10216

9151161020

main91511-61020

4 parts on this diagram · 1 diagram in section
