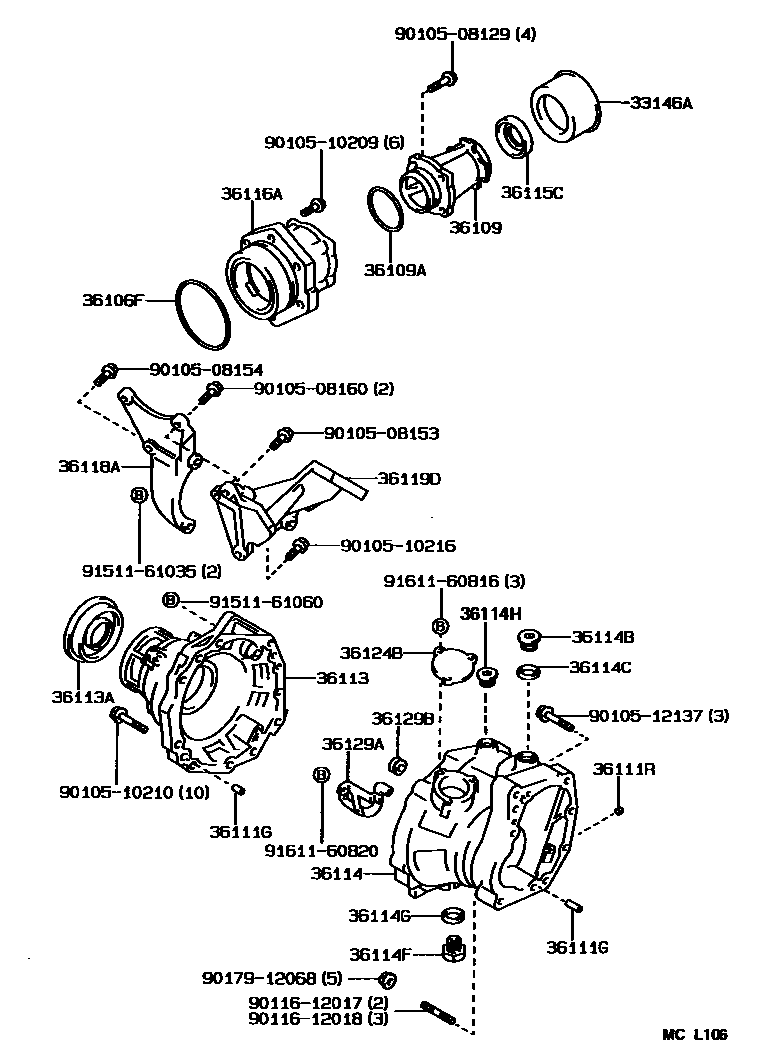

TRANSFER CASE & EXTENSION HOUSING
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
36106FRING, O (FOR TRANSFER PINION BEARING CAGE)
36109HOUSING SUB-ASSY, TRANSFER EXTENSION
36109ARING, O (FOR TRANSFER EXTENSION HOUSING)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
L=21,OD=10
L=24,OD=12
36111RPLUG, TIGHT (FOR TRANSFER CASE)
36113CASE, TRANSFER, RH
36113ASEAL, OIL (FOR TRANSFER CASE RH)
36114CASE, TRANSFER, LH
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36115HOUSING, TRANSFER EXTENSION
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36116ACAGE, TRANSFER PINION BEARING
36118APLATE, TRANSFER STIFFENER, RH
W(POWER STEERIG)
W(POWER STEERIG)
36119DPLATE, TRANSFER STIFFENER, CENTER
36124BCOVER, TRANSFER INSPECTION HOLE
36129ATUBE, TRANSFER OIL
36129BCUSHION (FOR TRANSFER OIL TUBE)
9010508129
9010508153
9010508154
9010508160
9010510209
9010510210
9010510216
9010512137
9011612017
9011612018
9017912068
9151161035
9151161060
9161160816
9161160820
37 parts on this diagram · 2 diagrams in section
