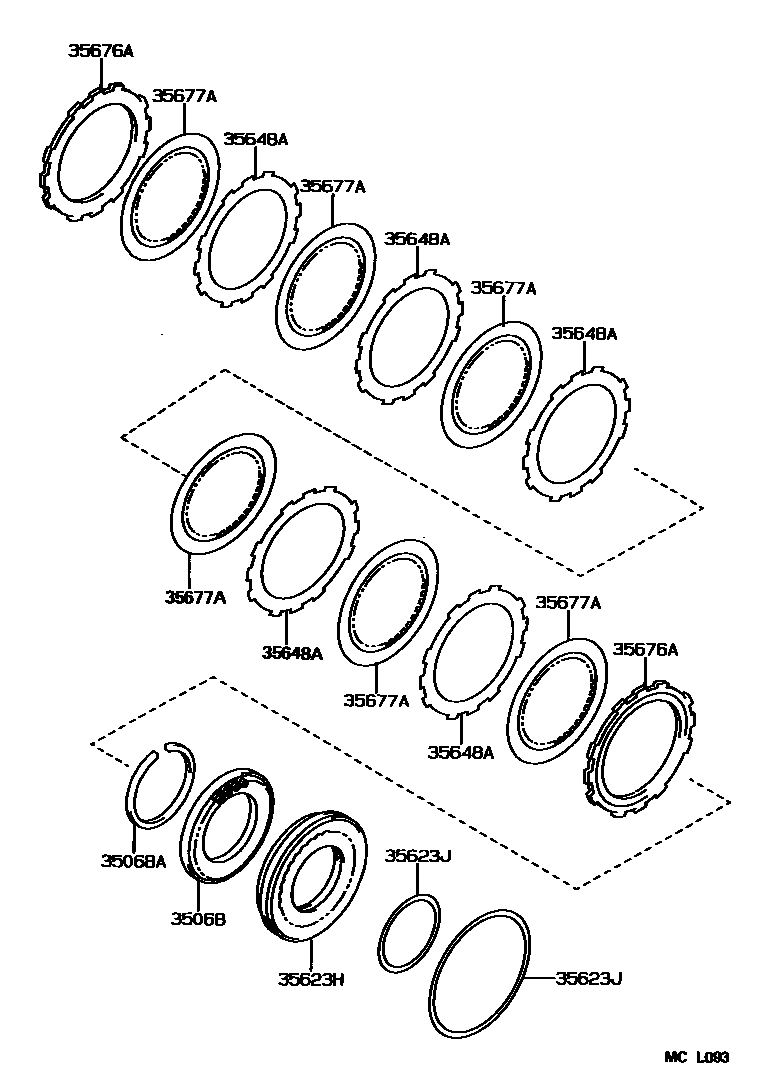

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iAE95..4FC199009-199308

sub35068-20010

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iAE95..4FC199009-199308

35623HPISTON, 1ST & REVERSE BRAKE

main35623-20010iAE95..4FC199009-199308

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iAE95..4FC199009-199308

INNER

main90301-99022iAE95..4FC199009-199308

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020iAE95..4FC199009-199308

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iAE95..4FC199009-199308

T=3.5

sub35676-12030

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12030iAE95..4FC199009-199308

sub35677-20070

7 parts on this diagram · 1 diagram in section
