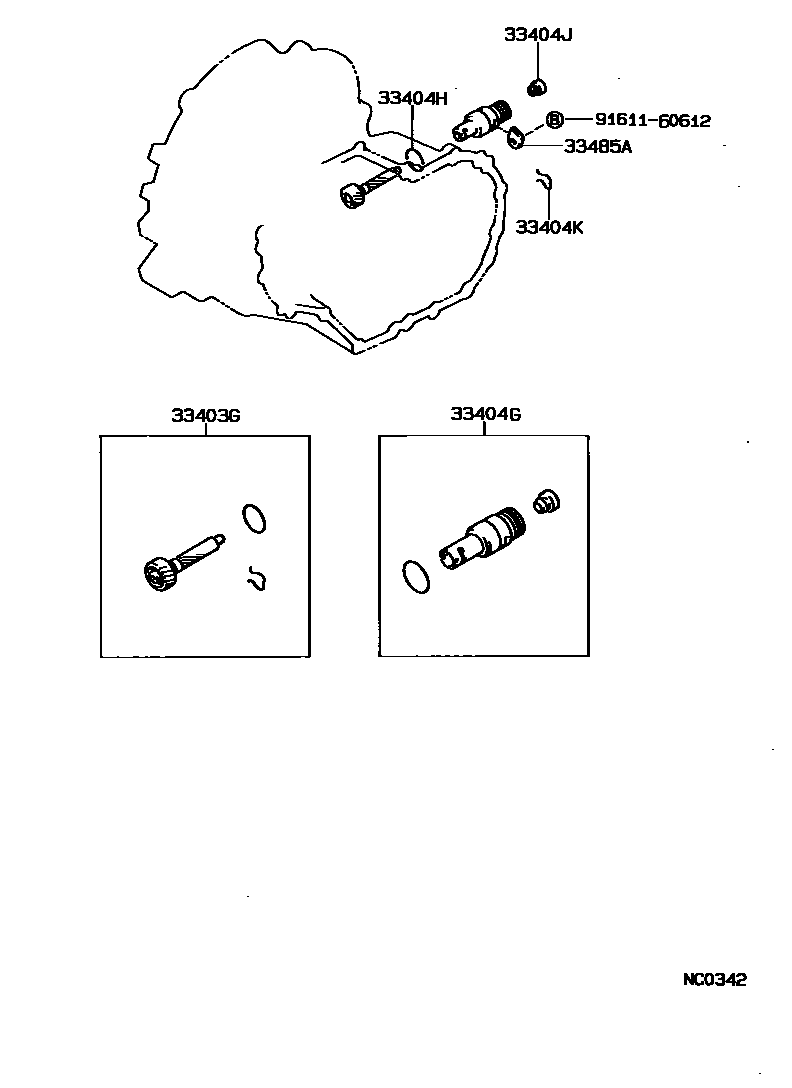

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19415iAE95..4FC199009-199308

N=22,MARK 22:25

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12040iAE95..4FC199205-199308

main33404-35010iAE95..4FC199009-199205

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iAE95..4FC199009-199308

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAE95..4FC199009-199308

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE95..4FC199009-199308

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-12020iAE95..4FC199009-199308

9161160612

main91611-60612

7 parts on this diagram · 1 diagram in section
