SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19405iAE95..5F199009-199102

N=30,MARK 30:35

sub33403-19406

main33403-19406iAE95..5F199102-199308

N=30,MARK 30:35

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-17010iAE95..5F199009-199308

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96721-24030iAE95..5F199009-199308

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09003iAE95..5F199009-199308

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE95..5F199009-199308

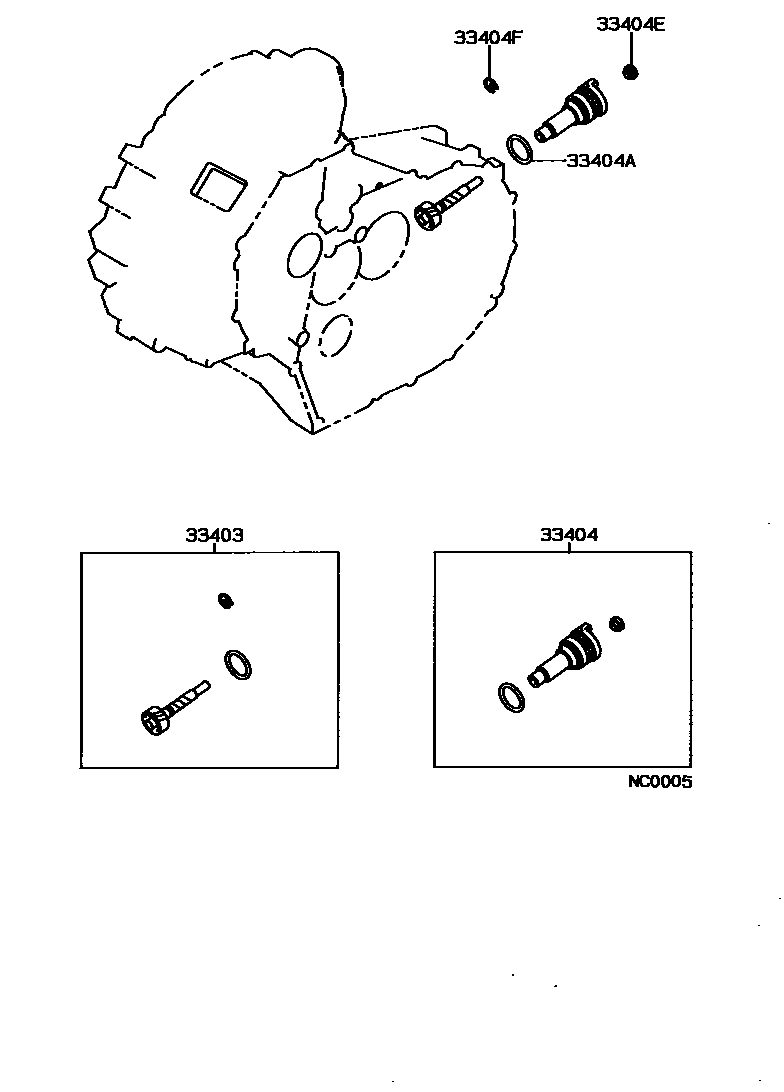

5 parts on this diagram · 1 diagram in section
