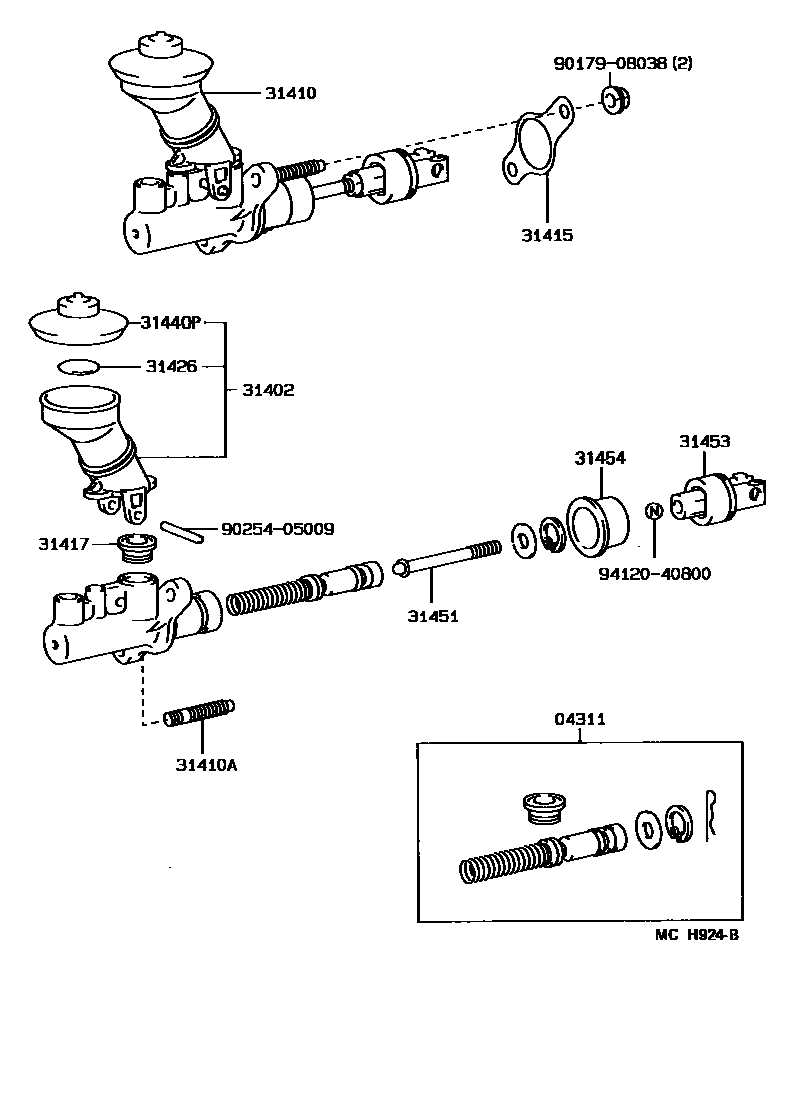

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iAE95..5F199009-199205

sub04311-12080

main04311-12080iAE95..5F199205-199308

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12040iAE95..5F199009-199308

sub31402-12050

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12350iAE95..5F199009-199308

sub31410-12380

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAE95..5F199009-199308

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iAE95..5F199009-199308

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iAE95..5F199009-199308

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iAE95..5F199009-199308

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAE95..5F199009-199308

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35080iAE95..5F199009-199308

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-12020iAE95..5F199009-199308

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iAE95..5F199204-199308

main31454-24010iAE95..5F199009-199204

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

14 parts on this diagram · 1 diagram in section
