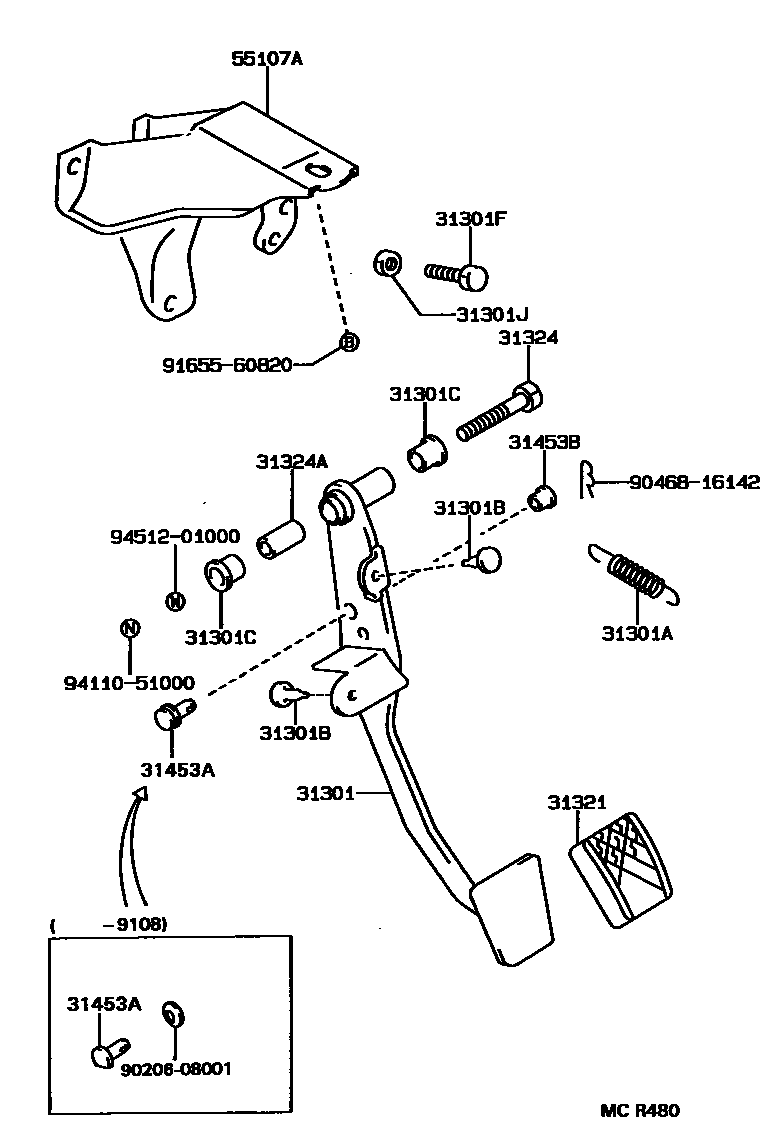

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12351iAE95..5F199009-199308

31301ASPRING(FOR CLUTCH PEDAL)

main90506-14052iAE95..5F199009-199308

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iAE95..5F199009-199308

PEDAL STOPPER

main90541-07010iAE95..5F199009-199308

CLUTCH START SWITCH

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAE95..5F199009-199308

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAE95..5F199009-199308

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iAE95..5F199009-199308

31321PAD, CLUTCH PEDAL

main31321-12040iAE95..5F199009-199308

31324SHAFT, CLUTCH PEDAL

main90101-10015iAE95..5F199009-199308

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAE95..5F199009-199308

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-12010iAE95..5F199108-199308

L=23.5

main90240-08006iAE95..5F199009-199108

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAE95..5F199009-199308

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12141iAE95..5F199009-199308

9020608001

main90206-08001

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9451201000

main94512-01000

17 parts on this diagram · 2 diagrams in section
