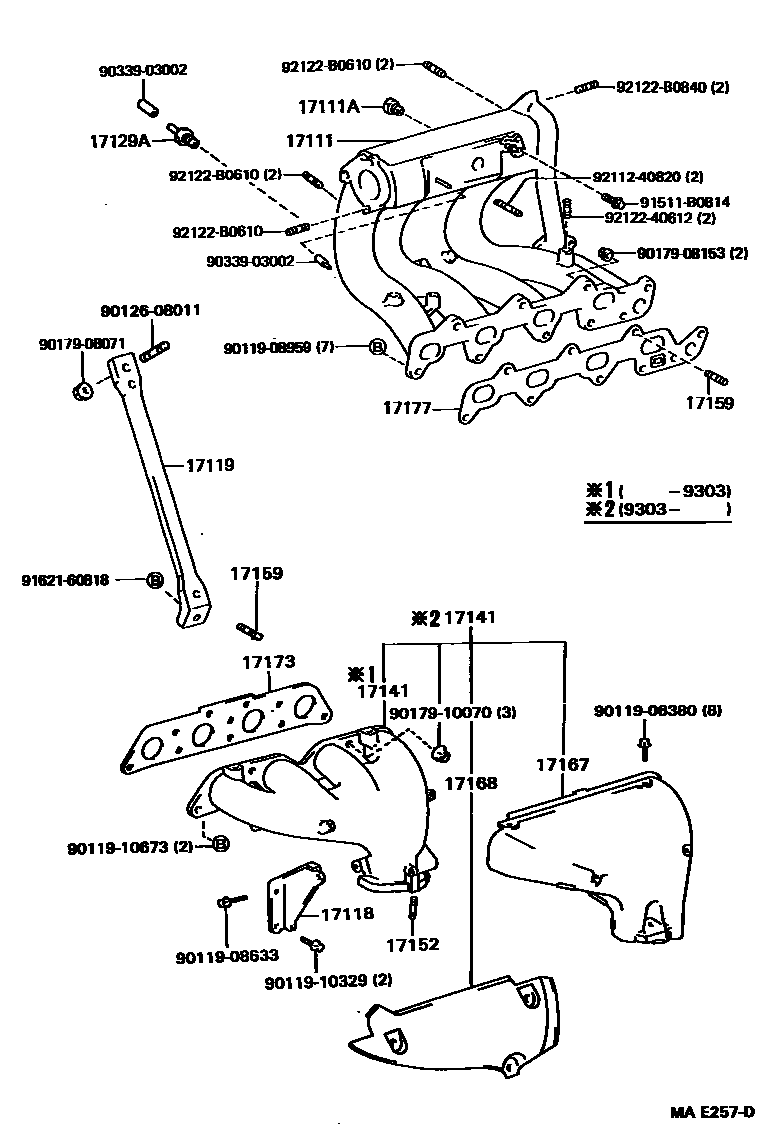

MANIFOLD

17111MANIFOLD, INTAKE

main17101-16140i4AFE..AE95199009-199308

17111APLUG, NO.1

main90345-51006i4AFE..AE95199009-199308

17118STAY, MANIFOLD

main17118-16071i4AFE..AE95199009-199308

17119STAY, MANIFOLD, NO.2

main17139-16060i4AFE..AE95199009-199308

17129AUNION, NO.1

main90404-51010i4AFE..AE95199009-199308

17141MANIFOLD, EXHAUST

main17141-16250i4AFE..AE95199009-199303

sub17141-19015

main17141-19015i4AFE..AE95199303-199308

sub17141-19016

sub90119-06817

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10146i4AFE..AE95199009-199308

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main92112-60825i4AFE..AE95199009-199308

INTAKE SIDE

main92112-61028i4AFE..AE95199009-199308

EXHAUST SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-15060i4AFE..AE95199206-199212

sub17167-15080

main17167-15080i4AFE..AE95199212-199308

main17167-16100i4AFE..AE95199009-199206

sub17167-15060

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-16070i4AFE..AE95199009-199301

sub17168-16071

main17168-16071i4AFE..AE95199301-199308

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-15011i4AFE..AE95199009-199107

main17173-15040i4AFE..AE95199107-199308

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-15021i4AFE..AE95199009-199308

9011906380

main90119-06380

9011908633

main90119-08633

9011908959

main90119-08959

9011910329

main90119-10329

9011910673

main90119-10673

9012608011

main90126-08011

9017908071

main90179-08071

9017908153

main90179-08153

9017910070

main90179-10070

9033903002

main90339-03002

91511B0814

main91511-B0814

9162160818

main91621-60818

9211240820

main92112-40820

9212240612

main92122-40612

92122B0610

main92122-B0610

92122B0840

main92122-B0840

28 parts on this diagram · 1 diagram in section
