V-BELT

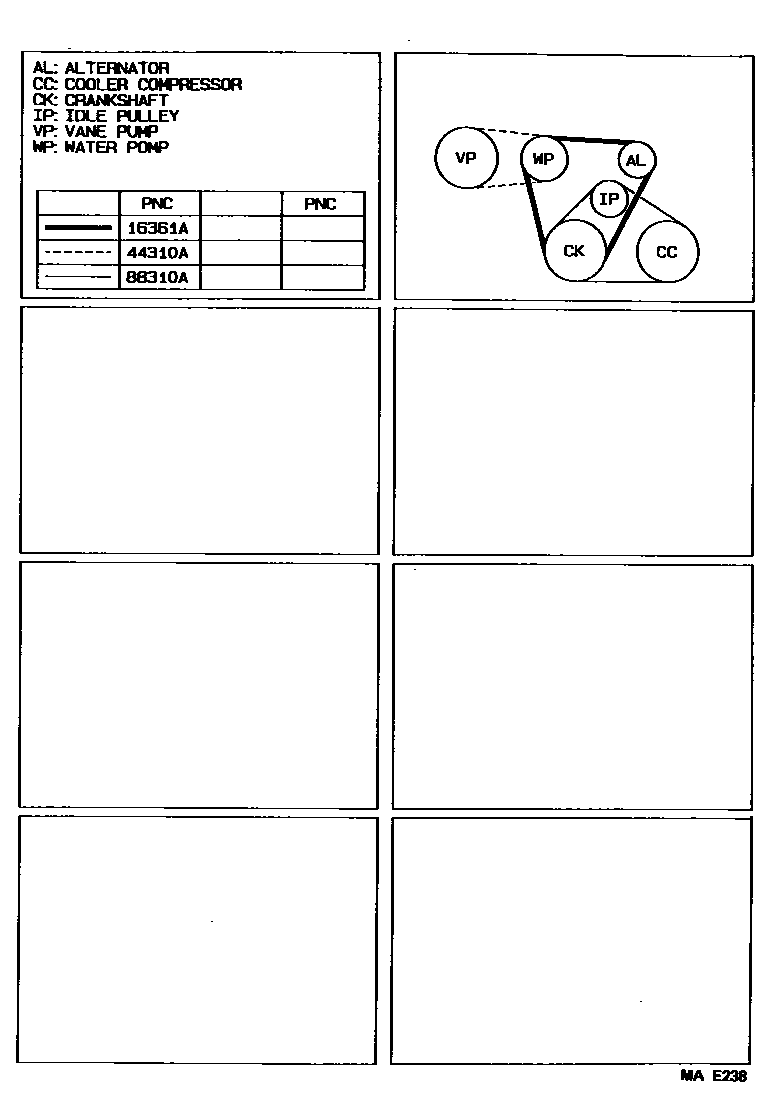

Parts diagram
16361ABELT, V(FOR FAN & ALTERNATOR)
main99365-20970i199009-199308
44310ABELT, V(FOR VANE PUMP)
main99363-50630i199009-199305
sub99363-80630
main99363-80630i199305-199308
L=630,W(POWER STEERING)
sub99363-90630
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
main99364-00860i199009-199308
L=860
sub90916-02354
main99364-20860i199106-199208
L=860,MITSUBOSHI
sub99364-80860
main99364-70860i199106-199208
BANDO
sub99364-80860

3 parts on this diagram · 1 diagram in section
