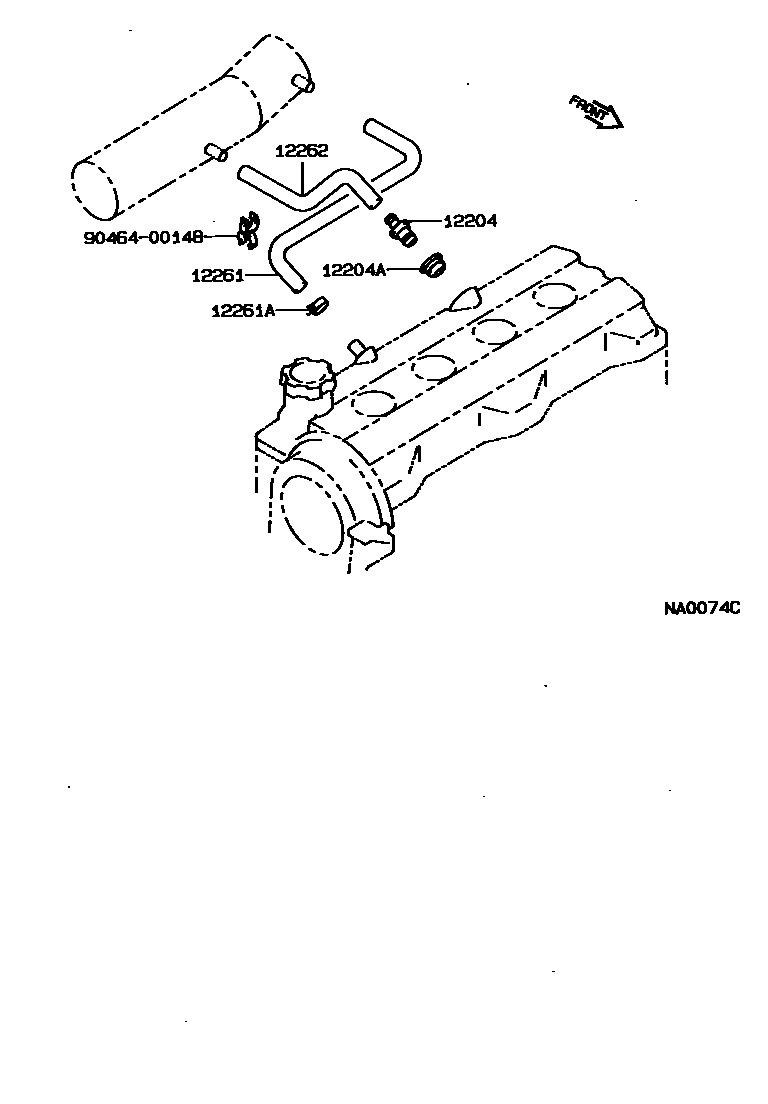

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-15030i4AFE..AE95¥1,290199009-199308

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i4AFE..AE95¥390199009-199308

12261HOSE, VENTILATION

main90445-10013i4AFE..AE95¥1,180199009-199308

sub90447-11006¥1,190

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-10099i4AFE..AE95¥120199109-199308

sub96132-51000¥160

main96132-30400i4AFE..AE95¥200199009-199109

sub96132-51000¥160

12262HOSE, VENTILATION, NO.2

main90445-15037i4AFE..AE95¥700199009-199308

sub90445-15067¥530

9046400148

main90464-00148¥390

6 parts on this diagram · 1 diagram in section
