STANDARD TOOL

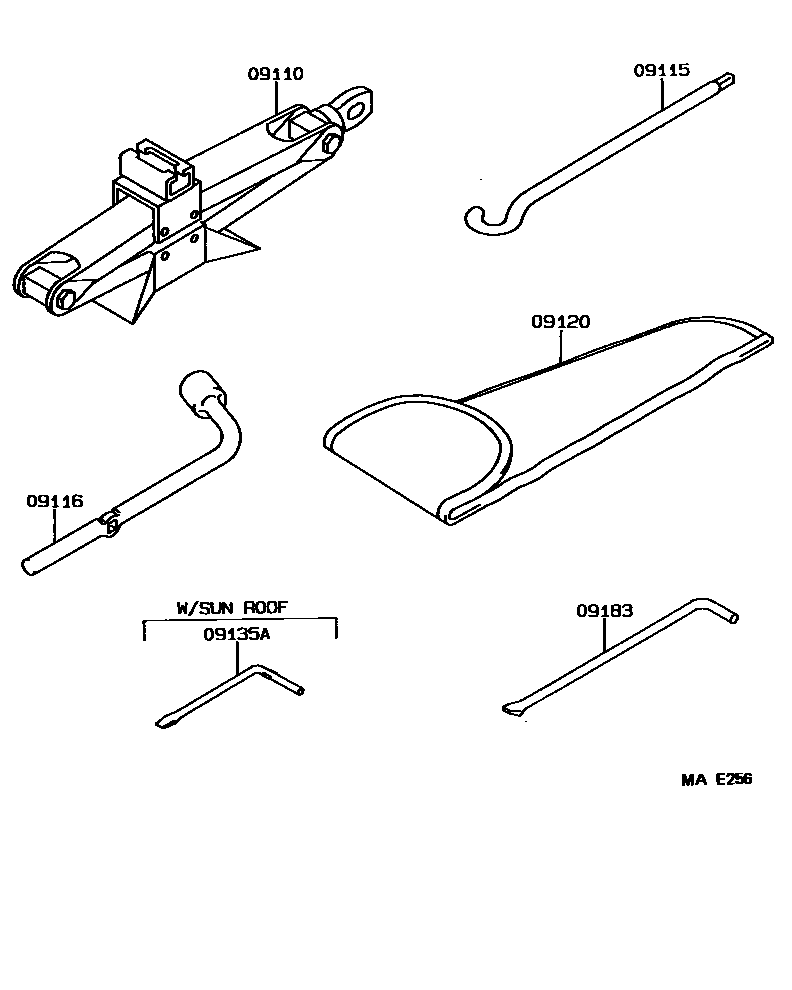

Parts diagram

09110JACK ASSY

main09111-12100i199009-199107

main09111-12130i199107-199308

09115ROD SUB-ASSY, JACK HANDLE

main09115-16030i199009-199308

09116LEVER, JACK HANDLE

main09116-16010i199009-199308

09120BAG, TOOL

main09120-32010i199009-199308

09135ABIT, SCREW DRIVER

main09135-00012i199009-199308

09183WRENCH, WHEEL CAP

main09183-00010i199009-199308

6 parts on this diagram · 1 diagram in section
