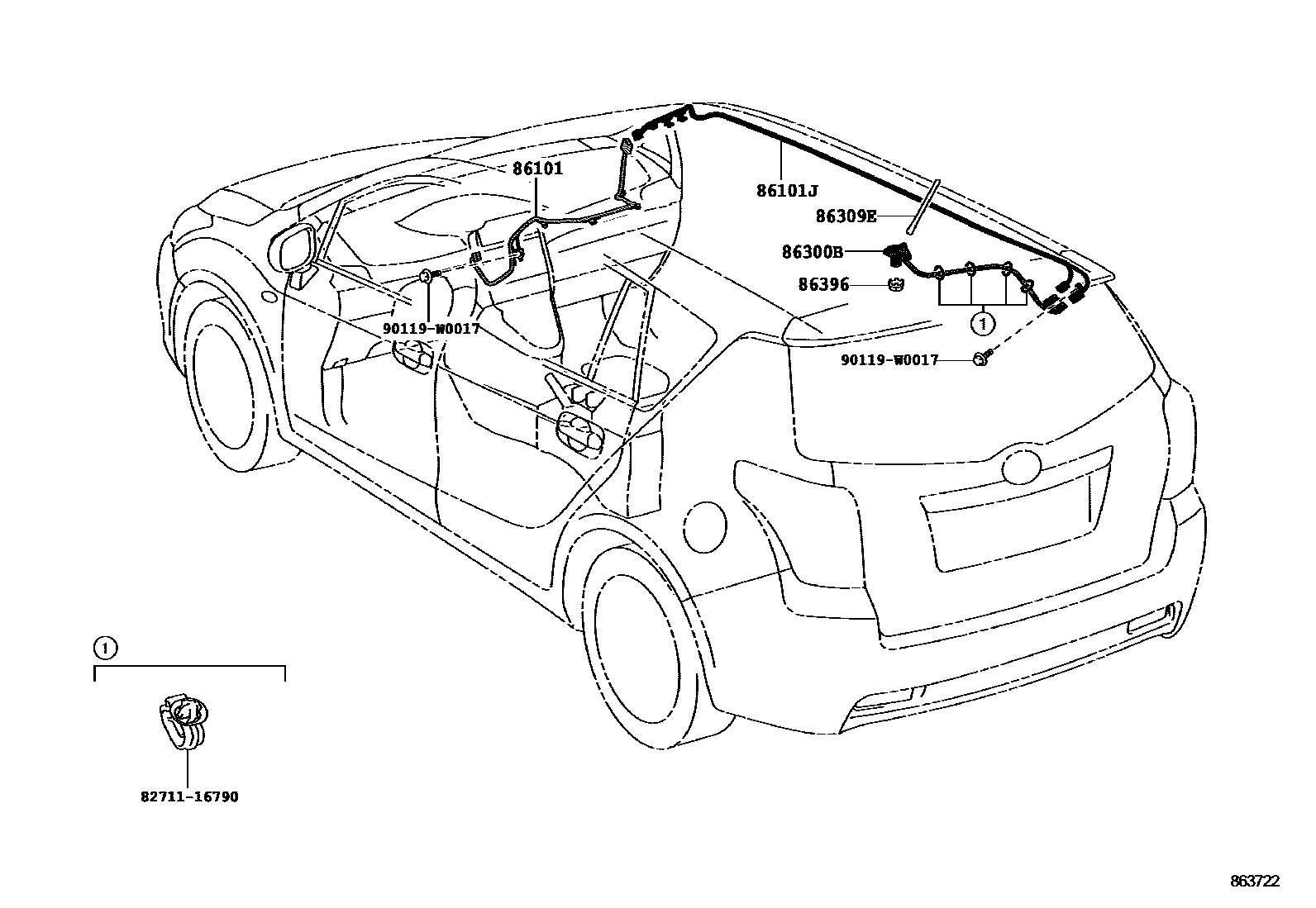

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-0F070iAUR2#,WAR20,ZGR2#..LHD200902-201503

main86101-0F080iWAR20,ZGR2#..RHD200902-201503

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0F060iAUR2#,ZGR2#200902-201211

main86101-0F061iAUR2#,WAR20,ZGR2#201211-201503

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0F030iZGR21..RHD..CVT..ENTRY200902-201211

main86300-0F070iWAR20,ZGR2#201211-201503

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-05050iZGR21..RHD..CVT..ENTRY200902-201503

86396NUT, ANTENNA

main86396-20040iZGR21..RHD..CVT..ENTRY201008-201503

main86396-30050iAUR2#,ZGR2#200902-201008

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

90119W0017

main90119-W0017

7 parts on this diagram · 2 diagrams in section
