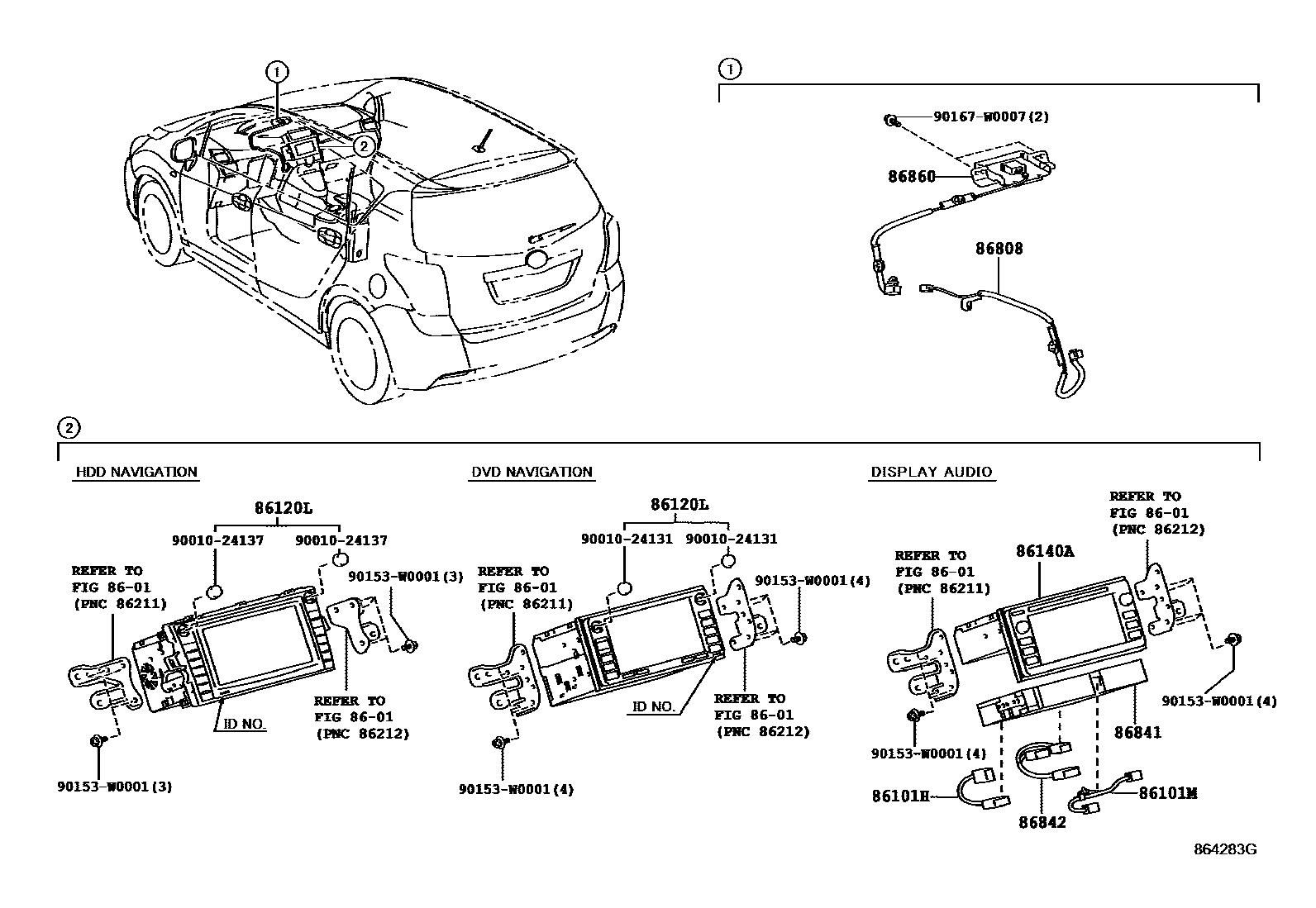

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1

8601

86101HCORD SUB-ASSY, ANTENNA

86101MCORD SUB-ASSY, ANTENNA

86120LRECEIVER ASSY, NAVIGATION

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-0F010iAUR2#,ZGR2#..E201111-201211

PANASONIC,ID=59026

main86140-0F010iAUR2#,ZGR2#..E201111-201211

PANASONIC,ID=59026,AUDIO-DISPLAY 6SPEAKER BLUETOOTH

main86140-0F020iAUR2#,ZGR2#..E201211-201401

PANASONIC

main86140-0F020iAUR2#,ZGR2#..E201211-201401

PANASONIC,AUDIO-*DA *BT 6SPEAKER

main86140-0F050iAUR2#,WAR20,ZGR2#..E201401-201503

PANASONIC

sub86140-0F051

main86140-0F050iAUR2#,WAR20,ZGR2#..E201401-201503

PANASONIC,AUDIO-*DA *BT 6SPEAKER

sub86140-0F051

main86140-0F051iWAR20,ZGR2#..E201503-201601

PANASONIC

main86140-0F051iWAR20,ZGR2#..E201503-201601

PANASONIC,AUDIO-*DA *BT 6SPEAKER

main86140-0F090iWAR20,ZGR2#..E201601

PANASONIC

main86140-0F090iWAR20,ZGR2#..E201601

PANASONIC,AUDIO-*DA *BT 6SPEAKER

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-0F020

main86808-0F021

main86808-0F030

main86808-0F031

86841COMPUTER, NAVIGATION

main86840-02013

main86840-02014

main86840-05020

main86840-0F020

main86840-05021

main86840-0F030

main86840-0F040

main86840-0F050

main86840-YY090

main86840-YY110

main86840-YY150

main86840-YY160

86842WIRE, NAVIGATION, NO.1

main86842-YY010

main86842-12010

86860ANTENNA ASSY, NAVIGATION

main86860-64020

main86860-64021

main86860-0F040

9001024131

main90010-24131

9001024137

main90010-24137

90153W0001

main90153-W0001

90167W0007

main90167-W0007

13 parts on this diagram · 4 diagrams in section
