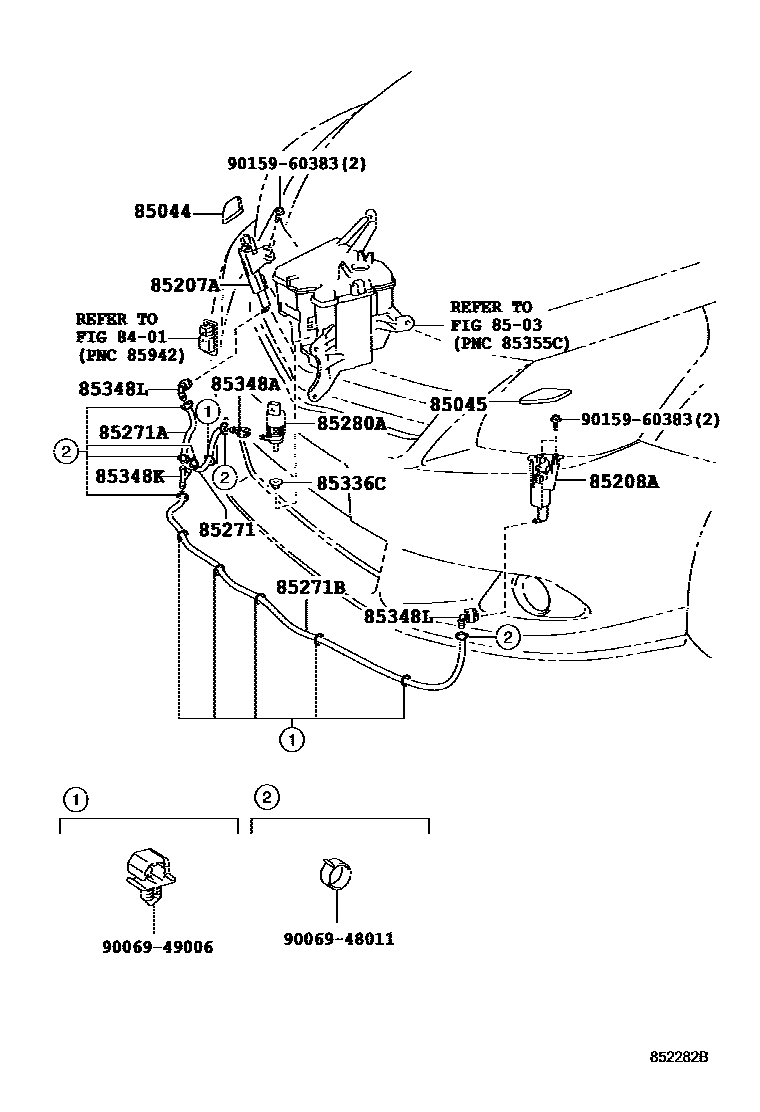

HEADLAMP CLEANER

0001 1 0002 1 0003 1

8401

8503

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85353-0F900

main85044-0F902

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85354-0F900

main85045-0F902

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

85271HOSE, HEADLAMP CLEANER, NO.1

main85276-0F030

main85275-0F030

main85277-0F030

main85277-0F050

main85275-0F050

main85276-0F050

85271AHOSE, HEADLAMP CLEANER, NO.2

85271BHOSE, HEADLAMP CLEANER, NO.3

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

85336CPACKING, HEADLAMP CLEANER MOTOR

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

9006948011

main90069-48011

9006949006

main90069-49006

9015960383

main90159-60383

17 parts on this diagram · 3 diagrams in section
