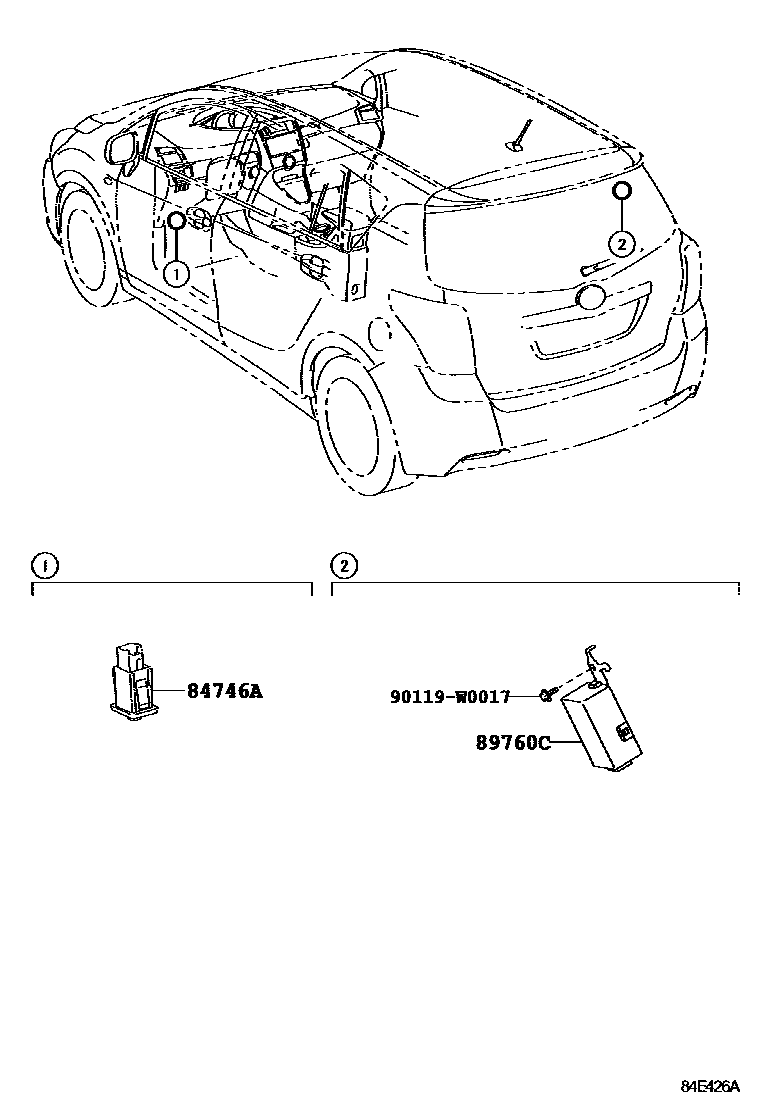

TIRE PRESSURE WARNING SYSTEM

0001 1 0002 1

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-02020iAUR2#,WAR20,ZGR2#201401-201503

TIRE INFLATION PRESSURE WARNING-WITHOUT

main84746-02020iWAR20,ZGR2#201503

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-0F010iAUR2#,WAR20,ZGR2#201401-201503

WEST RUSSIA SPEC

sub89760-0F011

main89760-0F010iAUR2#,WAR20,ZGR2#201401-201503

UKRAINE SPEC

sub89760-0F011

main89760-0F010iAUR2#,WAR20,ZGR2#201401-201503

SOUTH AFRICA SPEC

sub89760-0F011

main89760-0F010iAUR2#,WAR20,ZGR2#201401-201503

MOROCCO SPEC

sub89760-0F011

main89760-0F010iAUR2#,WAR20,ZGR2#201401-201503

SPARE TIRE-GROUND TIRE

sub89760-0F011

main89760-0F010iAUR2#,WAR20,ZGR2#201401-201503

WEST RUSSIA SPEC&SPARE TIRE-GROUND TIRE

sub89760-0F011

main89760-0F010iAUR2#,WAR20,ZGR2#201401-201503

UKRAINE SPEC&SPARE TIRE-GROUND TIRE

sub89760-0F011

main89760-0F010iAUR2#,WAR20,ZGR2#201401-201503

MOROCCO SPEC&SPARE TIRE-GROUND TIRE

sub89760-0F011

main89760-0F010iAUR2#,WAR20,ZGR2#201401-201503

SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESSURE WARNING-WITHOUT

sub89760-0F011

main89760-0F010iAUR2#,WAR20,ZGR2#201401-201503

TIRE INFLATION PRESSURE WARNING-WITHOUT

sub89760-0F011

main89760-0F011iWAR20,ZGR2#201503

WEST RUSSIA SPEC

main89760-0F011iWAR20,ZGR2#201503

UKRAINE SPEC

main89760-0F011iWAR20,ZGR2#201503

SOUTH AFRICA SPEC

main89760-0F011iWAR20,ZGR2#201503

MOROCCO SPEC

90119W0017

main90119-W0017

3 parts on this diagram · 2 diagrams in section
