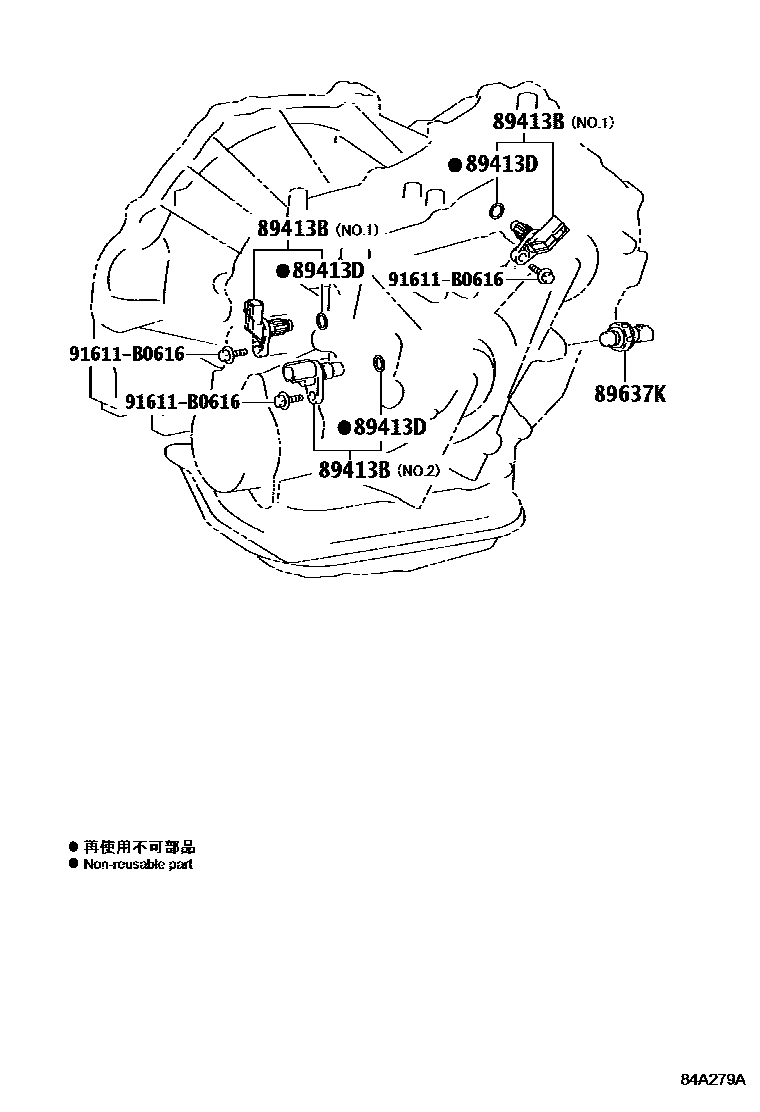

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-12020×2iZGR21..CVT200902-201007

NO.1

main89413-33030iAUR21..6FC201007-201211

main89413-60020iZGR21..CVT201503-201710

NO.2

sub89413-60021

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×3iZGR21..CVT200902-201007

89637KSENSOR, OIL PRESSURE

main89637-63010iZGR21..CVT200902-201007

91611B0616

main91611-B0616

4 parts on this diagram · 2 diagrams in section
