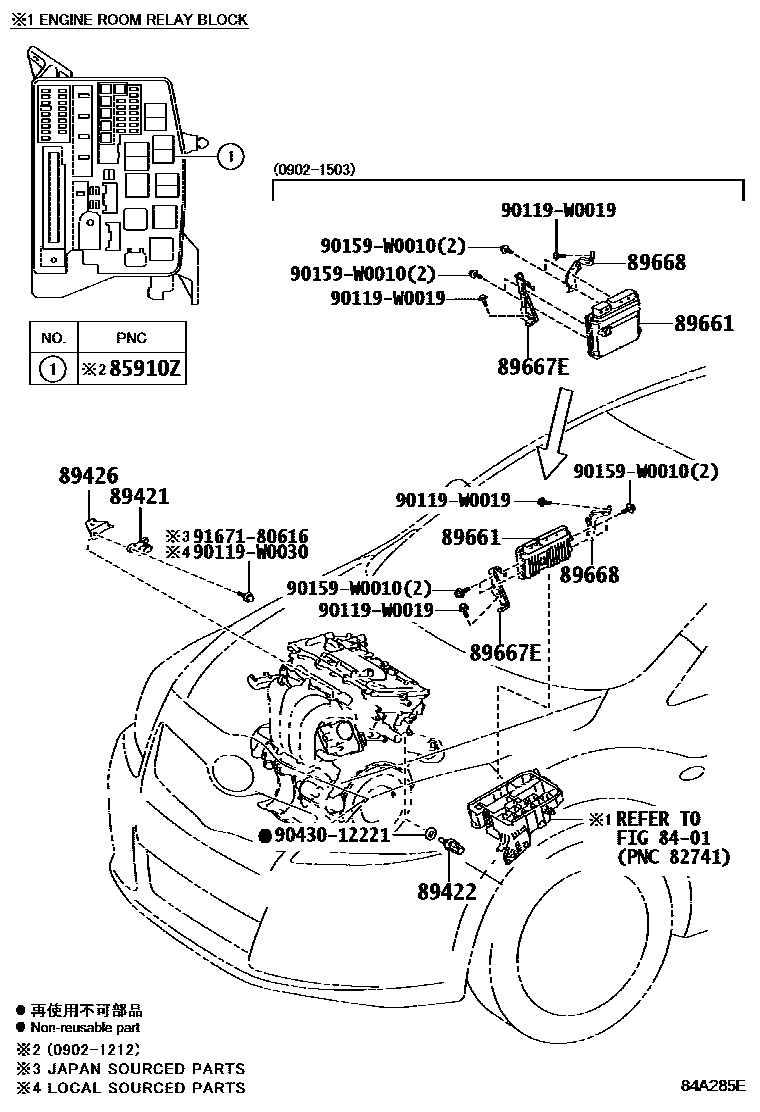

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ZRELAY, INJECTION (FOR EFI)

main90080-87019iZGR2#200902-201110

sub90080-87021

main90080-87021iZGR2#201111-201211

sub90987-02027

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZGR2#200902-201710

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZGR2#200902-201503

89426BRACKET, VACUUM SENSOR

main89426-28080iZGR2#200902-201503

89661COMPUTER, ENGINE CONTROL

main89661-0F170iZGR20200902-200903

sub89661-0F171

main89661-0F171iZGR20200904-201007

main89661-0F190iZGR21..6F200902-200903

sub89661-0F191

main89661-0F191iZGR21..6F200904-201007

main89661-0F210iZGR21..CVT200902-200903

sub89661-0F211

main89661-0F211iZGR21..CVT200904-201007

sub89661-0F212

main89661-0F310iZGR20201007-201111

main89661-0F311iZGR20201111-201204

main89661-0F320iZGR21..6F201007-201111

main89661-0F321iZGR21..6F201111-201204

main89661-0F330iZGR21..CVT201007-201009

sub89661-0F331

main89661-0F331iZGR21..CVT201010-201111

main89661-0F332iZGR21..CVT201111-201204

main89661-0F360iZGR20201204-201307

main89661-0F380iZGR21..6F201204-201307

main89661-0F400iZGR21..CVT201204-201307

main89661-0F410iZGR20201307-201503

main89661-0F420iZGR21..6F201307-201503

main89661-0F430iZGR21..CVT201307-201503

main89661-0F550iZGR20201503-201601

main89661-0F560iZGR21..6F201503-201601

main89661-0F570iZGR21..CVT201503-201601

main89661-0F610iZGR20201601

main89661-0F620iZGR21..6F201601

main89661-0F630iZGR21..CVT201601

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02180iZGR2#200902-201503

main89667-02300iZGR2#201503

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02140iZGR2#..6F200902-201503

main89668-02170iZGR21..CVT200902-201503

main89668-02280iZGR2#201503

90119W0019

main90119-W0019

90119W0030

main90119-W0030

90159W0010

main90159-W0010

9043012221

main90430-12221

9167180616

main91671-80616

13 parts on this diagram · 1 diagram in section
