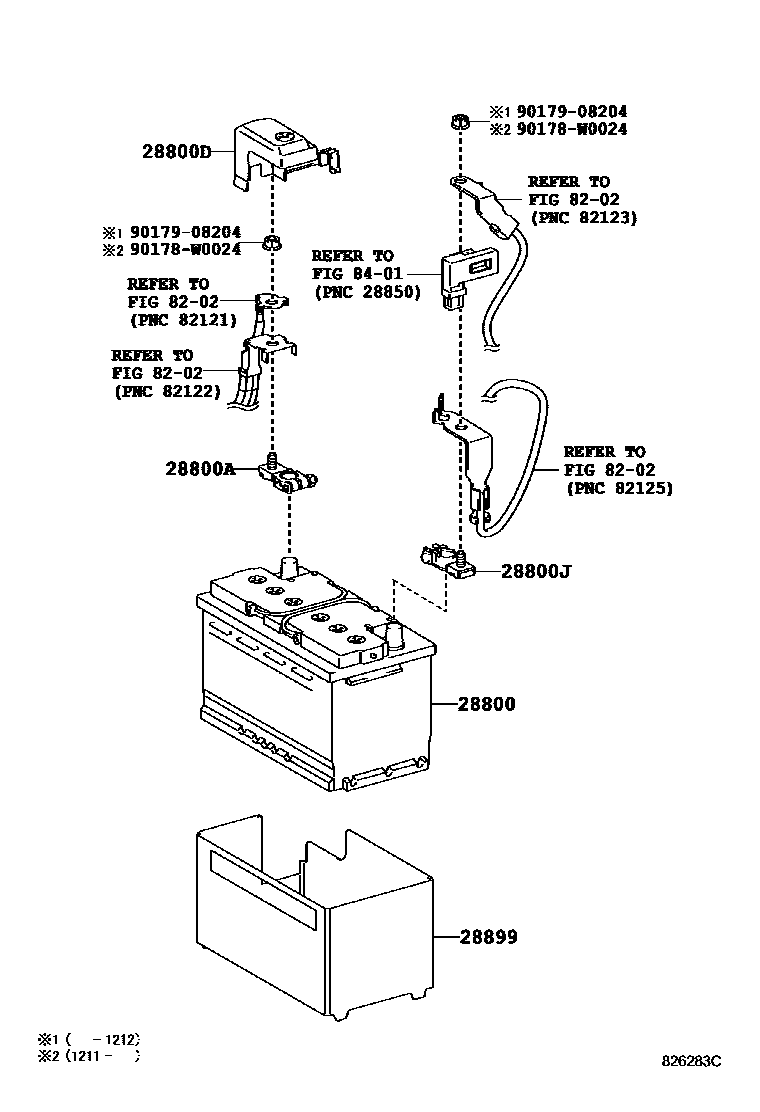

BATTERY & BATTERY CABLE

0001 1 0002 1 0003 1

28800BATTERY

main28800-0D140i2ZRFAE..ZGR21..RHD..CVT..ENTRY200902-201503

LN2

main28800-0R050i1ADFTV,2ADFHV..AUR2#200902-201503

LN4

main28800-0R090i1WW..WAR20201401-201503

LN4

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i1WW..WAR20201401-201503

main90982-05054i1ZRFAE,2ZRFAE..ZGR2#200902-201503

main90982-05056i1ADFTV,2ADFHV..AUR2#200902-201503

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY200902-201503

main82821-12620i1ADFTV,2ADFHV..AUR2#200902-201503

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY;1ADFTV,2ADFHV,1ZRFAE..AUR2#,ZGR20200902-201503

28899INSULATOR, BATTERY

main28899-26050i1ADFTV,2ADFHV..AUR2#200902-201503

main28899-26100i1WW..WAR20201401-201503

8202

8401

90178W0024

main90178-W0024

9017908204

main90179-08204

9 parts on this diagram · 3 diagrams in section
