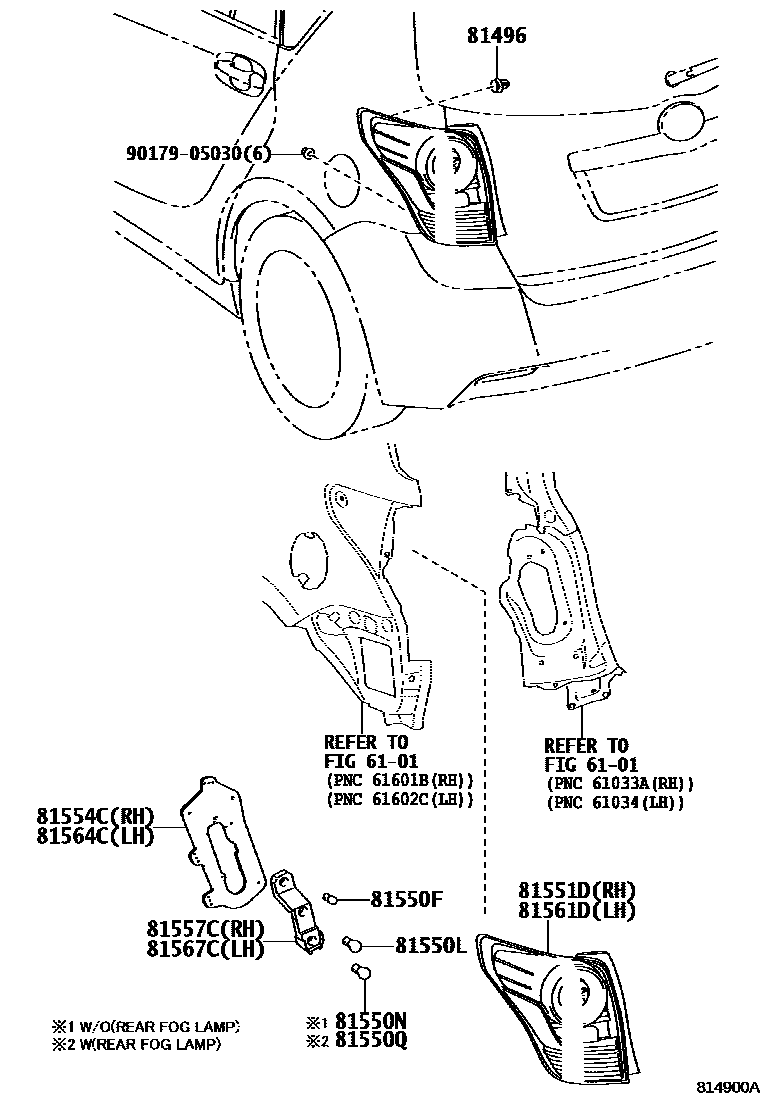

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iAUR2#,ZGR2#200902-201007

81550FBULB, TAILLAMP

main99132-11050×2iAUR2#,ZGR2#200902-201007

81550LBULB, REAR TURN SIGNAL LAMP

main90981-WF006×2iAUR2#,ZGR2#200902-201007

81550NBULB, BACK UP LAMP

main90981-WC007iAUR2#,WAR20,ZGR2#201211-201503

81550QBULB, REAR FOG LAMP, NO.1

main90981-WC007iAUR2#,ZGR2#200902-201007

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0F090iAUR2#,ZGR2#..LHD200902-201006

main81551-0F091iAUR2#,ZGR2#..LHD201006-201007

main81551-0F092iAUR2#,ZGR2#..LHD201112-201211

main81551-0F100iAUR2#,ZGR2#..RHD200902-201006

main81551-0F101iAUR2#,ZGR2#..RHD201006-201007

main81551-0F102iAUR2#,ZGR2#..RHD201112-201211

main81551-0F120iAUR2#,WAR20,ZGR2#..RHD201211-201503

main81551-0F130iWAR20,ZGR2#..LHD201503

81554CPACKING, REAR COMBINATION LAMP BODY, RH

main81554-0F090iAUR2#,ZGR2#200902-201006

main81554-0F091iAUR2#,ZGR2#201006-201007

81557CCOVER, REAR COMBINATION LAMP, RH

main81557-0F090iAUR2#,ZGR2#200902-201006

main81557-0F091iZGR21..RHD..CVT..ENTRY201007-201111

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0F090iAUR2#,ZGR2#..LHD200902-201006

main81561-0F091iAUR2#,ZGR2#..LHD201006-201007

main81561-0F092iAUR2#,ZGR2#..LHD201112-201211

main81561-0F100iAUR2#,ZGR2#..RHD200902-201006

main81561-0F101iZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY201007-201112

main81561-0F102iAUR2#,ZGR2#..RHD201112-201211

main81561-0F120iAUR2#,WAR20,ZGR2#..RHD201211-201503

main81561-0F130iAUR2#,WAR20,ZGR2#..LHD201211-201503

81564CPACKING, REAR COMBINATION LAMP BODY, LH

main81554-0F090iAUR2#,ZGR2#200902-201006

main81554-0F091iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

81567CCOVER, REAR COMBINATION LAMP, LH

main81567-0F090iAUR2#,ZGR2#200902-201006

main81567-0F091iAUR2#,ZGR2#201006-201007

9017905030

main90179-05030

13 parts on this diagram · 1 diagram in section
