HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
12V 55W,HALOGEN
81110LBULB, DISCHARGE HEADLAMP
42V 35W,HEADLAMP-DISCHARGE & *DRL(LED)
43V 35W,HIGH PACKAGE&COLD AREA SPEC&HEADLAMP-DISCHARGE
81135UNIT ASSY, HEADLAMP, RH
HEADLAMP-DISCHARGE & *DRL(LED)&DAYTIME RUNNING LIGHT SYSTEM-WITH
HEADLAMP-DISCHARGE & *DRL(LED) & *AHB
HEADLAMP-DISCHARGE & *DRL(LED)&DAYTIME RUNNING LIGHT SYSTEM-WITH
HEADLAMP-DISCHARGE & *DRL(LED)&DAYTIME RUNNING LIGHT SYSTEM-WITH
HIGH PACKAGE&HEADLAMP-DISCHARGE
HIGH PACKAGE&HEADLAMP-DISCHARGE
HIGH PACKAGE&HEADLAMP-DISCHARGE
HIGH PACKAGE&HEADLAMP-DISCHARGE
81135CCOVER, HEADLAMP BACK, NO.1
81135DCOVER, HEADLAMP BACK, NO.2
HIGH PACKAGE&HEADLAMP-DISCHARGE
81175UNIT ASSY, HEADLAMP, LH
HIGH PACKAGE&HEADLAMP-DISCHARGE
HIGH PACKAGE&COLD AREA SPEC&HEADLAMP-DISCHARGE
HIGH PACKAGE&HEADLAMP-DISCHARGE
HIGH PACKAGE&HEADLAMP-DISCHARGE
HEADLAMP-DISCHARGE & *DRL(LED)&DAYTIME RUNNING LIGHT SYSTEM-WITH
HEADLAMP-DISCHARGE & *DRL(LED) & *AHB
HEADLAMP-DISCHARGE & *DRL(LED)&DAYTIME RUNNING LIGHT SYSTEM-WITH
HEADLAMP-DISCHARGE & *DRL(LED)&DAYTIME RUNNING LIGHT SYSTEM-WITH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
12V 21W
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 21/5W
12V 5W
81615DSOCKET, CLEARANCE LAMP
9010906382
main90109-06382
9015950311
main90159-50311
9018905142
main90189-05142

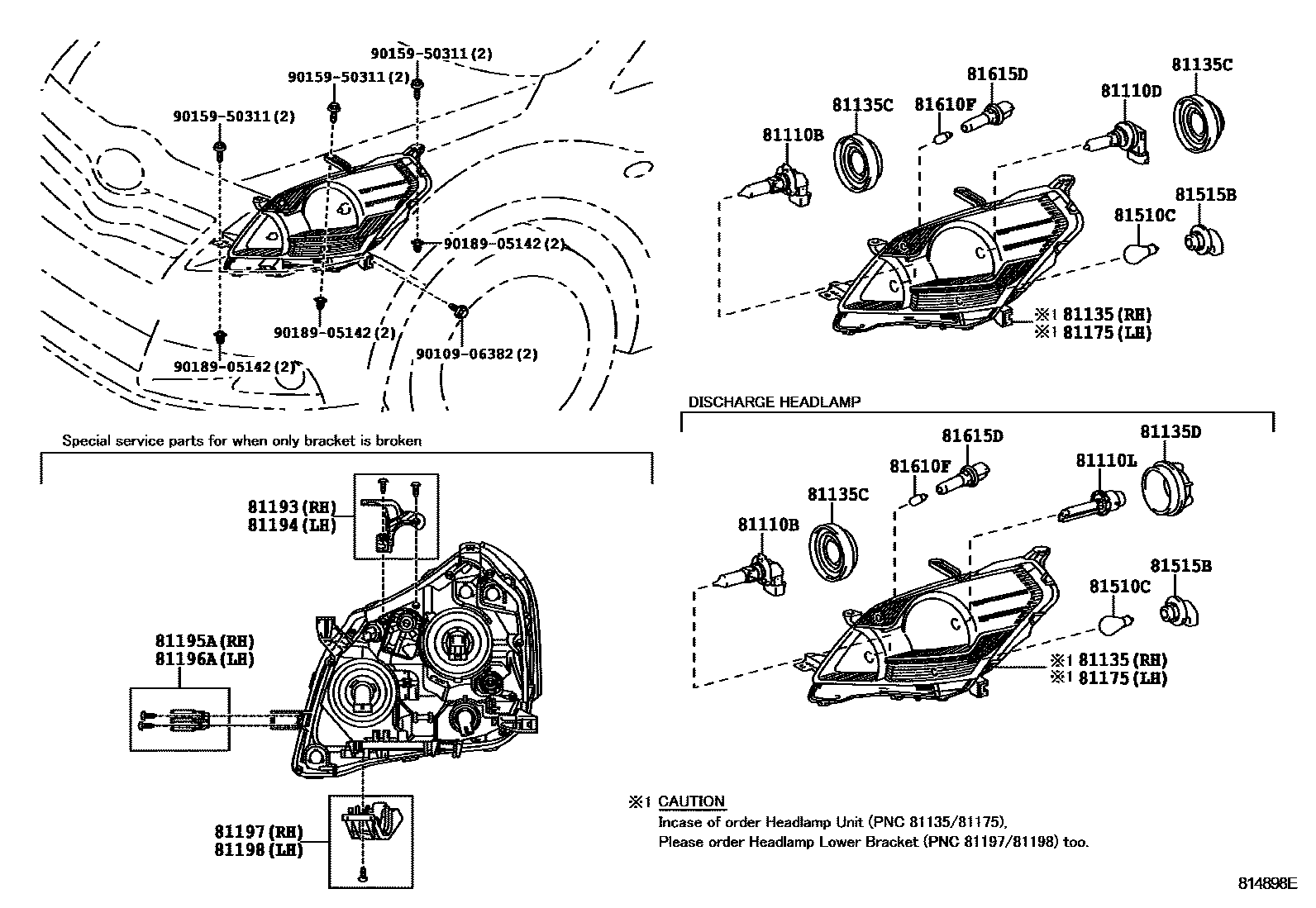

20 parts on this diagram · 3 diagrams in section
