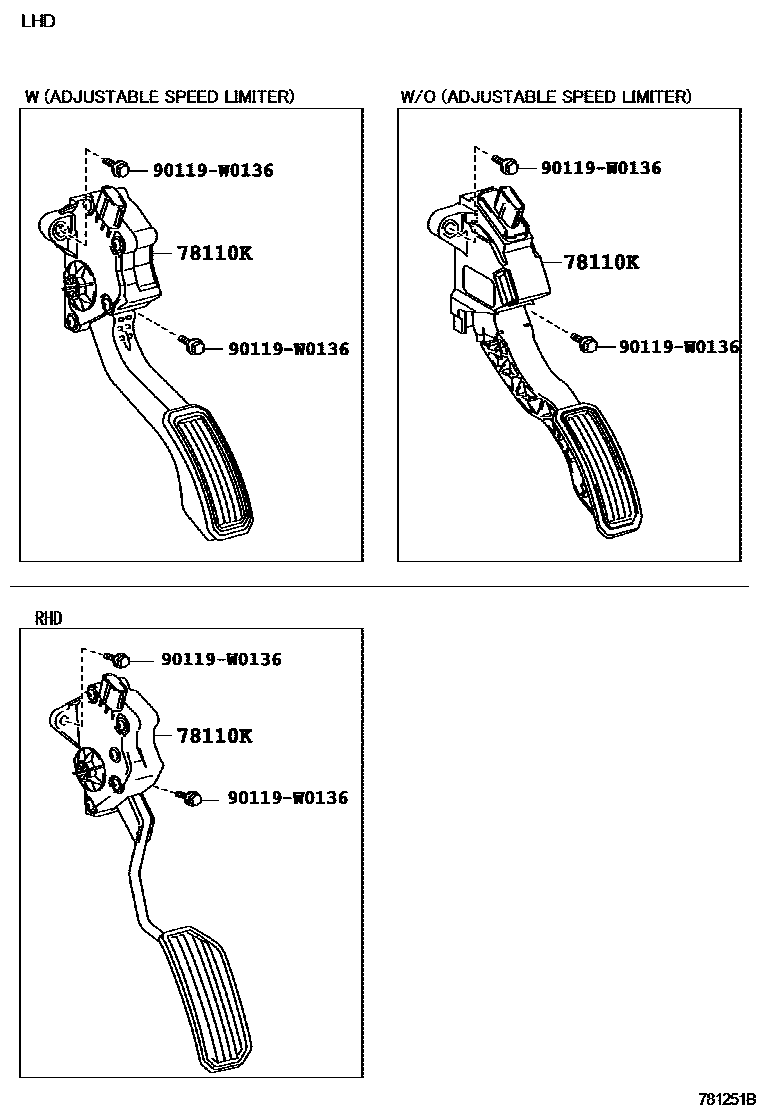

ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-02010iAUR2#,ZGR2#..LHD..6F200902-200912

main78110-02011iAUR2#,ZGR2#..LHD..6F201001-201007

main78110-02012iAUR2#,WAR20,ZGR2#..LHD..6F201211-201408

main78110-02020iAUR2#,ZGR2#..LHD..6F..E200902-200912

CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)

main78110-02021iAUR21,ZGR21..LHD..(ATM,CVT)201001-201007

CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)

main78110-02022iAUR2#,ZGR2#..LHD..6F..E201105-201211

CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)

main78110-02070iAUR2#,ZGR2#..RHD..6F200902-200908

main78110-02071iAUR2#,ZGR2#..RHD..6F200909-201007

main78110-02072iAUR20,WAR20,ZGR2#..RHD..6F201211-201409

main78110-02140iWAR20,ZGR2#..RHD..6F201503

main78110-02150iWAR20,ZGR2#..RHD..6F..E201503

CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)

main78110-05020iAUR2#,ZGR2#..RHD..6F..E200902-200908

CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)

main78110-05021iAUR2#,ZGR2#..RHD..6F..E200909-201007

CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)

main78110-05040supersedes 78110-05030iWAR20,ZGR2#..LHD..6F201503

CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)

main78110-0F010iAUR2#,WAR20,ZGR2#..LHD..6F201409-201503

main78110-0F020iAUR2#,ZGR2#..LHD..6F201409-201503

CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)

main78110-0F030iAUR20,WAR20,ZGR2#..RHD..6F201409-201503

main78110-0F040iAUR20,ZGR2#..RHD..6F..E201409-201503

CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)

90119W0136

main90119-W0136

2 parts on this diagram · 1 diagram in section
