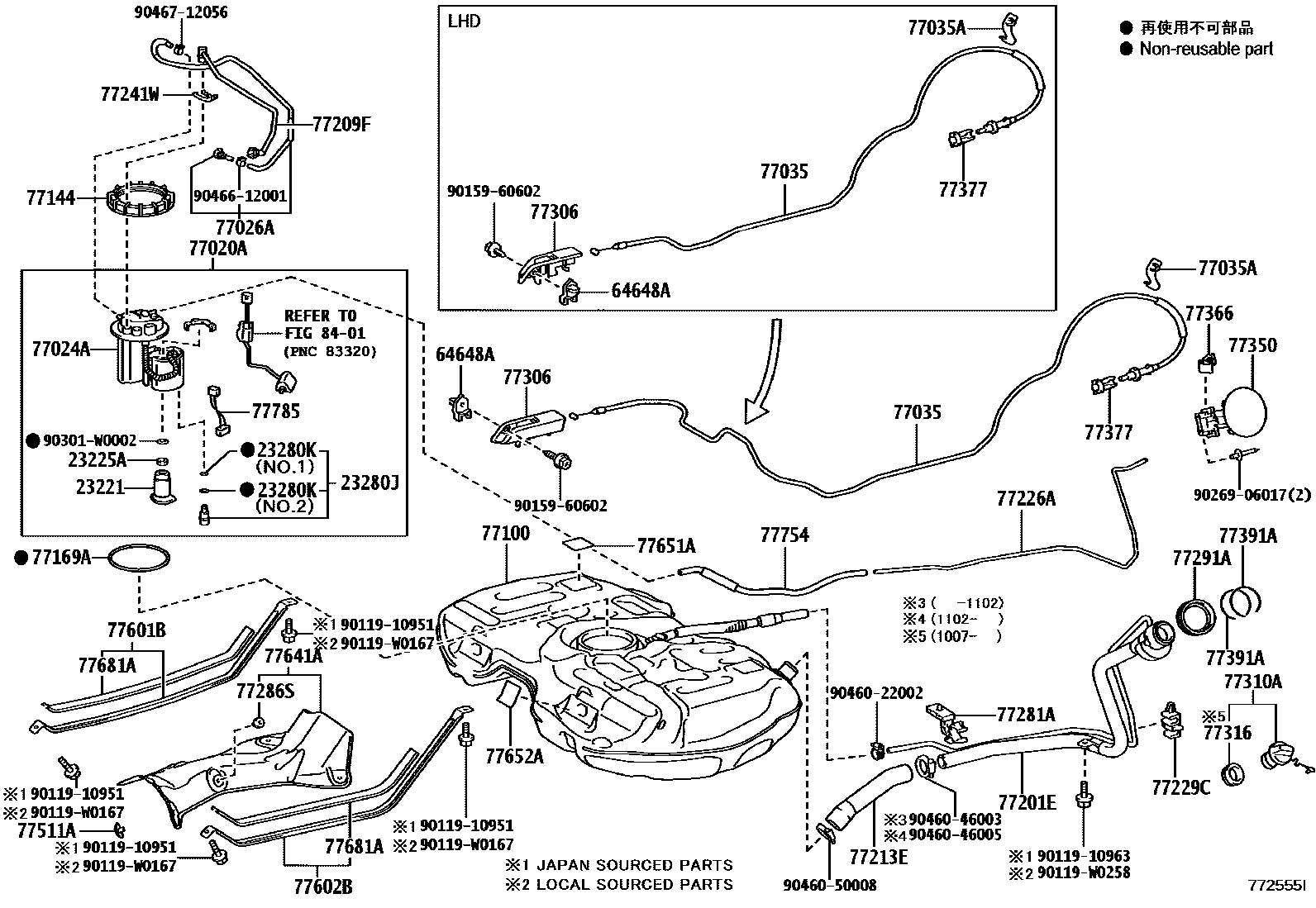

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE

23221PUMP, FUEL

main23220-0T060i1ZRFAE..ZGR20200902-201205

sub23220-0T061

sub77785-12010¥870

main23220-0T061i1ZRFAE..ZGR20201205-201503

main23220-0T070i2ZRFAE..ZGR21¥38,100200902-201205

sub23220-0T071¥31,700

sub77785-02081

sub77785-12010¥870

main23220-0T071i2ZRFAE..ZGR21¥31,700201205-201503

23225ASPACER, FUEL PUMP

main23225-0T010i1ZRFAE,2ZRFAE..ZGR2#¥410200902-201503

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1ZRFAE,2ZRFAE..ZGR2#¥6,000200902-201503

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ZRFAE..ZGR21..RHD..CVT..ENTRY¥140200902-201503

NO.1

main90301-15024i1ZRFAE,2ZRFAE..ZGR2#¥140200902-201503

NO.2

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iAUR2#,ZGR2#¥210200902-201503

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0F030iZGR20200902-201504

sub77020-0F031

main77020-0F031iZGR20201504

main77020-0F040iZGR21..RHD..CVT..ENTRY200902-201504

sub77020-0F041

main77020-0F041iZGR21201504

main77020-0F070iWAR20201401-201503

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0F030iZGR21..RHD..CVT..ENTRY200902-201504

sub77024-0F050

main77024-0F050iZGR2#201504

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-0F010iZGR2#200902-201503

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0F030iAUR2#,WAR20,ZGR2#..LHD200902-201512

sub77035-0F031

main77035-0F031iWAR20,ZGR2#..LHD201601

main77035-0F040iZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY200902-201512

sub77035-0F041

main77035-0F041iWAR20,ZGR2#..RHD201601

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main90469-07005iZGR21..RHD..CVT..ENTRY¥220200902-201503

77100TANK ASSY, FUEL

main77001-0F030iZGR2#200902-201503

main77001-0F040iAUR2#,WAR20200902-201503

77144RETAINER, FUEL PUMP GAUGE

main77144-0H010iAUR2#,ZGR2#¥2,490200902-201503

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D030iAUR2#,ZGR2#¥260200902-201503

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0F040iZGR2#201310-201503

main77201-0F050iWAR20201405-201503

main77201-64010iZGR21..RHD..CVT..ENTRY200902-201310

main77201-64020iAUR2#200902-201405

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0F020iZGR21..RHD..CVT..ENTRY200902-201503

main77209-0F030iWAR20201211-201503

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-0F020iAUR2#,WAR20,ZGR2#201212-201503

(L)

main77213-64030iAUR2#,ZGR2#200902-201211

main77213-64030iWAR20,ZGR2#201211-201503

(J)

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-0F020iZGR2#201503

main77226-0F020iZGR2#201310-201503

(L)

main77226-64010iZGR2#200902-201310

77229CCLAMP, BREATHER TUBE

main77229-12070iAUR2#,ZGR2#¥520200902-201503

77241WCLIP, TUBE JOINT

main77241-32060iZGR2#¥80200902-201503

main77241-32060iWAR20,ZGR2#¥80201503

COLD AREA SPEC

77281ACLAMP, FUEL FILLER PIPE

main77281-64010iAUR2#,ZGR2#200902-201503

77286SCUSHION, FUEL TANK PROTECTOR

main77286-02070iAUR2#,ZGR2#201208-201503

main77286-12110iAUR2#,ZGR2#¥200200902-201207

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02080iZGR21..RHD..CVT..ENTRY200902-201404

main77291-02240iAUR2#,WAR20,ZGR2#201405-201503

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-0D110iWAR20,ZGR2#..RHD201503

(L)

main77306-0D120iWAR20,ZGR2#..LHD201503

(L)

main77306-52030iAUR2#,ZGR2#..RHD¥2,640200902-201009

main77306-52040iAUR2#,ZGR2#..LHD¥2,640200902-201009

main77306-52050iWAR20,ZGR2#..RHD¥1,850201503

(J)

main77306-52050iZGR21..RHD..CVT..ENTRY¥1,850201009-201502

main77306-52060iWAR20,ZGR2#..LHD¥2,050201503

(J)

main77306-52060iAUR2#,ZGR2#..LHD¥2,050201009-201502

77310ACAP ASSY, FUEL TANK

main77300-12020iZGR2#¥1,660201310-201503

main77300-12030iWAR20¥1,660201310-201503

main77300-20020iAUR2#¥2,200200902-201310

main77300-52030iZGR2#¥1,560200902-201310

77316GASKET, FUEL TANK CAP

main77316-52040iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY¥230201007-201503

77350LID ASSY, FUEL FILLER OPENING

main77350-64020iAUR2#,ZGR2#200902-201503

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iAUR2#,ZGR2#¥60200902-201503

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-0D060iAUR2#,WAR20,ZGR2#201305-201503

main77377-12060iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY¥180200902-201304

77391ARING, FUEL INLET BOX

main77391-12020iAUR2#,ZGR2#¥180200902-201503

77511ABRACKET, FUEL TANK

main77512-35140iAUR2#,ZGR2#¥230200902-201503

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-0F020iAUR2#,ZGR2#200902-201409

main77601-0F040iWAR20,ZGR2#201410-201503

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0F020iZGR21..RHD..CVT..ENTRY200902-201409

main77602-0F040iAUR2#,WAR20,ZGR2#201410-201503

77641APROTECTOR, FUEL TANK, NO.1

main77641-0F020iAUR2#,ZGR2#200902-201503

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iAUR2#,ZGR2#¥230200902-201503

77652ACUSHION, FUEL TANK, NO.2

main77652-45030iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY200902-201503

77681ASEAT, FUEL TANK BAND

main77681-0F010iZGR21..RHD..CVT..ENTRY200902-201503

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-0F010iZGR2#200902-201503

77785HARNESS, FUEL PUMP

main77785-02081iZGR2#201205-201503

main77785-12020iZGR2#¥870200902-201205

8401

9011910951

main90119-10951¥160

9011910963

main90119-10963¥120

90119W0167

main90119-W0167

90119W0258

main90119-W0258

9015960602

main90159-60602¥60

9026906017

main90269-06017¥140

90301W0002

main90301-W0002¥130

9046022002

main90460-22002¥530

9046046003

main90460-46003¥310

9046046005

main90460-46005¥190

9046050008

main90460-50008¥240

9046612001

main90466-12001¥120

9046712056

main90467-12056¥70

52 parts on this diagram · 9 diagrams in section
