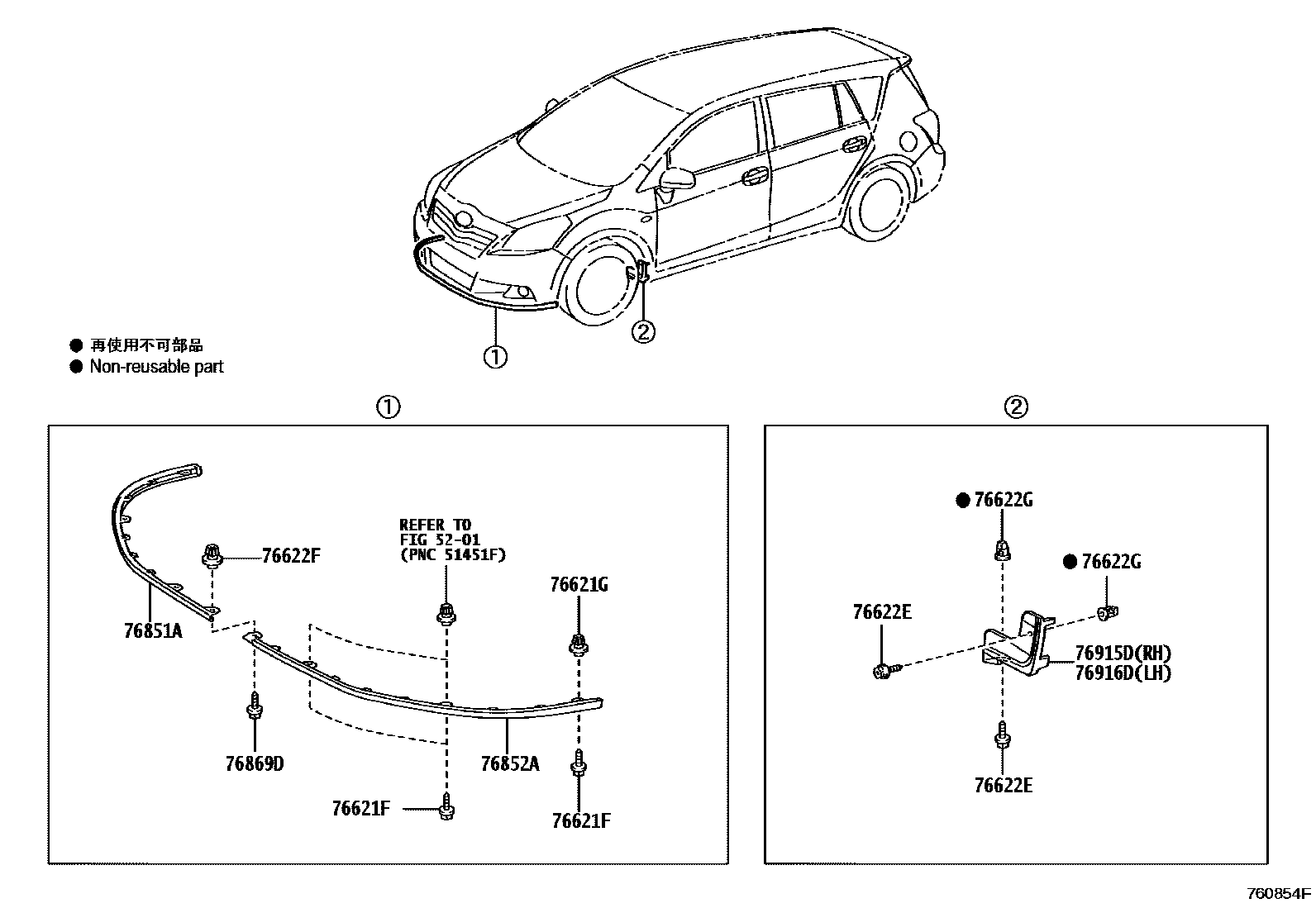

MUDGUARD & SPOILER

0001 1FRONT 0002 1FRONT 0003 1REAR

5201

76621FSCREW, NO.1

main90159-60488iAUR2#,ZGR2#¥70200902-201710

76621GGROMMET, NO.1

main90189-05144iAUR2#,ZGR2#¥80200902-201710

76622ESCREW, NO.3

main90159-60602iAUR2#,ZGR2#¥60200902-201710

76622FGROMMET, NO.2

main90189-05144iAUR2#,ZGR2#¥80200902-201710

76622GGROMMET, NO.3

main90189-06013iWAR20,ZGR2#¥70200902-201710

76851ACOVER, FRONT SPOILER, RH

main76851-0F050iWAR20,ZGR2#201211-201503

main76851-0F903iAUR2#,ZGR2#200902-201107

sub76851-0F907

main76851-0F907iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201107-201211

76852ACOVER, FRONT SPOILER, LH

main76852-0F050iAUR2#,WAR20,ZGR2#201211-201503

main76852-0F903iAUR2#,ZGR2#200902-201107

sub76852-0F907

main76852-0F907iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201107-201211

76869DSCREW, NO.2

main90159-60488iAUR2#,ZGR2#¥70200902-201710

76915DMUDGUARD, SIDE, FRONT RH

main76915-0F020iAUR2#,ZGR2#200902-201503

76916DMUDGUARD, SIDE, FRONT LH

main76916-0F020iAUR2#,ZGR2#200902-201503

11 parts on this diagram · 3 diagrams in section
