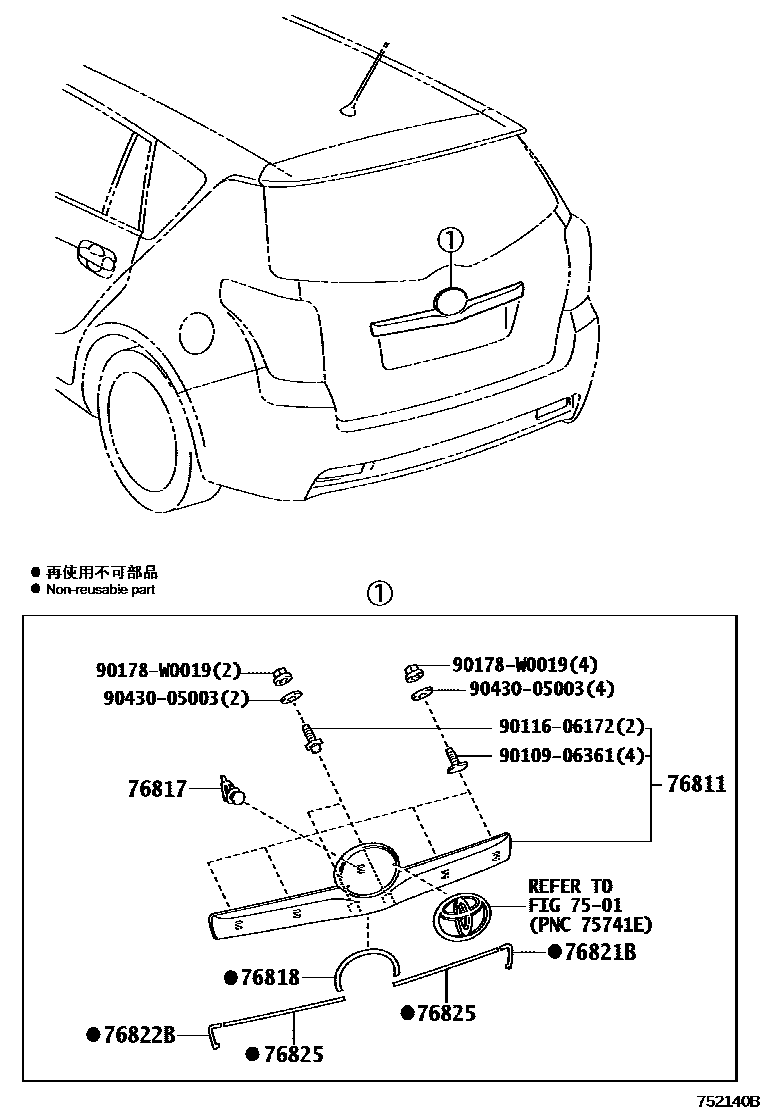

REAR MOULDING

0001 1 0002 1

7501

76811GARNISH, BACK DOOR, OUTSIDE

main76811-0F905iZGR21..RHD..CVT;ZGR21..LHD..CVT..E;AUR2#,ZGR2#..(6F,6FC)..E200902-201211

main76811-0F906iAUR2#,ZGR2#..E201111-201211

AUDIO-DISPLAY 6SPEAKER BLUETOOTH

main76811-0F909iWAR20,ZGR2#..E201211-201503

AUDIO-RADIO LESS 6SPEAKER

main76811-0F909iZGR2#..LHD..E201211-201503

WEST RUSSIA SPEC&AUDIO-RADIO LESS 6SPEAKER

main76811-0F910iWAR20,ZGR20..LHD..ENTRY201211-201503

AUDIO-*DA *BT 6SPEAKER DAB

main76811-0F910iAUR2#,WAR20,ZGR2#..E201211-201503

AUDIO-*DA *BT 6SPEAKER

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-50010iAUR2#,ZGR2#200902-201503

76818PAD, BACK DOOR OUTSIDE GARNISH

main76818-0F010iAUR2#,ZGR2#200902-201211

main76818-0F020iAUR2#,WAR20,ZGR2#201211-201503

76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76821-0F010iAUR2#,ZGR2#200902-201211

main76821-0F030iAUR2#,WAR20,ZGR2#201211-201503

76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76822-0F010iAUR2#,ZGR2#200902-201211

main76822-0F030iAUR2#,WAR20,ZGR2#201211-201503

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0F030iAUR2#,ZGR2#200902-201211

main76825-0F050iAUR2#,WAR20,ZGR2#201211-201503

9010906361

main90109-06361

9011606172

main90116-06172

90178W0019

main90178-W0019

9043005003

main90430-05003

11 parts on this diagram · 2 diagrams in section
