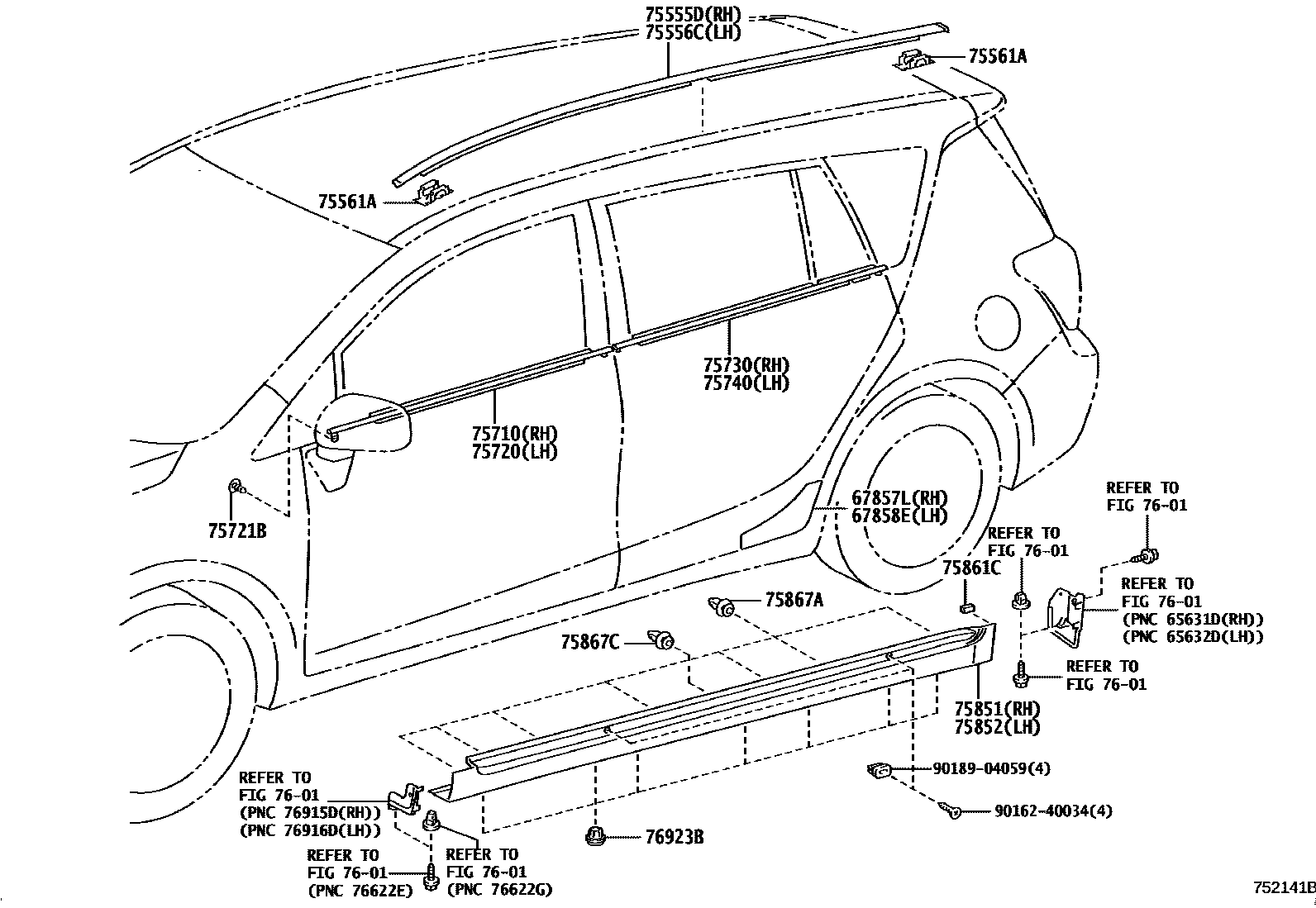

SIDE MOULDING

67857LPROTECTOR, REAR DOOR PANEL, RH

main67857-0F020iAUR2#,ZGR2#200902-201710

67858EPROTECTOR, REAR DOOR PANEL, LH

main67858-0F020iAUR2#,ZGR2#200902-201503

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-0F020iAUR2#,ZGR2#200902-201503

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-0F020iAUR2#,ZGR2#200902-201503

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52040iAUR2#,ZGR2#¥100200902-201503

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-0F020iAUR2#,ZGR2#200902-201503

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-0F020iAUR2#,ZGR2#200902-201503

75721BCLIP(FOR FRONT DOOR BELT MOULDING SET)

main90467-05045-22iAUR2#,ZGR2#200902-201710

BLACK

sub90467-05045¥140

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-0F020iAUR2#,ZGR2#200902-201503

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-0F020iAUR2#,ZGR2#200902-201503

75851MOULDING, ROCKER PANEL, RH

main75851-0F900iAUR2#,ZGR2#200902-201503

75852MOULDING, ROCKER PANEL, LH

main75852-0F900iAUR2#,ZGR2#200902-201503

75861CPAD, ROCKER PANEL MOULDING

main75861-0F010iAUR2#,ZGR2#200902-201503

75867ACLIP, ROCKER PANEL MOULDING

main75867-33030iAUR2#,ZGR2#¥210200902-201503

75867CCLIP, ROCKER PANEL MOULDING

main75867-33030iAUR2#,ZGR2#¥210200902-201503

7601

76923BRETAINER, SIDE MUDGUARD

main76923-52021iAUR2#,ZGR2#¥220200902-201503

9016240034

main90162-40034¥60

9018904059

main90189-04059¥70

19 parts on this diagram · 1 diagram in section
