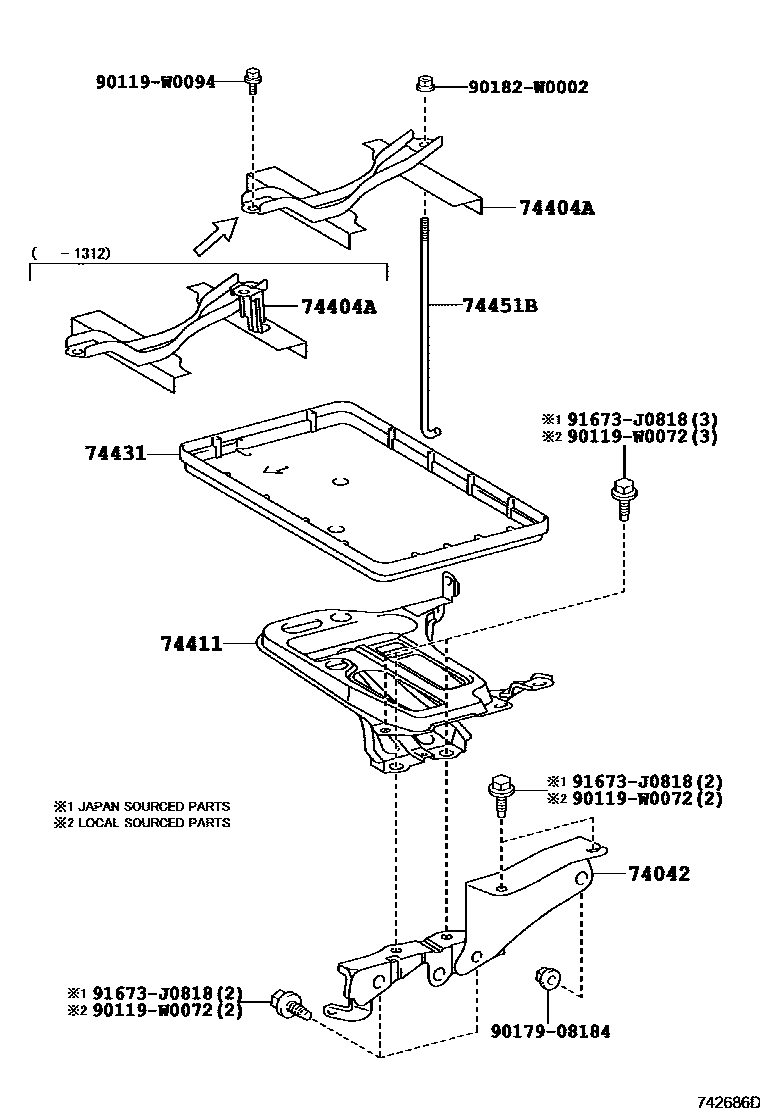

BATTERY CARRIER

0001 1 0002 1 0003 1

74042BRACKET SUB-ASSY, BATTERY

main74401-05010iAUR2#,ZGR2#201211-201503

main74401-0F020iWAR20201503

74404ACLAMP SUB-ASSY, BATTERY

main74404-02120iAUR2#201211-201312

main74404-02121iAUR2#201312-201503

main74404-02140iZGR21..RHD..CVT..ENTRY201007-201111

main74404-02141iZGR2#201312-201503

main74404-0F060iWAR20201401-201503

main74404-02260iZGR2#..LHD200902-201007

BATTERY-DIN-H5 60AH 500A

main74404-02280iZGR2#..LHD201211-201312

BATTERY-LN2,60AH,500A

main74404-02281iZGR2#..LHD201503

BATTERY-LN2,60AH,500A

74411CARRIER, BATTERY

main74410-05020iZGR2#201503

main74410-05030iAUR2#200902-201007

main74410-0F020iWAR20201503

74431TRAY, BATTERY

main74431-02140iAUR2#201007-201211

main74431-02160iZGR2#201503

main74431-0F030iWAR20201401-201503

74451BBOLT, BATTERY CLAMP

main74451-02140iAUR2#,WAR20,ZGR2#201308-201407

main74451-30110iZGR21..RHD..CVT..ENTRY201007-201111

90119W0072

main90119-W0072

90119W0094

main90119-W0094

9017908184

main90179-08184

90182W0002

main90182-W0002

91673J0818

main91673-J0818

10 parts on this diagram · 3 diagrams in section
