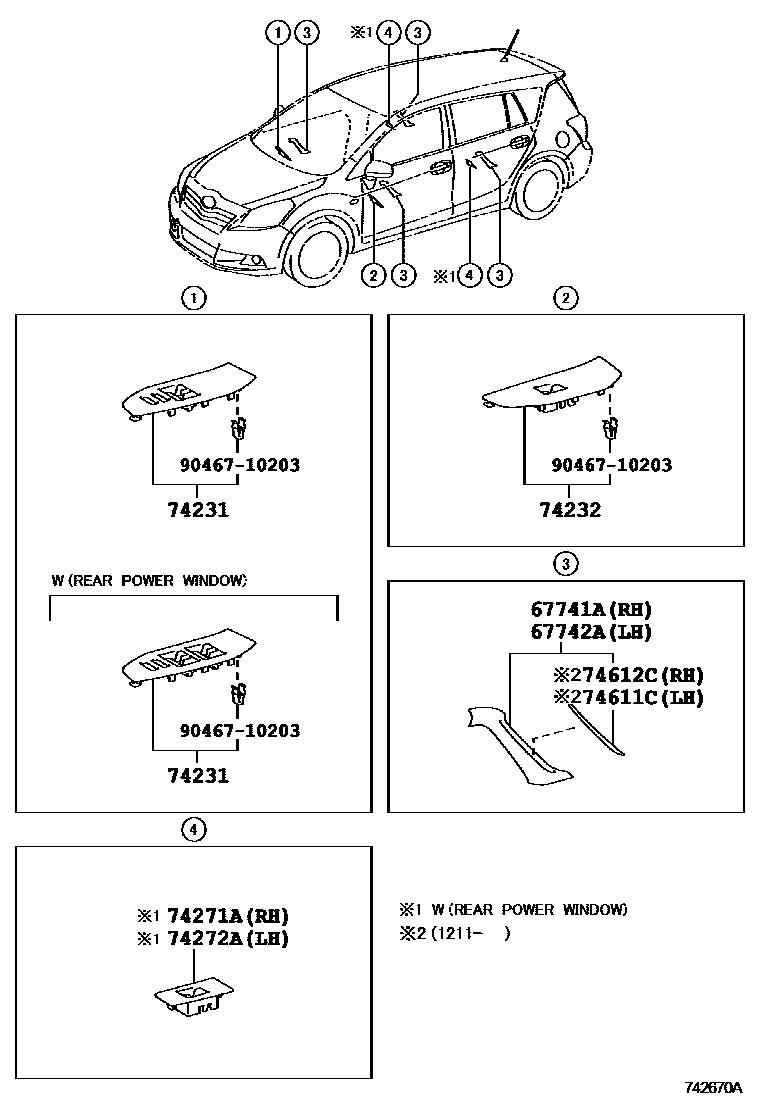

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

67741AMOULDING, FRONT DOOR TRIM, RH

main67741-0F020×2iAUR2#,ZGR2#200902-201004

main67741-0F050×2iAUR2#,ZGR2#201004-201007

main67741-0F060×2iAUR2#,WAR20,ZGR2#201211-201503

67742AMOULDING, FRONT DOOR TRIM, LH

main67742-0F020×2iAUR2#,ZGR2#200902-201004

main67742-0F050×2iAUR2#,ZGR2#201004-201007

main67742-0F060×2iAUR2#,WAR20,ZGR2#201211-201503

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0F040-B0iAUR2#,ZGR2#..LHD200902-201007

DK.GRAY,TRIM1#

main74231-0F050-B0iAUR2#,ZGR2#..RHD..E201007-201211

DK.GRAY,TRIM1#

main74231-0F060-B0iWAR20,ZGR20..RHD..ENTRY201503-201710

DK.GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0F040-B0iAUR2#,ZGR2#..LHD..E200902-201007

DK.GRAY,TRIM1#

main74232-0F050-B0iZGR21..RHD..CVT..ENTRY201007-201111

DK.GRAY,TRIM1#

main74232-0F060-B0iWAR20,ZGR2#..LHD..ENTRY201503-201710

DK.GRAY,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0F010-B0iAUR2#,ZGR2#..E201007-201211

DK.GRAY,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0F010-B0iWAR20,ZGR2#..E201503-201710

DK.GRAY,TRIM1#

74611CCOVER, ASSIST GRIP, LH

main74611-0F010×4iAUR2#,WAR20,ZGR2#201211-201503

74612COVER, ASSIST GRIP

main74612-0D080-B1×8iAUR2#,ZGR2#200902-201007

LT.GRAY,TRIM1#,(L)

main74612-52030-B1×8iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

LT.GRAY,TRIM1#,(J)

74612CCOVER, ASSIST GRIP, RH

main74612-0F010×4iAUR2#,WAR20,ZGR2#201211-201503

9046710203

main90467-10203

10 parts on this diagram · 3 diagrams in section
