SEAT BELT & CHILD RESTRAINT SEAT

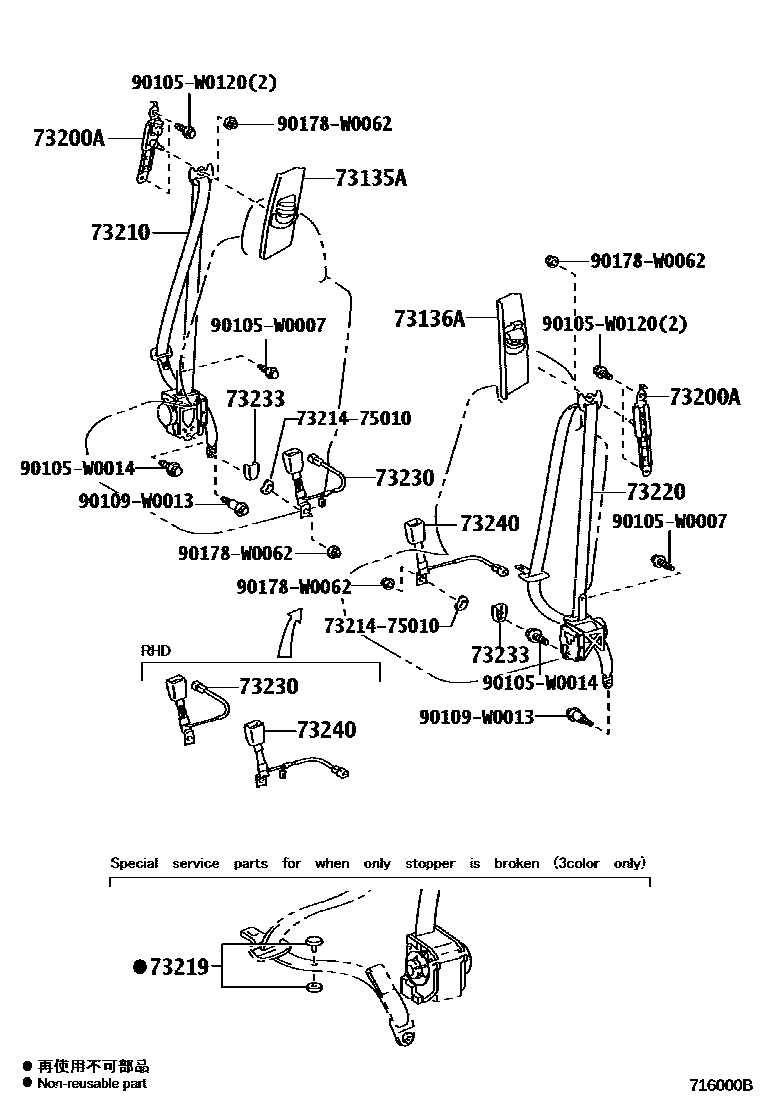

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73023-02030-B0i200902-201710
LT.GRAY,TRIM1#
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73024-02030-B0i200902-201710
LT.GRAY,TRIM1#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-02100i¥3,620200902-201503
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-0F050-B0i200902-201111
DK.GRAY,TRIM1#
main73210-0F051-B0i201111-201211
DK.GRAY,TRIM1#
sub73210-0F052
main73210-0F051-B1i201211-201212
BLACK/DK.GRAY,TRIM1#
sub73210-0F052
main73210-0F052-B1i201212-201312
BLACK/DK.GRAY,TRIM1#
main73210-0F053-B2i201401-201710
BLACK,TRIM1#
73219STOPPER, TONGUE PLATE
main73219-33010i¥100200902-201503
BLACK
main73219-33020i¥100200902-201503
GRAY
main73219-33030i¥100200902-201503
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-0F050-B0i200902-201111
DK.GRAY,TRIM1#
main73220-0F051-B0i201111-201211
DK.GRAY,TRIM1#
main73220-0F051-B1i201211-201212
BLACK/DK.GRAY,TRIM1#
main73220-0F052-B1i201212-201312
BLACK/DK.GRAY,TRIM1#
main73220-0F053-B2i201401-201710
BLACK,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-0F030-B0i200902-201710
DK.GRAY,TRIM1#
main73230-0F040-B0i200902-201710
DK.GRAY,TRIM1#
73233COVER, LAP BELT OUTER ANCHOR
main73233-02040-B0i200902-201401
DK.GRAY,TRIM1#
main73233-02040-C0i201401-201710
BLACK,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-0F030-B0i200902-201710
DK.GRAY,TRIM1#
main73230-0F040-B0i200902-201710
DK.GRAY,TRIM1#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010¥170
90105W0007
main90105-W0007¥100
90105W0014
main90105-W0014¥100
90105W0120
main90105-W0120¥100
90109W0013
main90109-W0013¥240
90178W0062
main90178-W0062¥100

15 parts on this diagram · 2 diagrams in section
