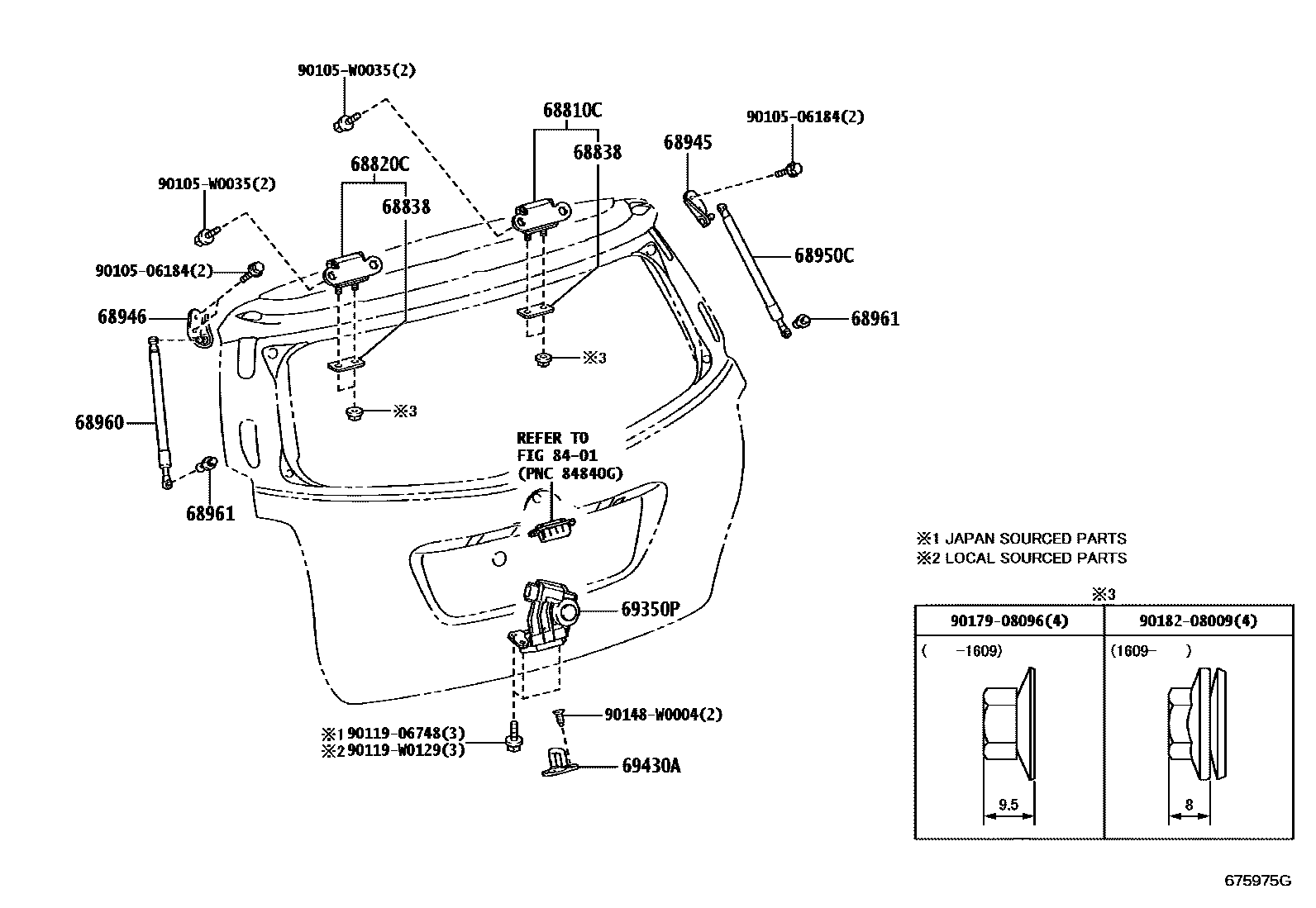

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-02020iAUR2#,ZGR2#201202-201211

(L)

sub68810-21051

main68810-05010iZGR21..RHD..CVT..ENTRY201007-201111

(L)

main68810-0F040iWAR20,ZGR2#201609-201710

main68810-21050iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

(J)

68820CHINGE ASSY, BACK DOOR, LH

main68810-02020iAUR2#,ZGR2#201202-201211

(L)

sub68810-21051

main68810-05010iAUR2#,ZGR2#200902-201007

(L)

main68810-0F040iWAR20,ZGR2#201609

main68810-21050iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

(J)

68838PAD, BACK DOOR HINGE, NO.1

main68838-05020×2iAUR2#,ZGR2#201007-201105

(L)

main68838-05040×2iAUR2#,WAR20,ZGR2#201211-201503

T=1.0

main68838-05050×2iAUR2#,WAR20,ZGR2#201211-201503

T=1.6

main68838-05060×2iAUR2#,WAR20,ZGR2#201211-201503

T=2.0

main68838-44020×2iZGR21..RHD..CVT..ENTRY201007-201111

(J)

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-64010iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-64010iAUR2#,ZGR2#200902-201007

68950CSTAY ASSY, BACK DOOR, RH

main68950-0F030iAUR2#,ZGR2#200902-201007

main68950-0F031iZGR21..RHD..CVT..ENTRY201109-201111

main68950-0F032iWAR20,ZGR2#201503

68960STAY ASSY, BACK DOOR, LH

main68960-0F030iAUR2#,ZGR2#200902-201007

main68960-0F031iZGR21..RHD..CVT..ENTRY201109-201111

main68960-0F032iWAR20,ZGR2#201503

68961BOLT, BACK DOOR STAY

main68961-05010×2iAUR2#,ZGR2#200902-201007

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-02080iAUR2#,ZGR2#200902-201007

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-0D020iAUR2#,ZGR2#200902-201007

8401

9010506184

main90105-06184

90105W0035

main90105-W0035

9011906748

main90119-06748

90119W0129

main90119-W0129

90148W0004

main90148-W0004

9017908096

main90179-08096

9018208009

main90182-08009

18 parts on this diagram · 1 diagram in section
