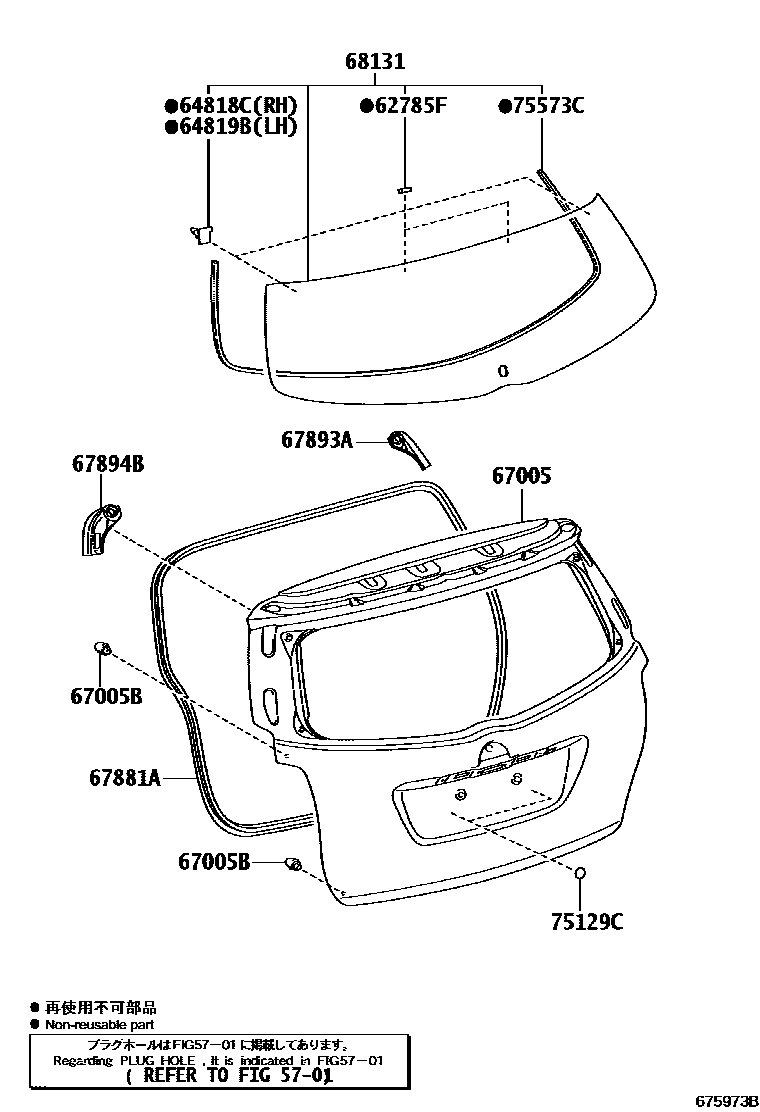

BACK DOOR PANEL & GLASS
5701
62785FSPACER, BACK DOOR GLASS
64818CSPACER, BACK WINDOW GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
AUDIO-DISPLAY 6SPEAKER BLUETOOTH
AUDIO-RADIO LESS 6SPEAKER
AUDIO-*DA *BT 6SPEAKER DAB
AUDIO-*DA *BT 6SPEAKER
67005BCUSHION(FOR BACK DOOR PANEL)
67881AWEATHERSTRIP, BACK DOOR
67893APROTECTOR, BACK DOOR PANEL, NO.1
67894BPROTECTOR, BACK DOOR PANEL, NO.2
68131GLASS, BACK DOOR
*EHT,T=3.1,GREEN
*EHT,T=3.1,GREEN,ANTI-THEFT SYSTEM-WITH(ALARM & *IM) & WITHOUT(*IS & *GBS)
*EHT,T=3.1,GREEN,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
*EHT,T=3.1,GREEN
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
12 parts on this diagram · 3 diagrams in section
