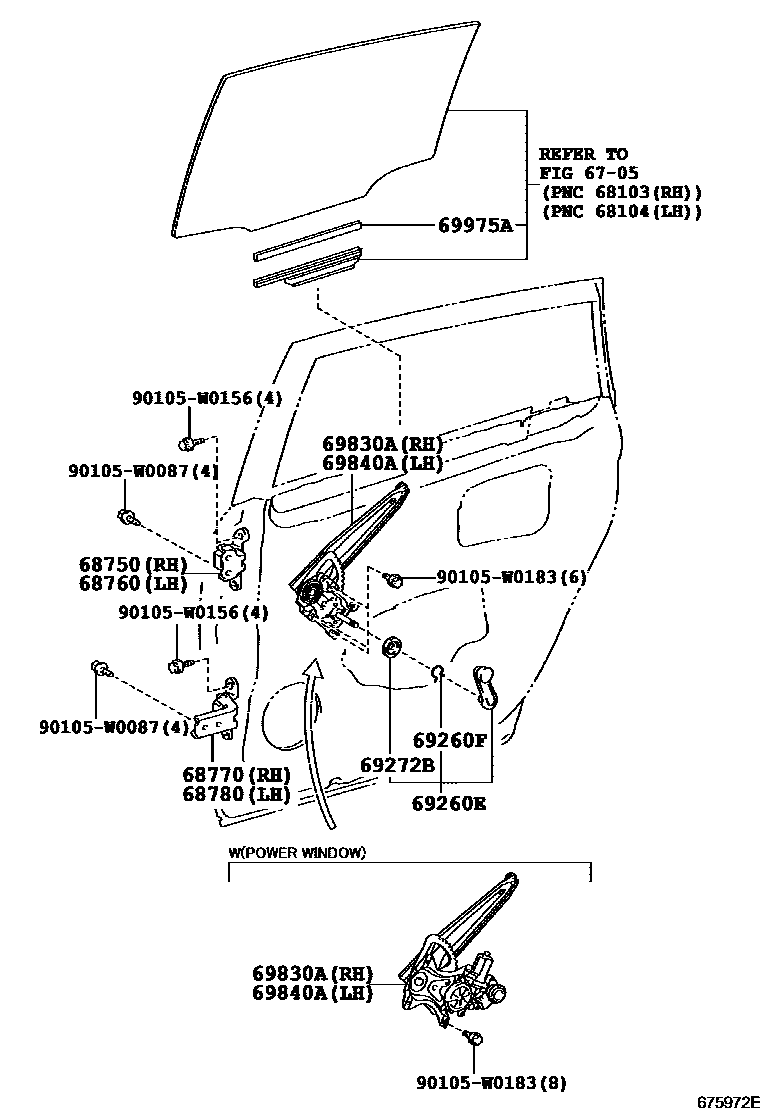

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D061iAUR2#,WAR20,ZGR2#201211-201503

sub68750-0H010

main68750-0H010iZGR21..RHD..CVT..ENTRY200902-201211

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D061iWAR20,ZGR2#201211-201503

sub68760-0H010

main68760-0H010iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY200902-201211

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D071iWAR20,ZGR2#201211-201503

sub68770-0H010

main68770-0H010iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY200902-201211

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D071iWAR20,ZGR2#201211-201503

sub68780-0H010

main68780-0H010iZGR21..RHD..CVT..ENTRY200902-201211

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-0F010-B0iAUR20,ZGR2#..LHD..6F..ENTRY200902-201710

DK.GRAY,TRIM1#

main69260-0F010-B0iAUR20,ZGR2#..LHD..6F..ENTRY201007-201211

POWER WINDOW-FRONT & REAR(ALL ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90524-15005iAUR20,WAR20,ZGR2#..ENTRY200902-201503

main90524-15005iAUR20,ZGR2#..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

POWER WINDOW-FRONT & REAR(ALL ONE TOUCH UP/DOWN)

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-0F010iAUR20,ZGR2#..ENTRY200902-201503

main69268-0F010iAUR20,ZGR2#..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

POWER WINDOW-FRONT & REAR(ALL ONE TOUCH UP/DOWN)

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-0F030iWAR20,ZGR2#..ENTRY200902-201503

main69830-0F040iAUR2#,ZGR2#..E200902-201312

sub69830-0F041

main69830-0F041iWAR20,ZGR2#..E201401-201503

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-0F030iWAR20,ZGR2#..ENTRY200902-201503

main69840-0F040iAUR2#,ZGR2#..E200902-201312

sub69840-0F041

main69840-0F041iAUR2#,WAR20,ZGR2#..E201401-201503

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010iAUR2#,ZGR2#200902-201710

90105W0087

main90105-W0087

90105W0156

main90105-W0156

90105W0183

main90105-W0183

14 parts on this diagram · 1 diagram in section
