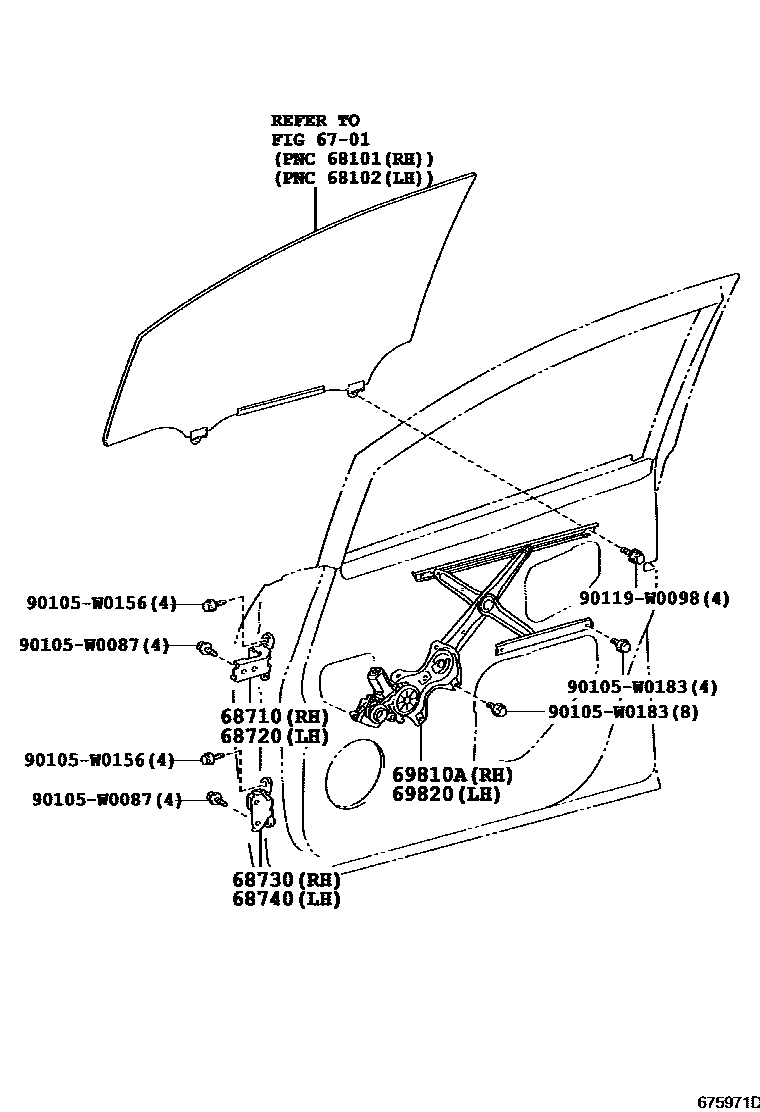

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02060iAUR2#,ZGR2#200902-201211

main68710-0D091iAUR2#,WAR20,ZGR2#201211-201503

sub68710-02060

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02060iAUR2#,ZGR2#200902-201211

main68720-0D091iAUR2#,WAR20,ZGR2#201211-201503

sub68720-02060

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02050iAUR2#,ZGR2#200902-201211

main68730-0D071iAUR2#,WAR20,ZGR2#201211-201503

sub68730-02050

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02050iAUR2#,ZGR2#200902-201211

main68740-0D071iAUR2#,WAR20,ZGR2#201211-201503

sub68740-02050

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-0F020iAUR2#,ZGR2#200902-201312

sub69810-0F021

main69810-0F021iAUR2#,WAR20,ZGR2#201401-201503

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-0F020iAUR2#,ZGR2#200902-201312

sub69820-0F021

main69820-0F021iAUR2#,WAR20,ZGR2#201401-201503

90105W0087

main90105-W0087

90105W0156

main90105-W0156

90105W0183

main90105-W0183

90119W0098

main90119-W0098

11 parts on this diagram · 1 diagram in section
