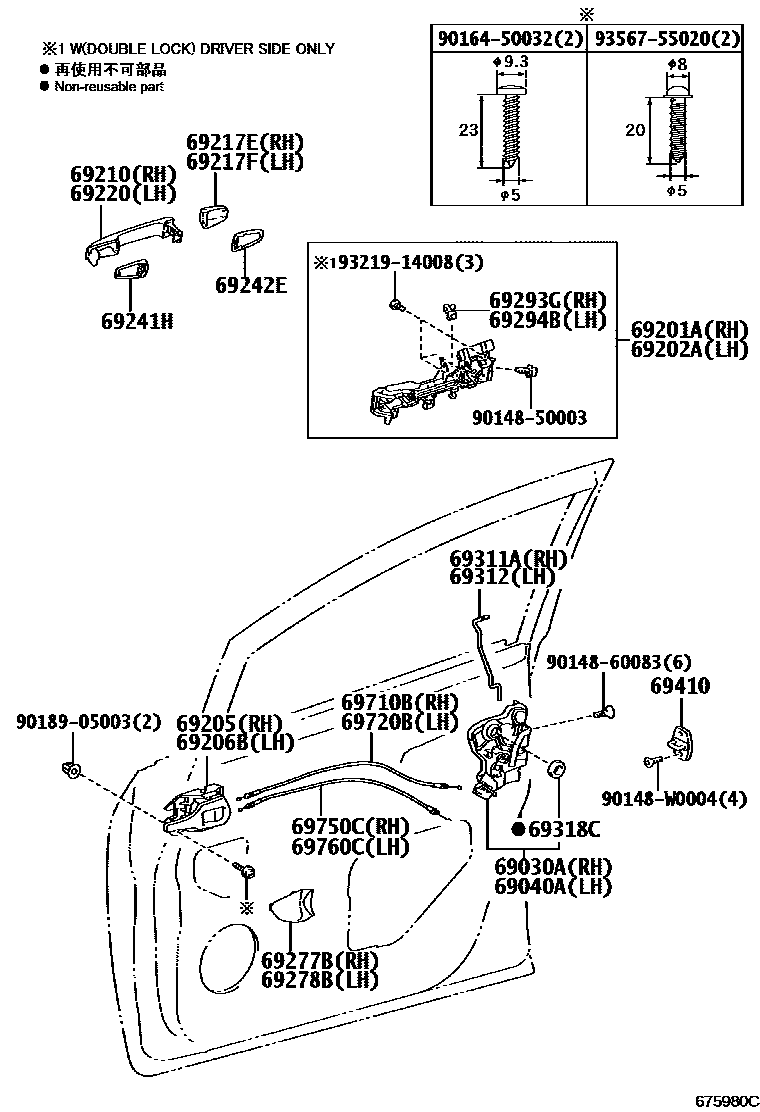

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
sub69030-02231
main69030-02250supersedes 69030-02240iZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY201007-201211
POWER DOOR LOCK-WITH(DOUBLE LOCK)
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-02240supersedes 69040-02250iZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY201007-201211
POWER DOOR LOCK-WITH(DOUBLE LOCK)
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
POWER DOOR LOCK-WITH(DOUBLE LOCK)
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
GRAY,TRIM1#
ORNAMENT SILVER,TRIM1#
21BK20,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
GRAY,TRIM1#
ORNAMENT SILVER,TRIM1#
21BK20,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PAINT REQ.
PAINT REQ.
WIRELESS DOOR LOCK-WITH(SMART ENTRY),SUPER WHITE 2,040
WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAY ME.,1G3
POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),SILVER ME.,1F7
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK MC.,209
WIRELESS DOOR LOCK-WITH(SMART ENTRY),RED M.M.,3R3
WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.BLUE MC.,8S6
WIRELESS DOOR LOCK-WITH(SMART ENTRY),LT.BLUE M.M.,8S1
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLUE ME.,8T4
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.BLUE ME.,8T8
WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.PURPLE,9AK
WIRELESS DOOR LOCK-WITH(SMART ENTRY),SUPER WHITE 2,040
WIRELESS DOOR LOCK-W(SMART ENTRY),WHITE PEARL CS.,070
WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAY ME.,1G3
POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),SILVER ME.,1F7
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAY ME.,1G6
WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK. STEEL MC.,1H2
WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAY ME.,1G2
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK MC.,209
WIRELESS DOOR LOCK-WITH(SMART ENTRY),RED M.M.,3R3
WIRELESS DOOR LOCK-W(SMART ENTRY),RED MC.,3T3
WIRELESS DOOR LOCK-WITH(SMART ENTRY),AVANT-GARDE BRONZE ME.,4V8
WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAYISH TEAL ME.,784
WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.BLUE MC.,8S6
WIRELESS DOOR LOCK-WITH(SMART ENTRY),LT.BLUE M.M.,8S1
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLUE ME.,8T4
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.BLUE ME.,8T8
WIRELESS DOOR LOCK-W(SMART ENTRY),DK.BLUE,8Q4
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLUE ME.,8T7
POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.PURPLE,9AK
WIRELESS DOOR LOCK-W(SMART ENTRY),DK.VIOLET M.M.,9AF
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
LESS COLOR
LESS COLOR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
LESS COLOR
LESS COLOR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PAINT REQ.
PAINT REQ.
WIRELESS DOOR LOCK-WITH(SMART ENTRY),SUPER WHITE 2,040
WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAY ME.,1G3
POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),SILVER ME.,1F7
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK MC.,209
WIRELESS DOOR LOCK-WITH(SMART ENTRY),RED M.M.,3R3
WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.BLUE MC.,8S6
WIRELESS DOOR LOCK-WITH(SMART ENTRY),LT.BLUE M.M.,8S1
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLUE ME.,8T4
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.BLUE ME.,8T8
WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.PURPLE,9AK
WIRELESS DOOR LOCK-WITH(SMART ENTRY),SUPER WHITE 2,040
WIRELESS DOOR LOCK-WITH(SMART ENTRY),WHITE PEARL CS.,070
POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAY ME.,1G3
POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),SILVER ME.,1F7
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAY ME.,1G6
WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK. STEEL MC.,1H2
WIRELESS DOOR LOCK-W(SMART ENTRY),GRAY ME.,1G2
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK MC.,209
WIRELESS DOOR LOCK-WITH(SMART ENTRY),RED M.M.,3R3
WIRELESS DOOR LOCK-W(SMART ENTRY),RED MC.,3T3
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-W(SMART ENTRY),AVANT-GARDE BRONZE ME.,4V8
WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAYISH TEAL ME.,784
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.BLUE MC.,8S6
WIRELESS DOOR LOCK-WITH(SMART ENTRY),LT.BLUE M.M.,8S1
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLUE ME.,8T4
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.BLUE ME.,8T8
WIRELESS DOOR LOCK-W(SMART ENTRY),DK.BLUE,8Q4
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLUE ME.,8T7
POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.PURPLE,9AK
WIRELESS DOOR LOCK-W(SMART ENTRY),DK.VIOLET M.M.,9AF
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
DK.GRAY,TRIM1#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
DK.GRAY,TRIM1#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860083
main90148-60083
90148W0004
main90148-W0004
9016450032
main90164-50032
9018905003
main90189-05003
9321914008
main93219-14008
9356755020
main93567-55020
31 parts on this diagram · 1 diagram in section
