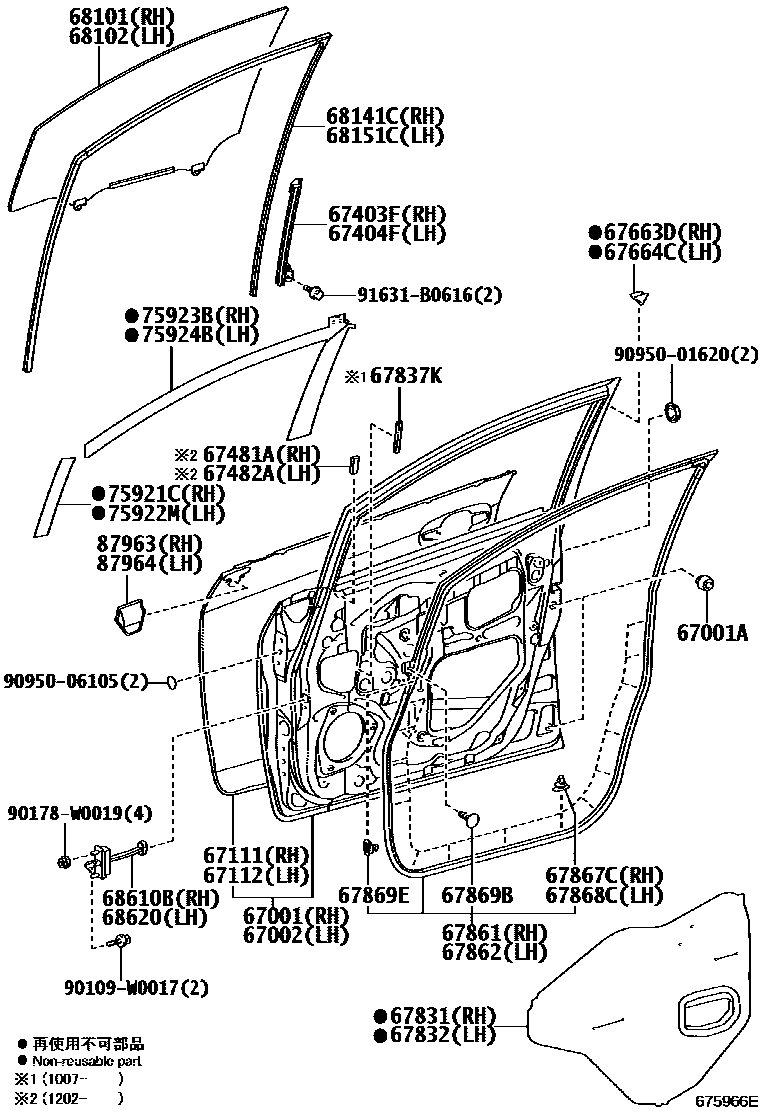

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0F020iZGR21..RHD..CVT..ENTRY201007-201111

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iAUR2#,WAR20,ZGR2#201211-201503

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0F020iWAR20,ZGR2#201503

67111PANEL, FRONT DOOR, OUTER RH

main67111-0F020iAUR2#,ZGR2#200902-201007

67112PANEL, FRONT DOOR, OUTER LH

main67112-0F020iAUR2#,ZGR2#200902-201007

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-64010iAUR2#,ZGR2#200902-201007

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-64010iAUR2#,ZGR2#200902-201007

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-0F020iAUR2#,WAR20,ZGR2#201211-201503

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-0F020iWAR20,ZGR2#201503

67663DGARNISH, DOOR FRAME, RH

main67663-48010iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

67664CGARNISH, DOOR FRAME, LH

main67664-48010iAUR2#,ZGR2#200902-201007

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0F020iAUR2#,ZGR2#200902-201007

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0F020iAUR2#,WAR20,ZGR2#201211-201503

67837KSEAL, FRONT DOOR VENT

main67845-0F010×2iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0F020iAUR2#,WAR20,ZGR2#201211-201503

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0F020iAUR2#,ZGR2#200902-201007

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×14iAUR2#,WAR20,ZGR2#201211-201503

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×14iAUR2#,ZGR2#200902-201007

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×2iZGR21..RHD..CVT..ENTRY201007-201111

67869ECLIP, FRONT DOOR WEATHERSTRIP

main90467-04034×2iAUR2#,ZGR2#200902-201007

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0F020iAUR2#,ZGR2#200902-201007

*TEM,T=3.5,GREEN

main68101-0F021iAUR2#,WAR20,ZGR2#201308-201503

*TEM,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0F020iAUR2#,ZGR2#200902-201007

*TEM,T=3.5,GREEN

main68102-0F021iAUR2#,WAR20,ZGR2#201308-201503

*TEM,T=3.5,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-0F020iAUR2#,ZGR2#200902-201007

68151CRUN, FRONT DOOR GLASS, LH

main68151-0F020iZGR21..RHD..CVT..ENTRY201007-201111

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0F010iAUR2#,ZGR2#200902-201007

main68610-0F011iAUR2#,WAR20,ZGR2#201211-201503

68620CHECK ASSY, FRONT DOOR, LH

main68610-0F010iAUR2#,ZGR2#200902-201007

main68610-0F011iZGR21..RHD..CVT..ENTRY201101-201111

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0F020iAUR2#,ZGR2#200902-201004

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0F020iZGR21..RHD..CVT..ENTRY201007-201111

75923BTAPE, BLACK OUT, NO.2 RH

main75923-0F020iAUR2#,ZGR2#200902-201004

75924BTAPE, BLACK OUT, NO.2 LH

main75924-0F020iZGR21..RHD..CVT..ENTRY201007-201111

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0F010iAUR2#,ZGR2#200902-201007

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0F010iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

90109W0017

main90109-W0017

90178W0019

main90178-W0019

9095001620

main90950-01620

9095006105

main90950-06105

91631B0616

main91631-B0616

37 parts on this diagram · 2 diagrams in section
