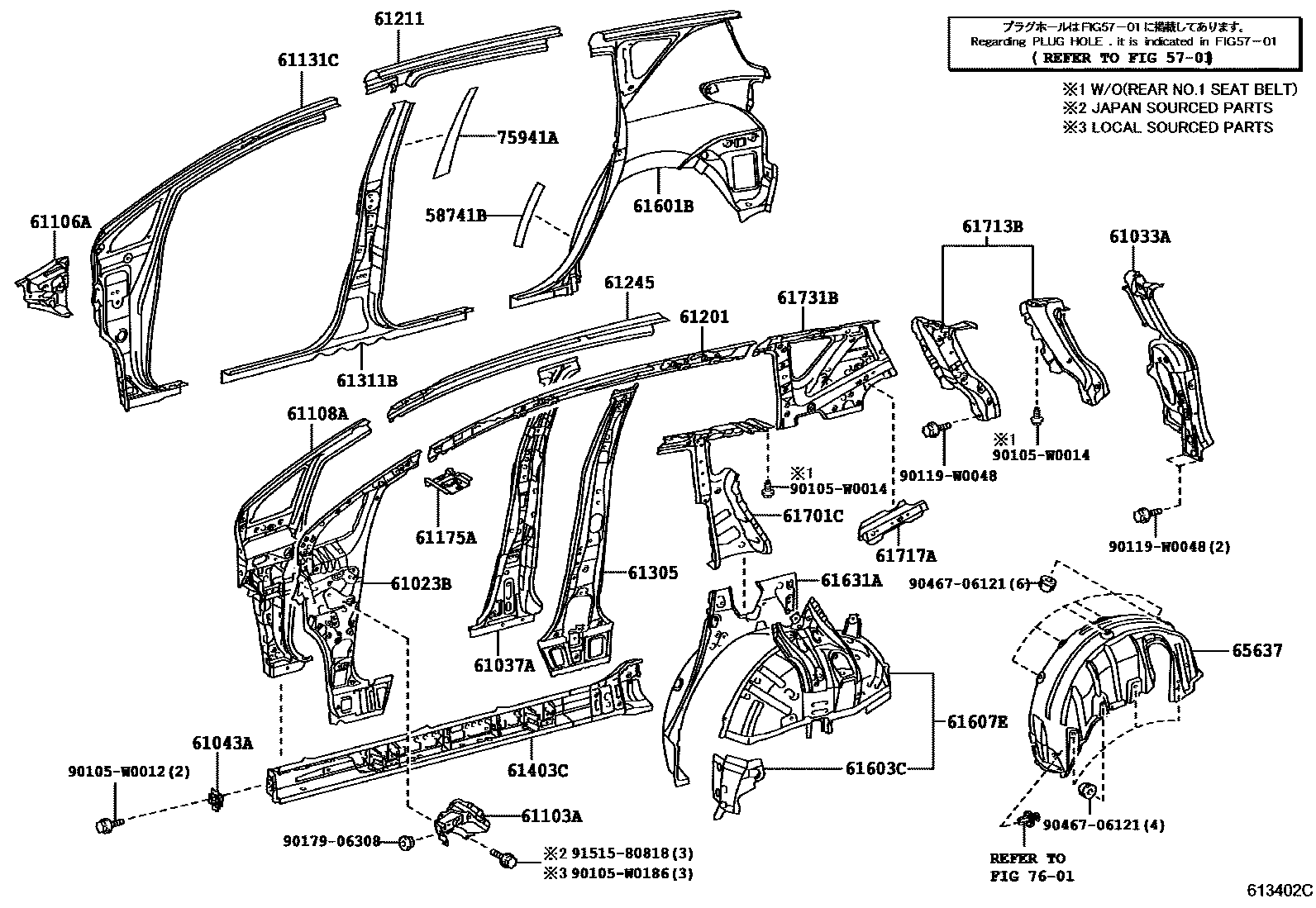

SIDE MEMBER
5701
58741BPROTECTOR, QUARTER PANEL, RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61043AEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61211RAIL, ROOF SIDE, OUTER RH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311BPILLAR, CENTER BODY, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61601BPANEL SUB-ASSY, QUARTER, RH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61701CPANEL SUB-ASSY, ROOF SIDE, OUTER RH
61713BREINFORCE, ROOF SIDE, OUTER RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61731BPANEL, ROOF SIDE, INNER RH
65637LINER, REAR WHEEL HOUSE, RH
75941ASTRIPE, CENTER PILLAR, RH
7601
90105W0012
main90105-W0012
90105W0014
main90105-W0014
90105W0186
main90105-W0186
90119W0048
main90119-W0048
9017906308
main90179-06308
9046706121
main90467-06121
9151580818
main91515-80818
35 parts on this diagram · 2 diagrams in section
