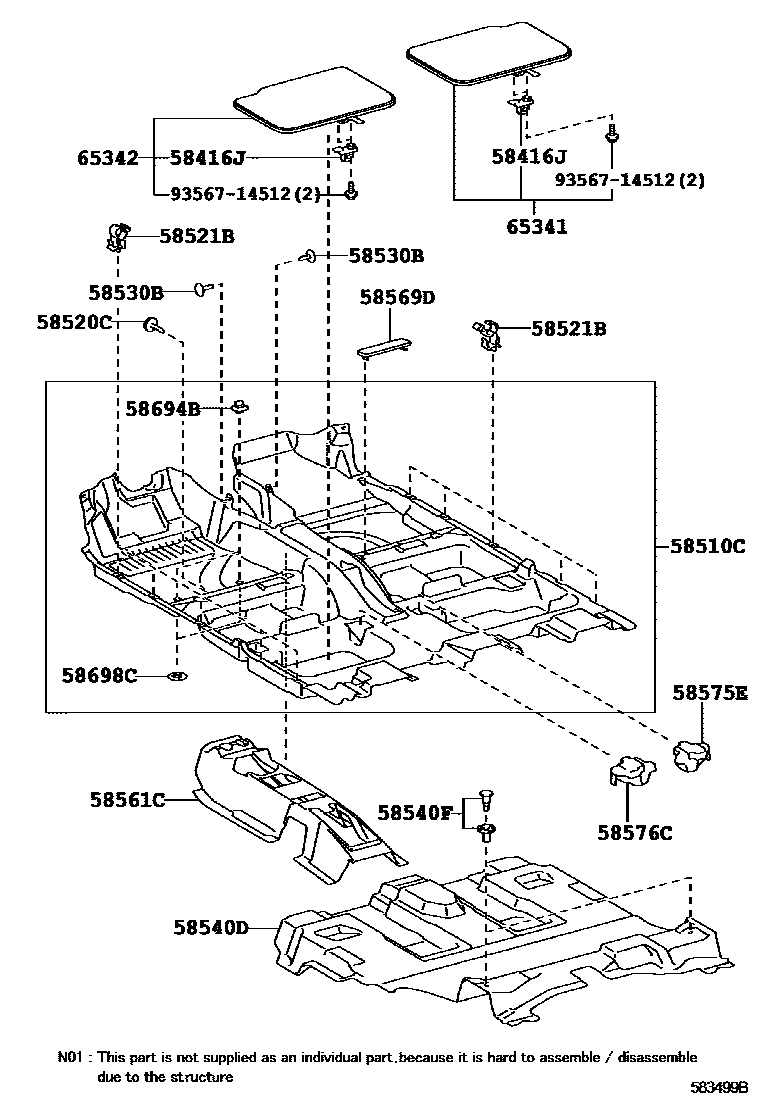

MAT & CARPET

0001 1 0002 1

58416JBRACKET, DECK BOARD, NO.1

main58416-52010×2iAUR2#,WAR20,ZGR2#201211-201503

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-0F040-B0iAUR2#,ZGR2#..LHD200902-201007

DK.GRAY,TRIM1#

main58510-0F060-B0iAUR2#,ZGR2#..RHD200902-201007

DK.GRAY,TRIM1#

main58510-0F061-B0iZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY201007-201211

DK.GRAY,TRIM1#

main58510-0F130-B0iAUR2#,WAR20,ZGR2#..RHD201211-201410

DK.GRAY,TRIM1#

main58510-0F131-B0iAUR2#,WAR20,ZGR2#..RHD201410-201503

DK.GRAY,TRIM1#

main58510-0F131-C0iWAR20,ZGR2#..RHD201504-201710

BLACK,TRIM1#

main58510-0F050-B0iZGR21..LHD..CVT200902-201007

7SEATS PACKAGE&COLD AREA SPEC,DK.GRAY,TRIM1#

main58510-0F051-B0supersedes 58510-0F041-B0iAUR2#,ZGR2#..LHD201007-201211

7SEATS PACKAGE&COLD AREA SPEC,DK.GRAY,TRIM1#

main58510-0F120-B0supersedes 58510-0F110-C0iWAR20,ZGR2#..LHD201503-201504

7SEATS PACKAGE&COLD AREA SPEC,DK.GRAY,TRIM1#

main58510-0F120-C0supersedes 58510-0F110-C0iWAR20,ZGR2#..LHD201504-201710

7SEATS PACKAGE&COLD AREA SPEC,BLACK,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7iWAR20,ZGR2#201503-201710

DK.GRAY

58521BHOOK, FLOOR CARPET

main58521-02050×10iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-W0006-B3×2iAUR2#,ZGR2#200902-201007

DK.GRAY

58540DCARPET ASSY, FLOOR, REAR

main58581-0F030-B0iAUR2#,ZGR2#200902-201007

DK.GRAY,TRIM1#

main58581-0F040-B0iZGR21..LHD..CVT200902-201007

7SEATS PACKAGE&COLD AREA SPEC,DK.GRAY,TRIM1#

58540FCLIP(FOR REAR FLOOR CARPET)

main90467-10210×2iAUR2#,ZGR2#200902-201007

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02120iAUR2#,ZGR2#200902-200906

main58561-02121iAUR2#,ZGR2#200907-201007

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02030-B0iAUR2#,ZGR2#200902-201007

DK.GRAY

58575EPAD, FRONT FLOOR, REAR NO.1

main58575-0F010-B0iAUR2#,ZGR2#200902-201007

DK.GRAY,TRIM1#

main58575-0F010-C0iWAR20,ZGR2#201503-201710

BLACK,TRIM1#

58576CPAD, FRONT FLOOR, REAR NO.2

main58576-0F010-B0iAUR2#,ZGR2#200902-201007

DK.GRAY,TRIM1#

main58576-0F010-C0iWAR20,ZGR2#201503-201710

BLACK,TRIM1#

58694BPLATE, MAT SET, UPPER

main58694-76010×2iAUR2#,WAR20,ZGR2#201211-201503

58698CPLATE, MAT SET, LOWER

main58698-76010×2iAUR2#,WAR20,ZGR2#201211-201503

65341BOARD, FLOOR, NO.1

main65341-0F010-B0iAUR2#,ZGR2#200902-201007

DK.GRAY,TRIM1#

main65341-0F010-C0iWAR20,ZGR2#201504-201710

BLACK,TRIM1#

65342BOARD, FLOOR, NO.2

main65342-0F010-B0iAUR2#,ZGR2#200902-201007

DK.GRAY,TRIM1#

main65342-0F010-C0iWAR20,ZGR2#201504-201710

BLACK,TRIM1#

9356714512

main93567-14512

16 parts on this diagram · 2 diagrams in section
