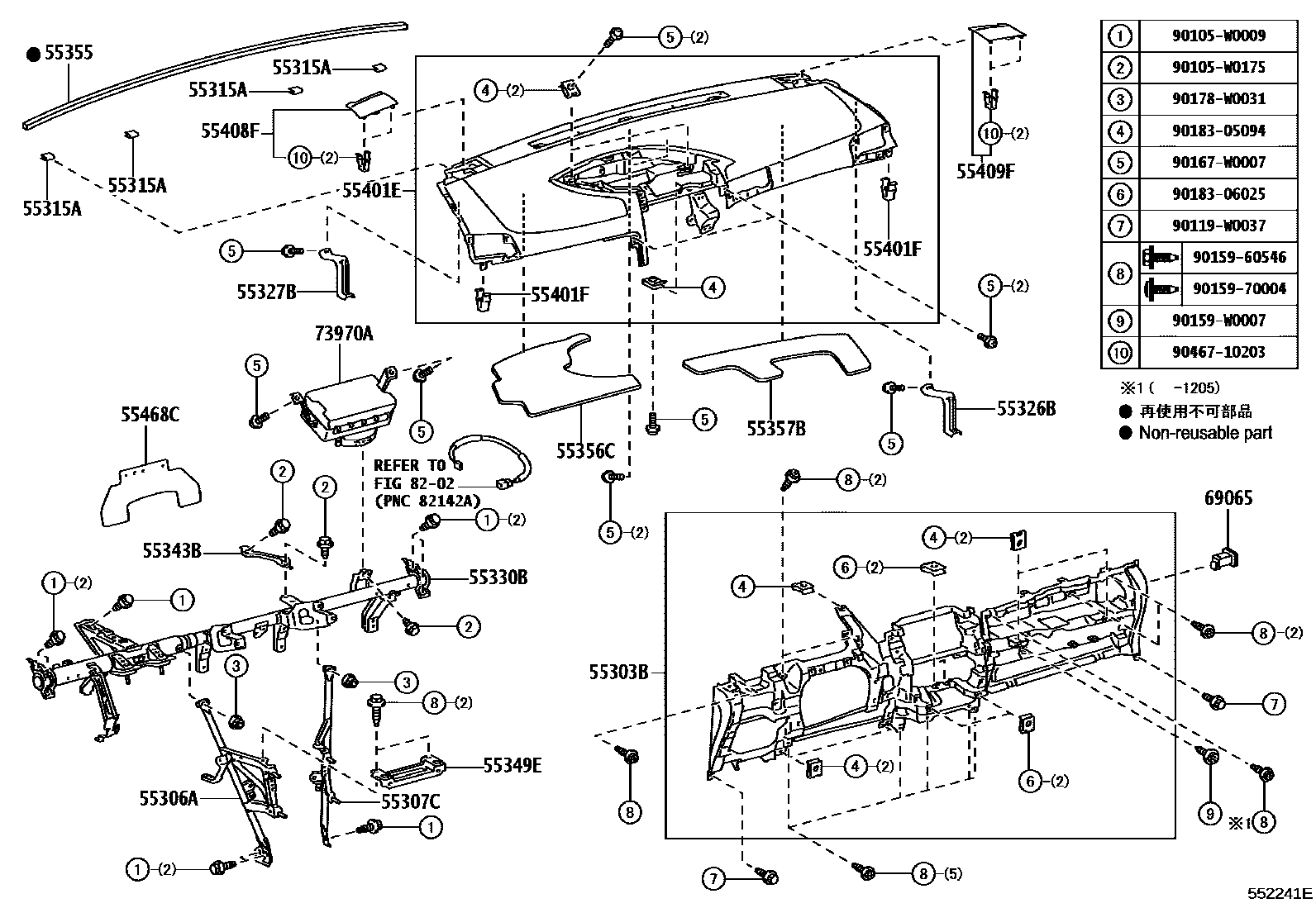

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0F030-B0iAUR2#,ZGR2#..LHD200902-201007

DK.GRAY,TRIM1#

main55303-0F040-B0iAUR2#,WAR20,ZGR2#..RHD201211-201503

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0F030iAUR2#,WAR20,ZGR2#..LHD201211-201503

main55306-0F040iWAR20,ZGR2#..RHD201503

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02081iAUR2#,ZGR2#..LHD200902-201007

main55307-02091iWAR20,ZGR2#..RHD201503

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-02450×4iWAR20,ZGR2#201611

main55315-05050×4iWAR20,ZGR2#201503-201610

55326BSTAY, INSTRUMENT PANEL, RH

main55326-0F010iZGR21..RHD..CVT..ENTRY201007-201111

55327BSTAY, INSTRUMENT PANEL, LH

main55327-0F010iAUR2#,WAR20,ZGR2#201211-201503

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0F030iAUR2#,WAR20,ZGR2#..LHD201211-201503

main55330-0F031iWAR20,ZGR2#..LHD201503

main55330-0F040iAUR2#,WAR20,ZGR2#..RHD201211-201503

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-02060iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

55349EBRACKET, INSTRUMENT PANEL BRACE MOUNTING, LOWER

main55349-02101iAUR2#,WAR20,ZGR2#201211-201503

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-02090iAUR2#,WAR20,ZGR2#..LHD201211-201503

main55355-02120iWAR20,ZGR2#..RHD201503-201605

main55355-02570iWAR20,ZGR2#..LHD201606

main55355-02580iWAR20,ZGR2#..RHD201606

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0F030iAUR2#,ZGR2#200902-201007

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-0F080iAUR2#,ZGR2#200902-201007

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-0F010-B0iAUR2#,ZGR2#..LHD200902-201007

DK.GRAY,TRIM1#

main55400-0F011-B0iWAR20,ZGR2#..LHD201503-201601

DK.GRAY,TRIM1#

main55400-0F020-B0iAUR2#,ZGR2#..RHD200902-201007

DK.GRAY,TRIM1#

main55400-0F021-B0iAUR2#,ZGR2#..RHD201209-201211

DK.GRAY,TRIM1#

main55400-0F040-B0iAUR2#,ZGR2#..LHD201112-201209

DK.GRAY,TRIM1#

main55400-0F050-B0iAUR2#,ZGR2#..RHD201112-201209

DK.GRAY,TRIM1#

main55400-0F060-B0iWAR20,ZGR2#..LHD201601-201710

DK.GRAY,TRIM1#

main55400-0F070-B0iWAR20,ZGR2#..RHD201601-201710

DK.GRAY,TRIM1#

55401FCLIP(FOR SAFETY PAD)

main90467-12080×2iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-0F020-B0iZGR21..RHD..CVT..ENTRY201007-201111

DK.GRAY,TRIM1#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-0F020-B0iAUR2#,ZGR2#200902-201007

DK.GRAY,TRIM1#

55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55468-64010iWAR20,ZGR2#201503

69065CYLINDER SUB-ASSY, AIRBAG CUT OFF SW

main69065-02010iWAR20,ZGR2#201503

main69065-0D020iAUR2#,ZGR2#201204-201210

main69065-12400iAUR2#,ZGR2#200902-201002

main69065-12450iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201204

sub69065-12460

main69065-05050iAUR2#,ZGR2#..E201204-201211

HIGH PACKAGE

main69065-47040iAUR2#,ZGR2#..E201007-201111

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

sub69065-12460

main69065-53010iAUR2#,ZGR2#..E200902-201002

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

sub69065-12460

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0F030iAUR2#,ZGR2#200902-201007

main73970-0F031iWAR20,ZGR2#201503

8202

90105W0009

main90105-W0009

90105W0175

main90105-W0175

90119W0037

main90119-W0037

9015960546

main90159-60546

9015970004

main90159-70004

90159W0007

main90159-W0007

90167W0007

main90167-W0007

90178W0031

main90178-W0031

9018305094

main90183-05094

9018306025

main90183-06025

9046710203

main90467-10203

31 parts on this diagram · 8 diagrams in section
