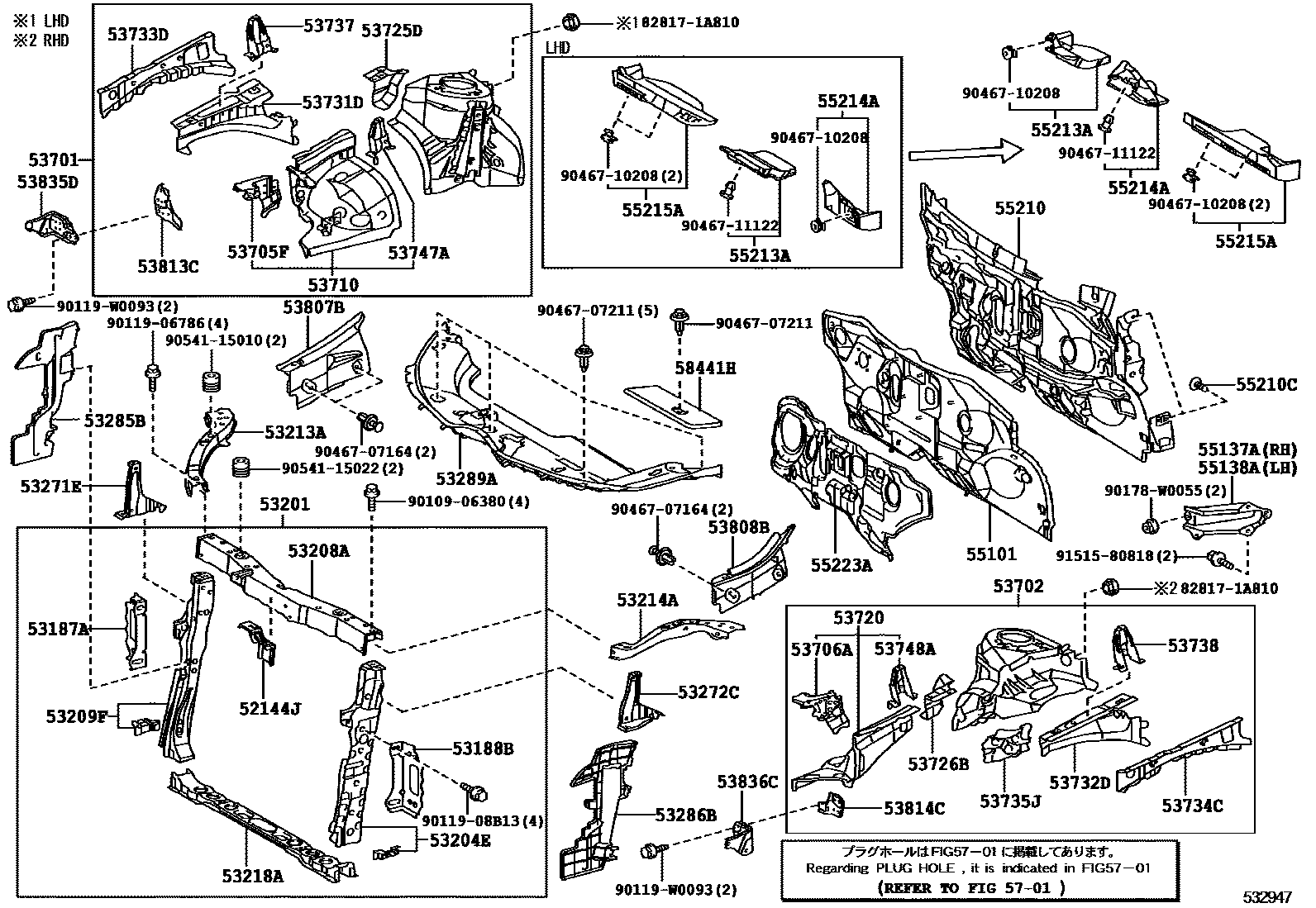

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

52144JSTAY, FRONT BUMPER, CENTER

main52085-0F010iZGR21..RHD..CVT..ENTRY201007-201111

53187ASTAY, RADIATOR SUPPORT, RH

main53187-02010iAUR2#,ZGR2#200902-201007

53188BSTAY, RADIATOR SUPPORT, LH

main53188-02010iAUR2#,ZGR2#200902-201007

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0F912iAUR2#,ZGR2#200902-201007

sub53187-12030

sub53188-12030

sub90119-08B13

main53205-0F900iAUR2#,WAR20,ZGR2#201211-201503

53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH

main53204-02010iAUR2#,ZGR2#200902-201007

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-02140iAUR2#,ZGR2#200902-201007

53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH

main53209-02040iAUR2#,ZGR2#200902-201007

53213ASUPPORT, RADIATOR, UPPER RH

main53202-0F030iAUR2#,ZGR2#200902-201007

53214ASUPPORT, RADIATOR, UPPER LH

main53214-0F020iAUR2#,ZGR2#200902-201007

53218ASUPPORT, RADIATOR, LOWER

main53218-02901iAUR2#,ZGR2#200902-201007

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-0F010iAUR2#,ZGR2#200902-201007

main53271-0F040iAUR2#,WAR20,ZGR2#201211-201503

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-0F030iAUR2#,ZGR2#200902-201007

main53272-0F080iAUR2#,WAR20,ZGR2#201211-201503

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-0F050iAUR2#,ZGR2#200902-201007

main53285-0F090iAUR2#,WAR20,ZGR2#201211-201503

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-0F050iAUR2#,ZGR2#200902-201007

main53286-0F090iAUR2#,WAR20,ZGR2#201211-201503

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-0F030iZGR21..RHD..CVT..ENTRY201007-201111

main53289-0F050iAUR2#,ZGR2#201211-201302

sub53510-0F053

sub53510-0F063

main53289-0F051iAUR2#,WAR20,ZGR2#201302-201503

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0F030iAUR2#,ZGR2#200902-201007

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0F020iAUR2#,ZGR2#200902-201007

53705FBRACE SUB-ASSY, FENDER APRON, RH

main53705-0F030iAUR2#,ZGR2#200902-201007

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-0F020iAUR2#,ZGR2#200902-201007

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53710-0F900iAUR2#,ZGR2#200902-201007

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53720-0F900iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-02010iAUR2#,ZGR2#200902-201007

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-02010iAUR2#,ZGR2#200902-201007

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-02020iAUR2#,ZGR2#200902-201007

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-02020iAUR2#,ZGR2#200902-201007

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-02010iZGR21..RHD..CVT..ENTRY201007-201111

(L)

main53733-12070iWAR20,ZGR2#201503

(J)

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-02010iWAR20,ZGR2#201503

(L)

main53734-12070iZGR21..RHD..CVT..ENTRY201007-201111

(J)

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-02010iAUR2#,ZGR2#200902-201007

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-0F030iAUR2#,ZGR2#200902-201007

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-0F020iAUR2#,ZGR2#200902-201007

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-0F020iAUR2#,ZGR2#200902-201007

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-0F020iAUR2#,ZGR2#200902-201007

53807BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-0F010iAUR2#,ZGR2#200902-201007

53808BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-0F010iAUR2#,ZGR2#200902-201007

53813CEXTENSION, FRONT FENDER, RH

main53813-05020iAUR2#,ZGR2#200902-201007

53814CEXTENSION, FRONT FENDER, LH

main53814-05020iAUR2#,ZGR2#200902-201007

53835DBRACKET, FRONT SIDE PANEL, RH

main53803-0F010iWAR20,ZGR2#201503

main53835-0F010iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

53836CBRACKET, FRONT SIDE PANEL, LH

main53804-0F010iAUR2#,WAR20,ZGR2#201312-201503

main53836-0F010iAUR2#,ZGR2#201211-201312

55101PANEL SUB-ASSY, DASH

main55101-02670iZGR21..RHD..CVT..ENTRY201007-201111

main55101-02680iAUR20,WAR20,ZGR2#..RHD..6F201211-201503

main55101-02720iAUR21,ZGR21..LHD..(ATM,CVT)201211-201503

main55101-02730iWAR20,ZGR2#..LHD..6F201503-201710

55137ABRACE, DASH TO FRAME, RH

main55137-02010iAUR2#,ZGR2#200902-201007

main55137-02011iAUR2#,WAR20,ZGR2#201306-201503

55138ABRACE, DASH TO FRAME, LH

main55138-02010iAUR2#,ZGR2#200902-201007

main55138-02011iAUR2#,WAR20,ZGR2#201306-201503

55210INSULATOR ASSY, DASH PANEL

main55210-0F030iAUR2#,ZGR2#..LHD201007-201211

main55210-0F040iAUR2#,ZGR2#..RHD200902-201007

main55210-0F060iAUR2#,WAR20,ZGR2#..LHD201211-201503

main55210-0F070iAUR2#,WAR20,ZGR2#..RHD201211-201410

main55210-0F071iAUR2#,WAR20,ZGR2#..RHD201410-201503

55210CCLIP

main90467-08186-C0×4iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

BLACK

main90467-08186-C3×4iWAR20,ZGR2#201610-201710

BLACK

55213APAD, DASH PANEL SILENCER

main55213-02220iWAR20,ZGR2#..RHD201503

main55213-0F030iAUR2#,ZGR2#..LHD201007-201211

main55213-0F040iZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY201007-201211

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-0F010iWAR20,ZGR2#..LHD201503

main55214-0F020iAUR2#,WAR20,ZGR2#..RHD201211-201503

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-02010iAUR2#,ZGR2#..LHD200902-201007

main55215-02020iAUR2#,WAR20,ZGR2#..RHD201211-201503

55223AINSULATOR, DASH PANEL, OUTER

main55223-02120iAUR2#,WAR20,ZGR2#..LHD201211-201503

main55223-02160iWAR20,ZGR2#..RHD201503

5701

58441HCOVER, BATTERY SERVICE HOLE

main58441-02010iAUR2#,ZGR2#200902-201007

sub58441-12010

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9010906380

main90109-06380

9011906786

main90119-06786

9011908B13

main90119-08B13

90119W0093

main90119-W0093

90178W0055

main90178-W0055

9046707164

main90467-07164

9046707211

main90467-07211

9046710208

main90467-10208

9046711122

main90467-11122

9054115010

main90541-15010

9054115022

main90541-15022

9151580818

main91515-80818

62 parts on this diagram · 3 diagrams in section
