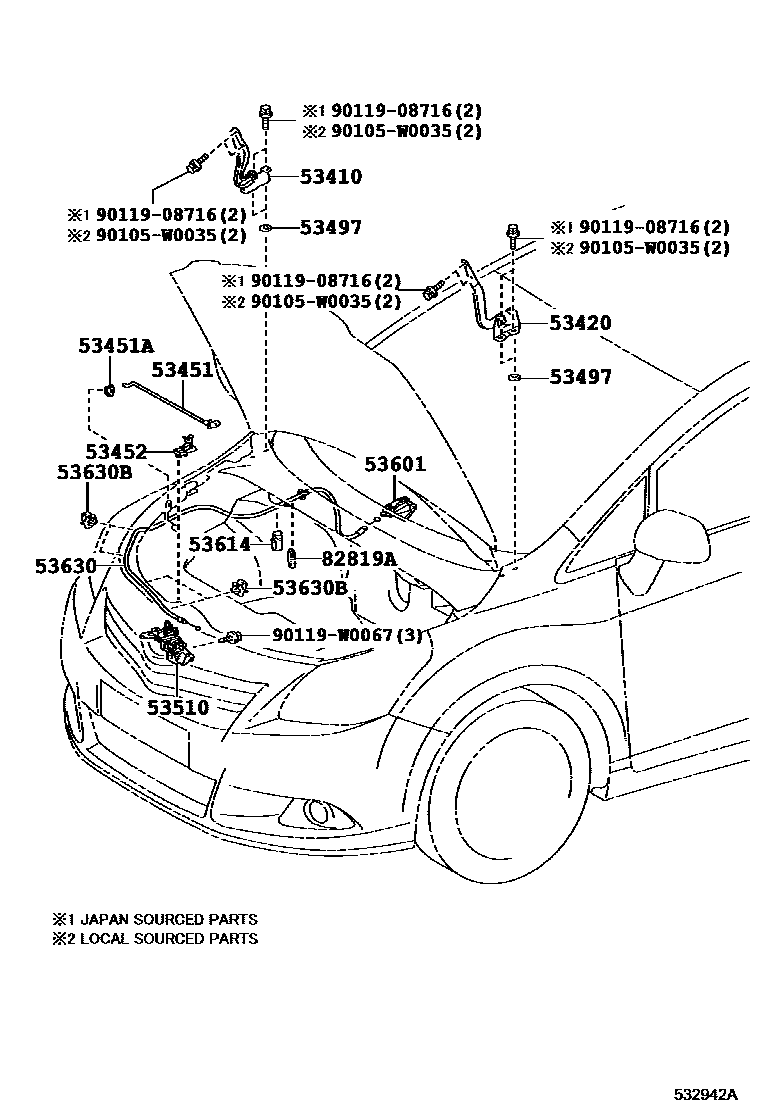

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0F030iZGR21..RHD..CVT..ENTRY200902-201503

53420HINGE ASSY, HOOD, LH

main53420-0F030iAUR2#,ZGR2#200902-201503

53451ROD, HOOD SUPPORT

main53440-0F020iAUR2#,ZGR2#200902-201503

53451AGROMMET(FOR HOOD SUPPORT ROD)

main53454-52010iAUR2#,ZGR2#200902-201503

53452HOLDER, HOOD STAY

main53452-02040iZGR21..RHD..CVT..ENTRY200902-201503

53497PAD, HOOD HINGE, NO.1

main53497-05010iAUR2#,WAR20,ZGR2#200902-201503

T=1.0

53510LOCK ASSY, HOOD

main53510-0F050iAUR2#,ZGR2#..LHD200902-201105

sub53510-0F051

main53510-0F051iAUR2#,ZGR2#..LHD201106-201202

sub53510-0F052

main53510-0F052iAUR2#,ZGR2#..LHD201203-201301

sub53510-0F053

main53510-0F053iAUR2#,ZGR2#..LHD201302-201306

sub53510-0F054

main53510-0F054iZGR2#..LHD201307-201503

main53510-0F060iAUR2#,ZGR2#..RHD200902-201105

sub53510-0F061

main53510-0F061iZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY201106-201202

sub53510-0F062

main53510-0F062iAUR2#,ZGR2#..RHD201203-201301

sub53510-0F063

main53510-0F063iAUR2#,ZGR2#..RHD201302-201306

sub53510-0F064

main53510-0F064iWAR20;AUR2#,ZGR2#..RHD201307-201503

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-B0iAUR2#,ZGR2#200902-201710

DK.GRAY,TRIM1#

sub53601-05030

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-05010iAUR2#,ZGR2#200902-201503

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0F020iAUR2#,ZGR2#..LHD200902-201503

main53630-0F030iZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY200902-201503

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iAUR2#,ZGR2#200902-201503

82819AGROMMET, WIRE

main82817-1A810iAUR2#,ZGR2#200902-201503

90105W0035

main90105-W0035

9011908716

main90119-08716

90119W0067

main90119-W0067

15 parts on this diagram · 1 diagram in section
