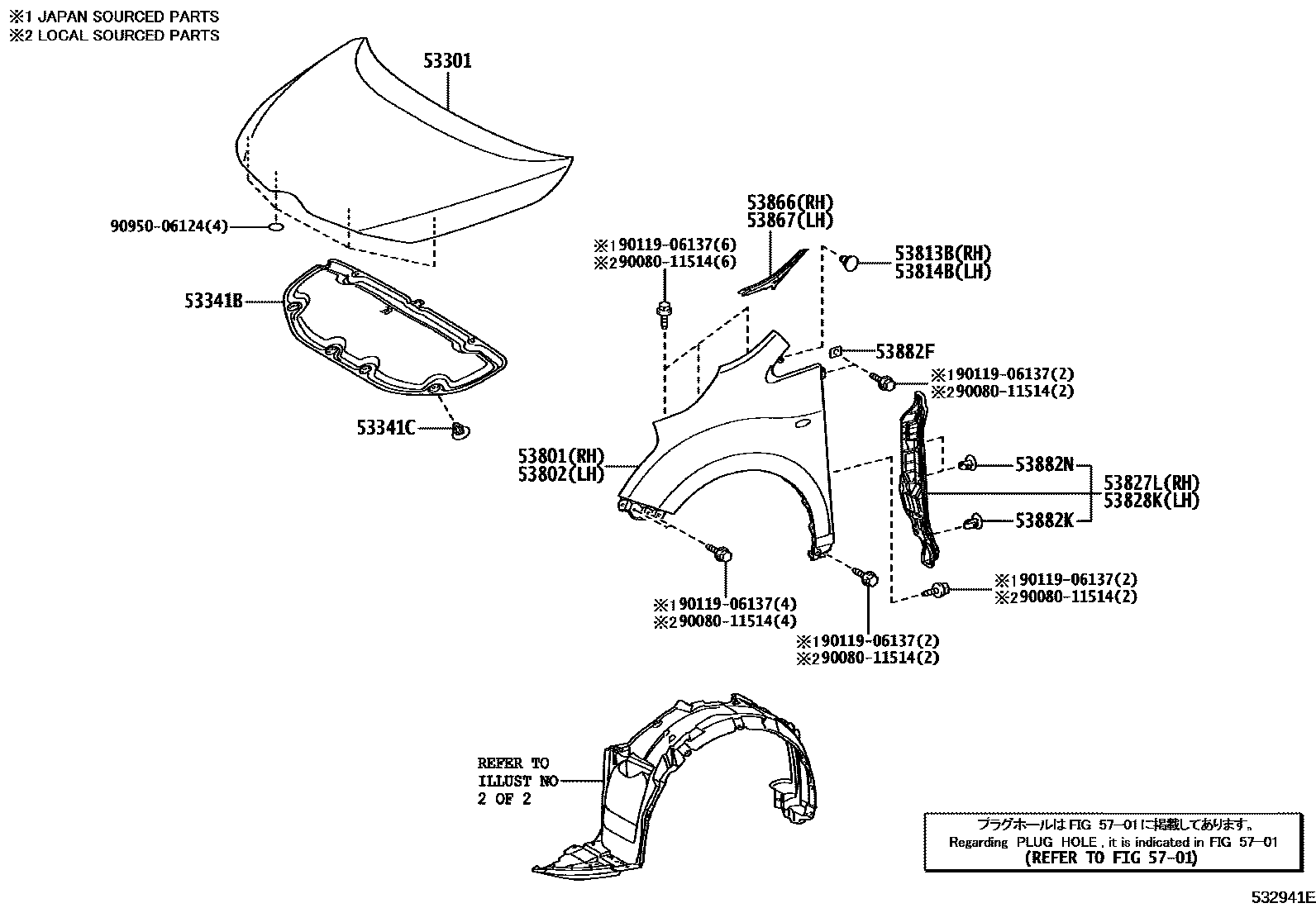

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53301HOOD SUB-ASSY

main53301-0F020iAUR2#,ZGR2#200902-201710

53341BINSULATOR, HOOD

main53341-0F020iAUR2#,WAR20,ZGR2#200902-201503

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZGR21..RHD..CVT..ENTRY¥120200902-201503

(J)

main90467-W0003iWAR20,ZGR2#¥130200902-201503

(L)

53801FENDER SUB-ASSY, FRONT RH

main53811-0F020iAUR2#,ZGR2#200902-201211

main53811-0F040iAUR2#,WAR20,ZGR2#201211-201503

53802FENDER SUB-ASSY, FRONT LH

main53812-0F020iAUR2#,ZGR2#200902-201211

main53812-0F040iAUR2#,WAR20,ZGR2#201211-201503

53813BEXTENSION, FRONT FENDER, RH

main53813-52020iAUR2#,ZGR2#¥160200902-201503

53814BEXTENSION, FRONT FENDER, LH

main53813-52020iAUR2#,ZGR2#¥160200902-201503

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0F020iAUR2#,ZGR2#200902-201503

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0F020iZGR21..RHD..CVT..ENTRY200902-201503

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0F020iAUR2#,ZGR2#200902-201503

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0F020iAUR2#,ZGR2#200902-201503

53882FSEAL, FRONT FENDER

main53882-16030iAUR2#,ZGR2#¥60200902-201503

53882KSEAL, FRONT FENDER

main53882-42020iAUR2#,ZGR2#¥90200902-201503

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-06205-C0iAUR2#,ZGR2#200902-201710

BLACK

5701

9008011514

main90080-11514¥110

9011906137

main90119-06137¥70

9095006124

main90950-06124¥90

18 parts on this diagram · 3 diagrams in section
