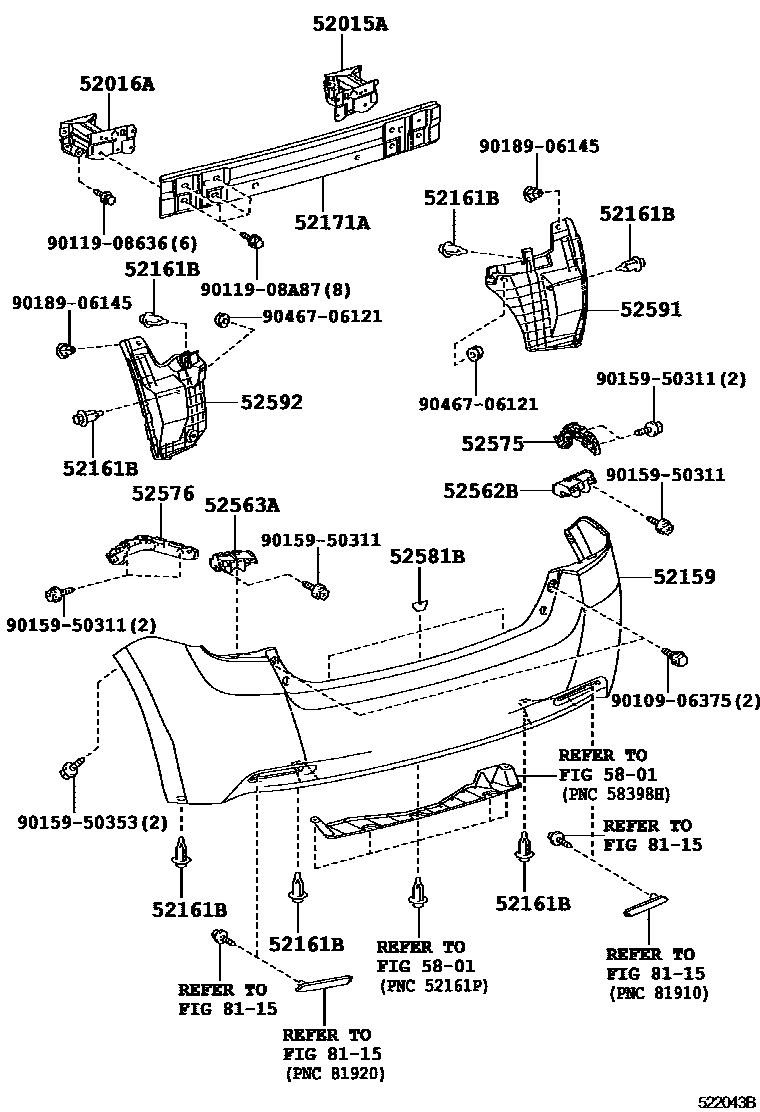

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-0F020iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY200902-201503

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-0F020iWAR20,ZGR2#200902-201503

52159COVER, REAR BUMPER

main52159-0F907iAUR2#,ZGR2#200902-201211

PAINT REQ.

main52159-0F911iAUR2#,WAR20,ZGR2#201211-201710

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02030iAUR2#,ZGR2#¥140200902-201503

(L)

main52161-16010iAUR2#,ZGR2#¥120200902-201503

(J)

sub52161-0K040¥120

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-02140iAUR2#,ZGR2#200902-201104

main52171-02080iZGR21..RHD..CVT..ENTRY¥7,700201104-201503

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-0F020iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY200902-201503

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-0F020iAUR2#,ZGR2#200902-201503

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0F020iAUR2#,ZGR2#200902-201503

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0F020iAUR2#,ZGR2#200902-201503

52581BPROTECTOR, REAR BUMPER

main52581-02020iAUR2#,ZGR2#¥300200902-201503

52591SEAL, REAR BUMPER SIDE, RH

main52591-0F010iAUR2#,ZGR2#200902-201503

52592SEAL, REAR BUMPER SIDE, LH

main52592-0F010iAUR2#,ZGR2#200902-201503

5801

8115

9010906375

main90109-06375¥80

9011908636

main90119-08636¥90

9011908A87

main90119-08A87¥100

9015950311

main90159-50311¥70

9015950353

main90159-50353¥60

9018906145

main90189-06145¥80

9046706121

main90467-06121¥220

21 parts on this diagram · 1 diagram in section
