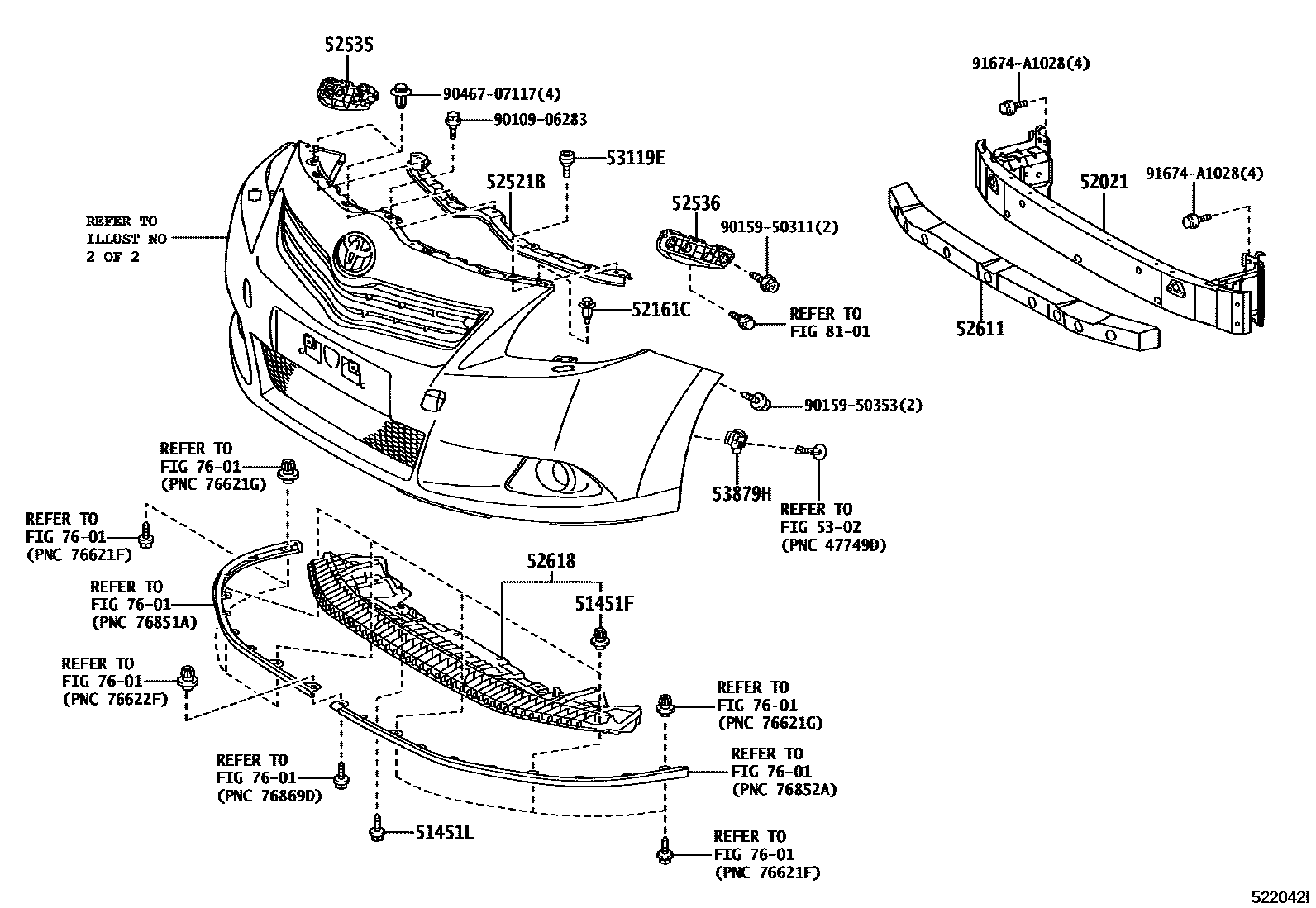

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

51451FGROMMET, NO.1

main90189-05144×4iAUR2#,WAR20,ZGR2#201211-201503

51451LBOLT, NO.1

main90119-06767×8iAUR2#,ZGR2#201007-201009

main90119-W0089×8iWAR20,ZGR2#201503-201710

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0F021iWAR20,ZGR2#201503-201710

52161CPIECE, FRONT BUMPER

main52161-02030×2iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

(L)

main52161-16010×2iAUR2#,WAR20,ZGR2#201211-201503

(J)

sub52161-0K040

52521BRETAINER, FRONT BUMPER, UPPER

main52521-0F010iWAR20,ZGR2#201503

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0F020iAUR2#,WAR20,ZGR2#201211-201503

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0F020iWAR20,ZGR2#201503

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0F010iAUR2#,ZGR2#200902-201007

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0F010iZGR21..RHD..CVT..ENTRY201007-201111

5302

53119EPROTECTOR, RADIATOR GRILLE

main53119-20120×2iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

53879HRETAINER, FRONT FENDER LINER

main53879-50020×2iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

7601

8101

9010906283

main90109-06283

9015950311

main90159-50311

9015950353

main90159-50353

9046707117

main90467-07117

91674A1028

main91674-A1028

19 parts on this diagram · 4 diagrams in section
